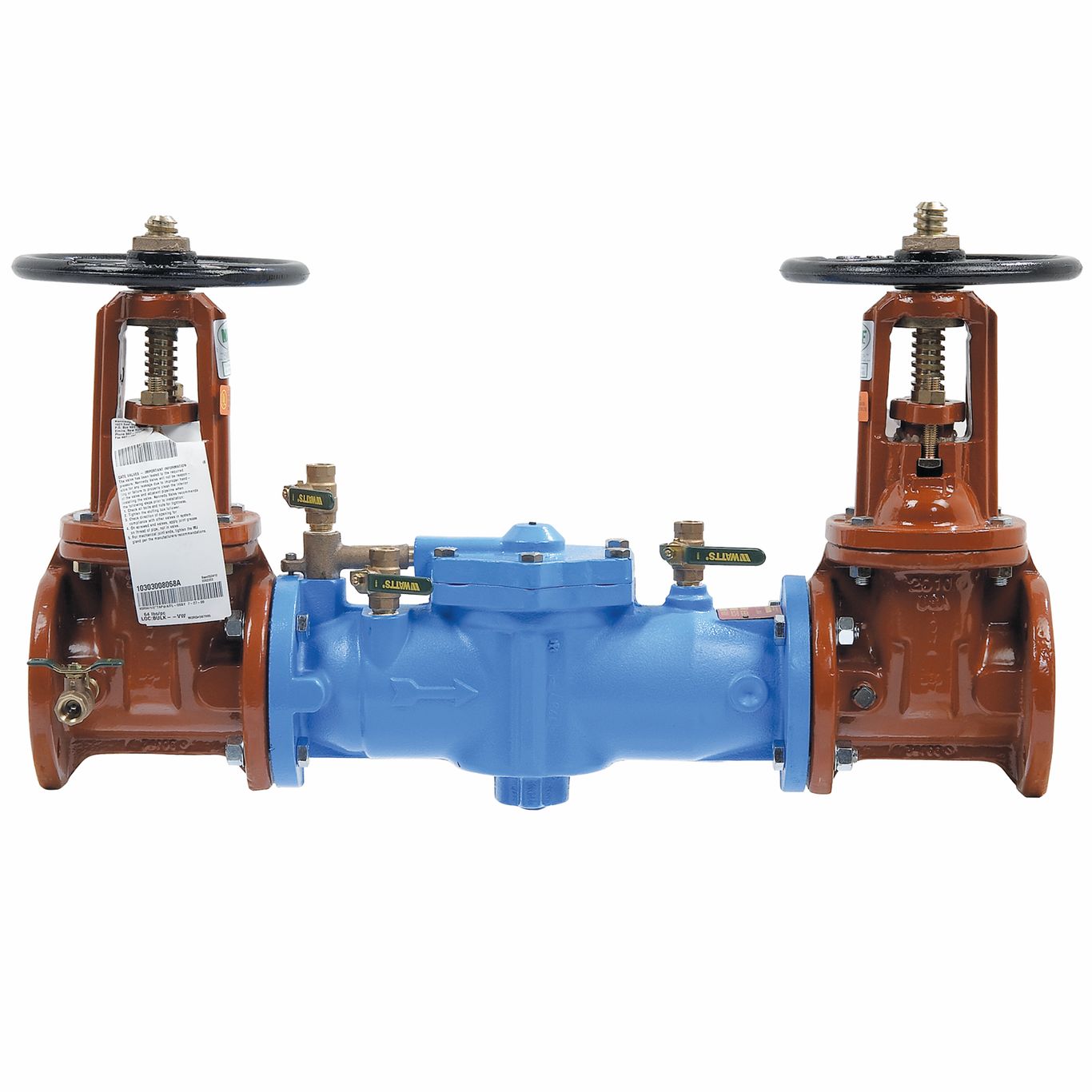

2 1/2 In Cast Iron Reduced Pressure Zone Backflow Preventer Assembly, OSY Shutoff, Lever Handles

This 2 1/2 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of an epoxy coated cast iron body construction, UL and FM outside stem and yoke resilient seated gate valves, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Features

• Single access cover and modular check construction for the ease of maintenance
• UL and FM outside stem and yoke resilient seated domestic gate valves
• Compact, space saving design
• Epoxy coated cast iron body furnished with an FDA epoxy coated strainer

IEZW100129
