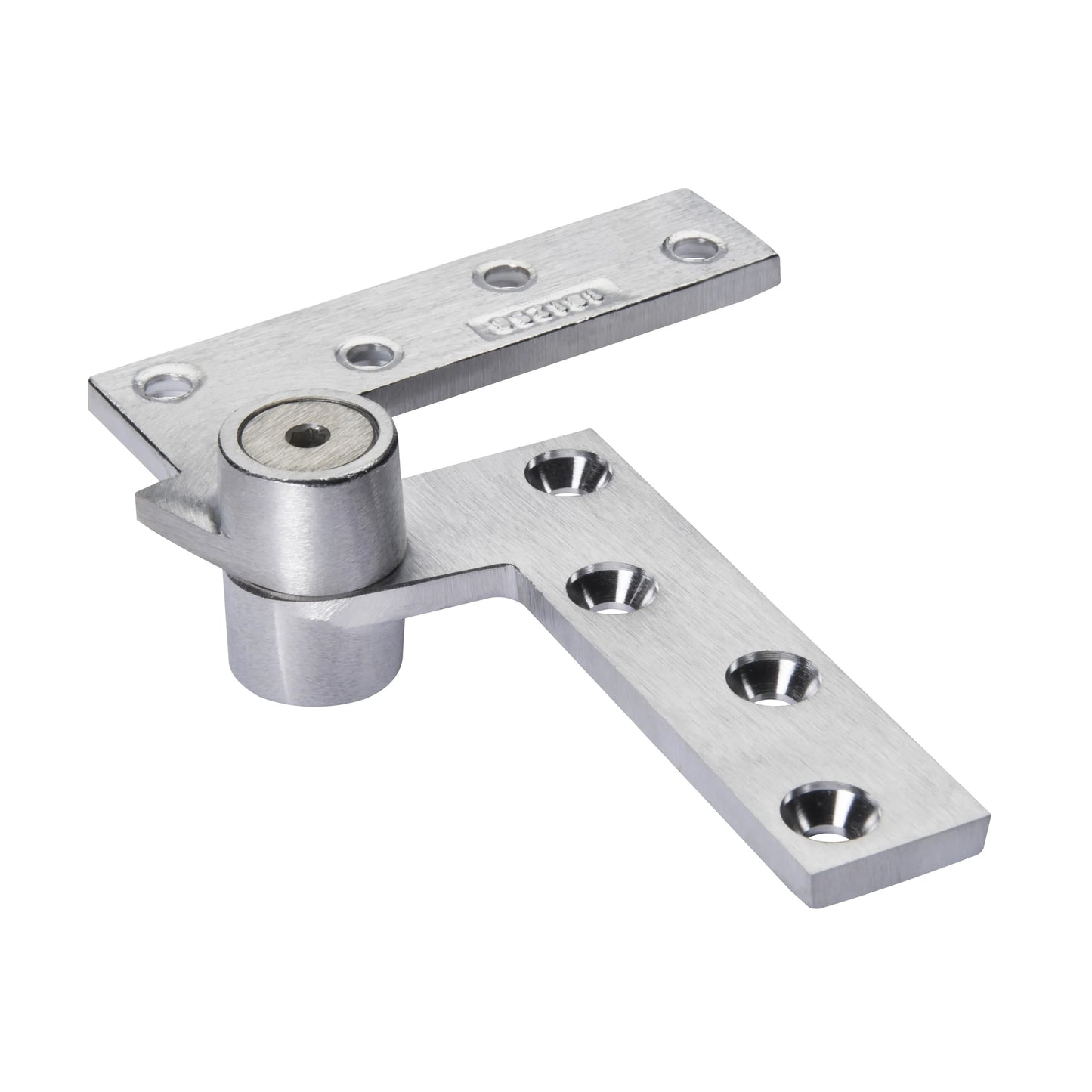

Norton Rixson 180 606 - Full Mortise Standard Top Pivot - Non Handed - Satin Brass

The Rixson 180 606 Full Mortise Standard Top Pivot is a durable, non-handed pivot designed for smooth and reliable door operation in commercial settings. Its full mortise design ensures a clean, recessed installation while maintaining structural integrity. Engineered to work with offset pivot sets, this top pivot helps distribute door weight effectively, reducing stress on the frame and extending the lifespan of the door system.

Features

• Full mortise
• Non-handed
• Standard top pivot for most offset pivot sets and floor closers
• Oil-impregnated sintered bronze bushing
• Non-ferrous base material
• Available for fire door assemblies (ferrous material) – specify F180
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Also available for 1-1/2" (38mm) offset
• Furnished with wood and machine screws
• Available with longer than standard pivot pins - increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
• For extra wide or high traffic applications, see H180 top pivot
• Hang Type: Offset hung
• Warranty: 2-year limited warranty
