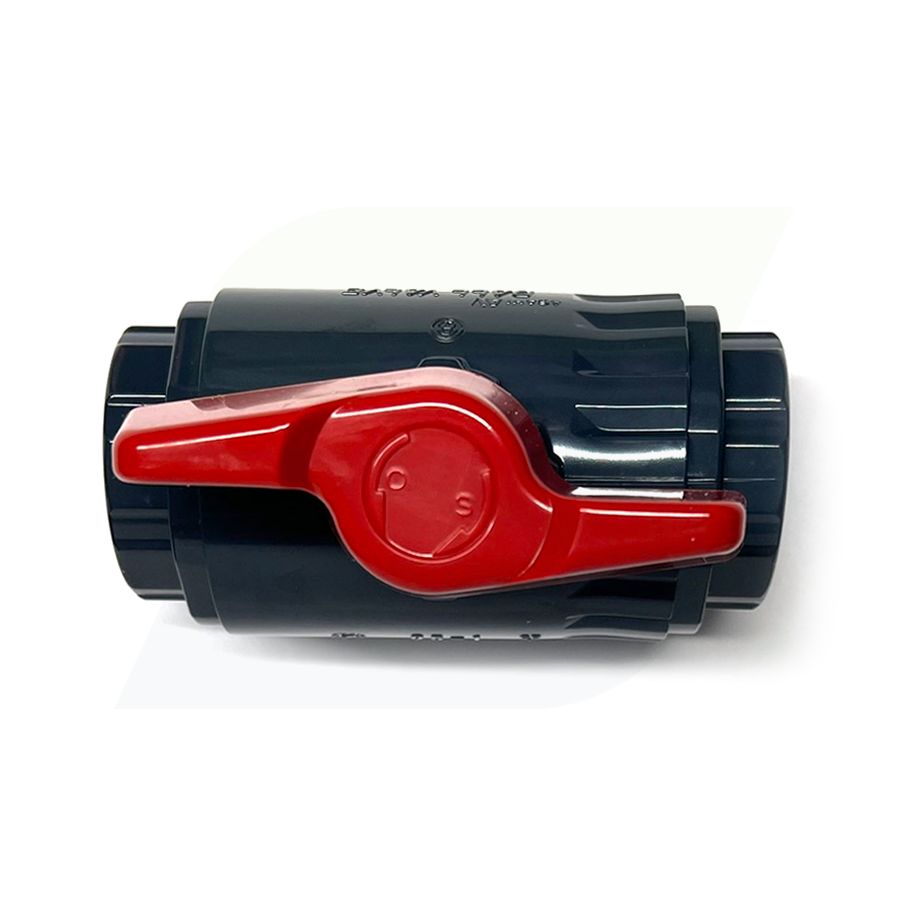

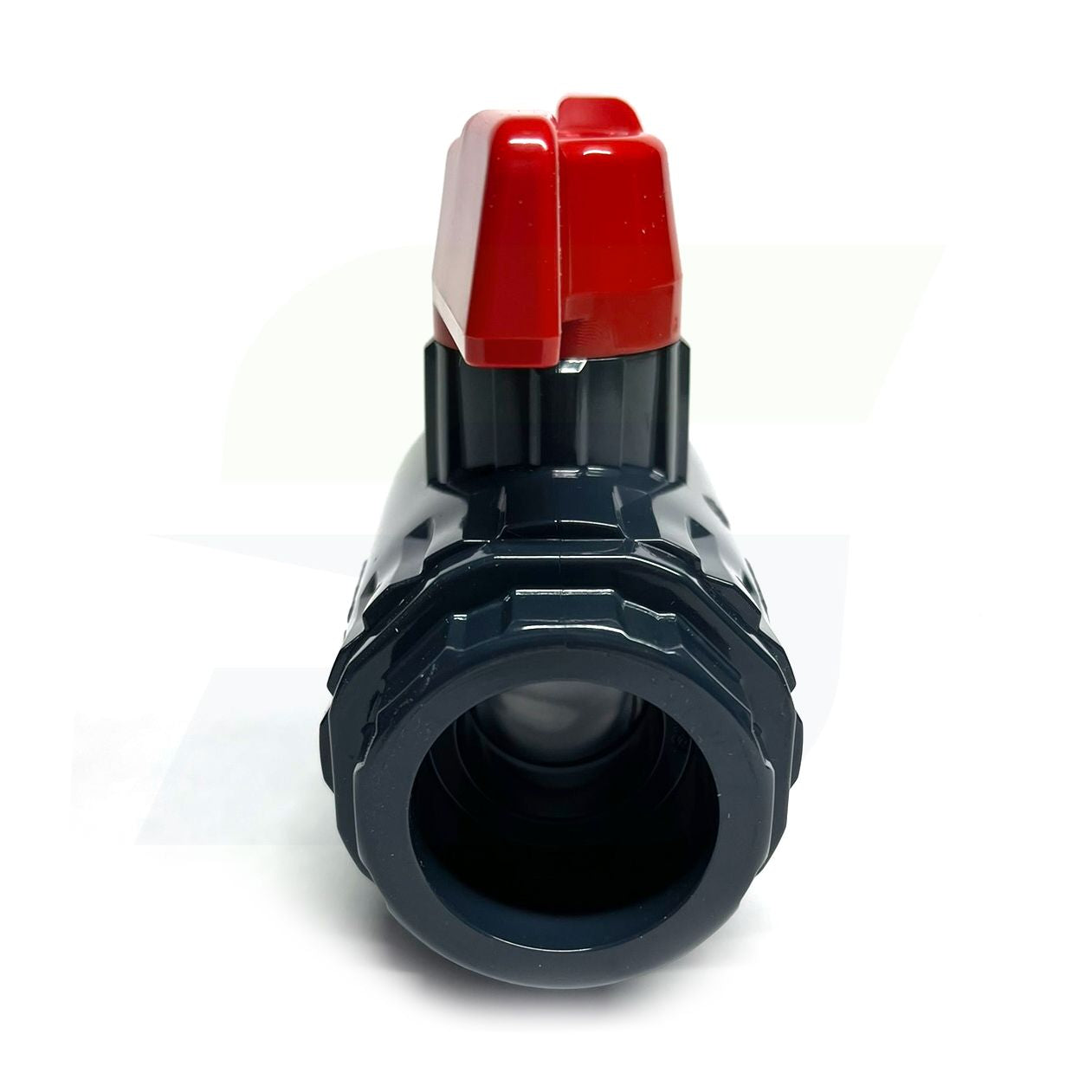

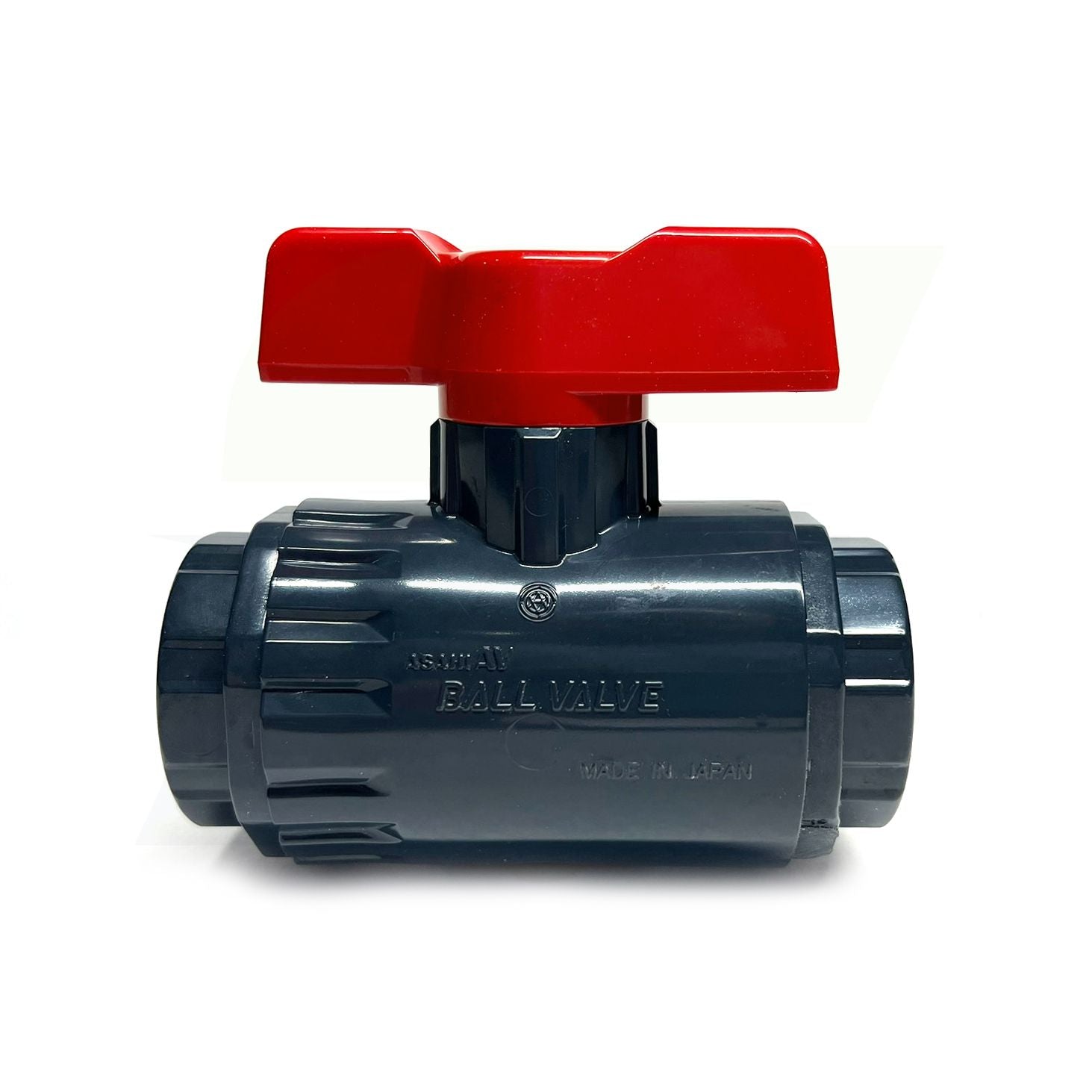

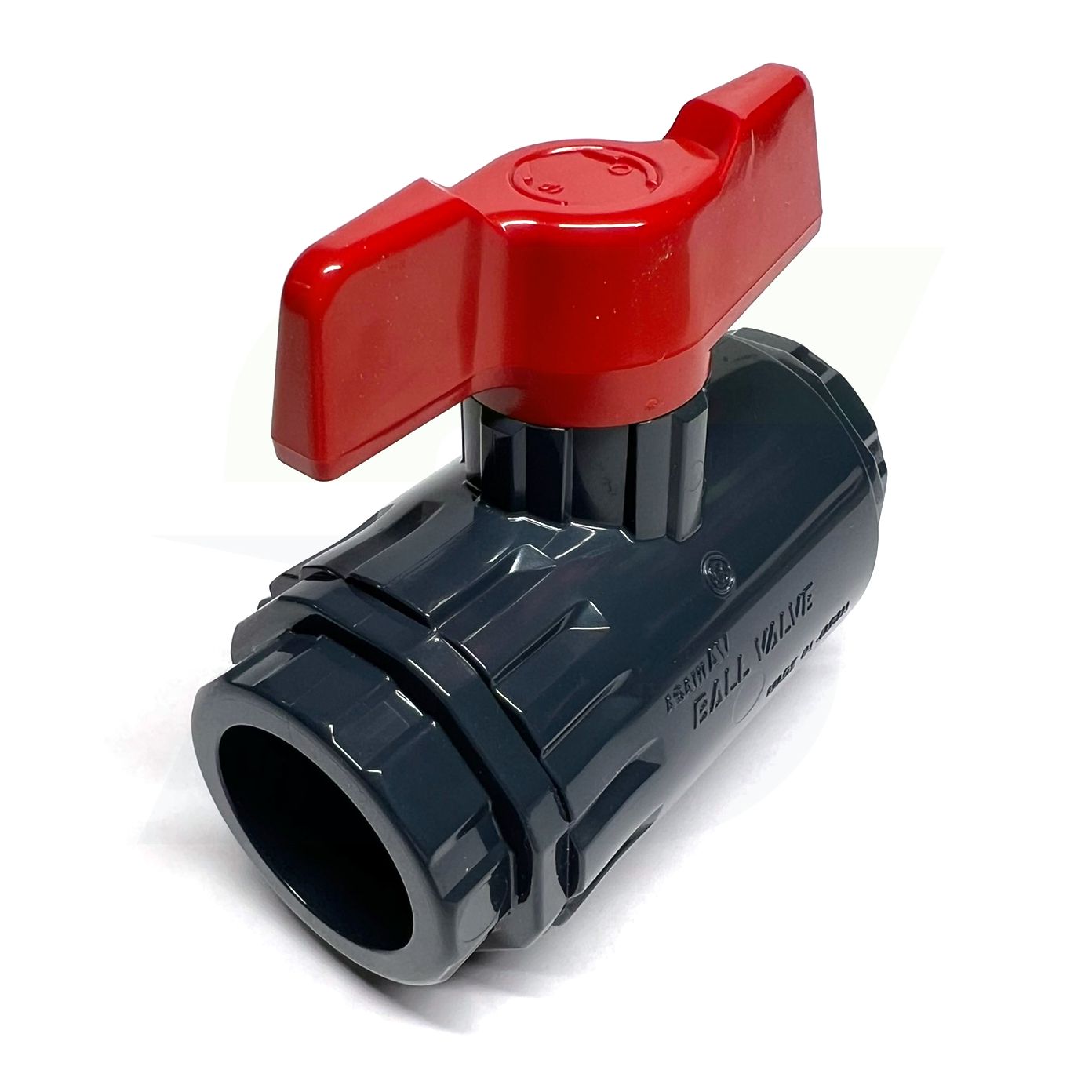

Asahi 161070020 - 2" Socket PVC Ball Valve - 1-Piece

The Omni Type-27 plastic manual valves are economical, one-piece valves that cannot be taken apart. Omni plastic manual ball valves are molded body design quarter turn valves with hyperbolic flow characteristics, low pressure drops and reliable sealing. They offer relatively poor flow control and are typically used in on/off applications. They are excellent for use in clean fluid service applications with very little to no suspended solids. Omni ball valves are well suited for a wide variety of fluid flow applications.

Features

• 2-way blocking valve
• Compact, Low profile
• Unibody sealed carrier construction
• Short face to face dimension
• 2-Stem O-rings
• PTFE seats with elastomeric backing
• Ergonomic handle design
• Full vacuum service rating
• Full port opening
• Accepts molded ISO top flange for actuation mounting
• Connection Type: Socket x Socket
• Connection Size: 2"

^DASAH00320
