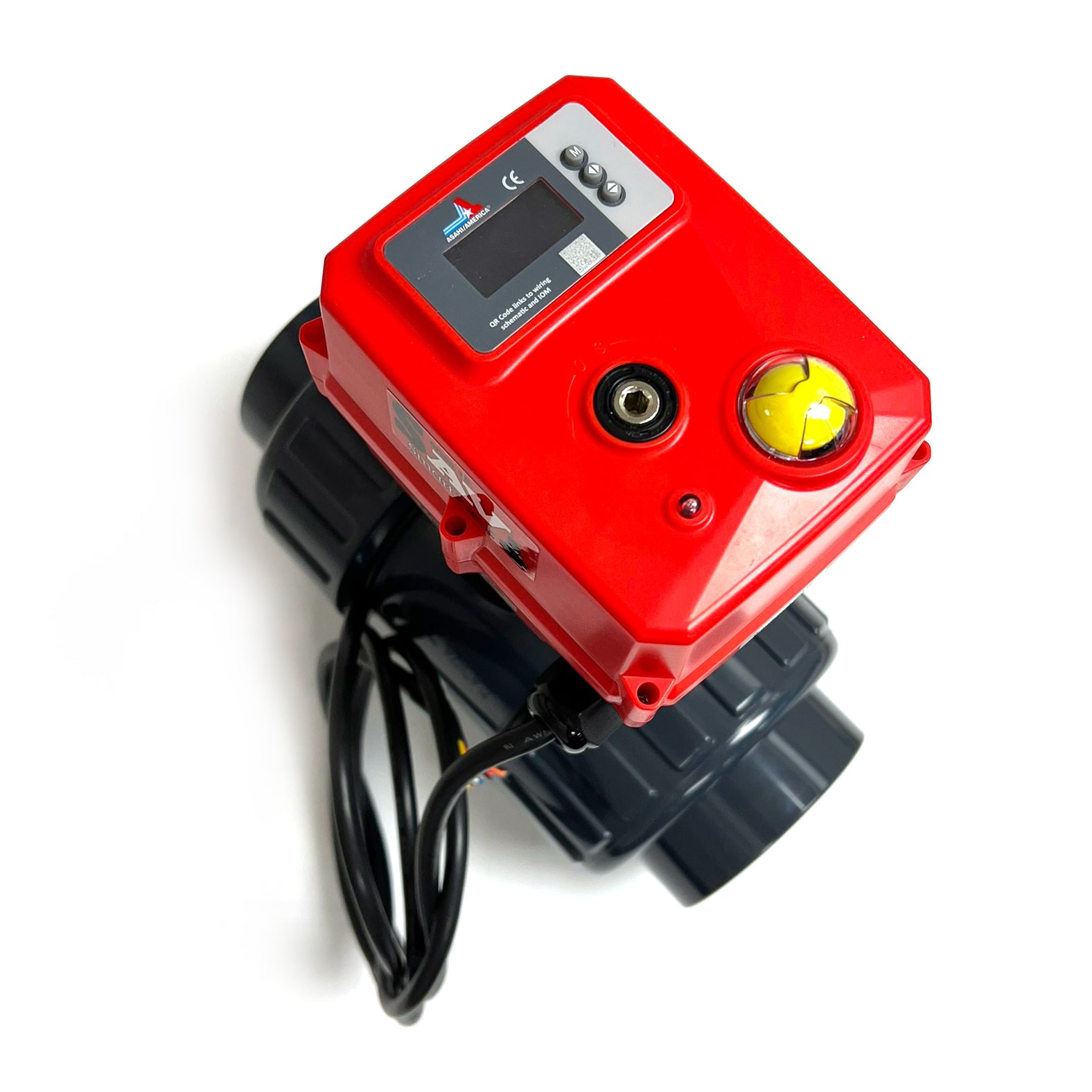

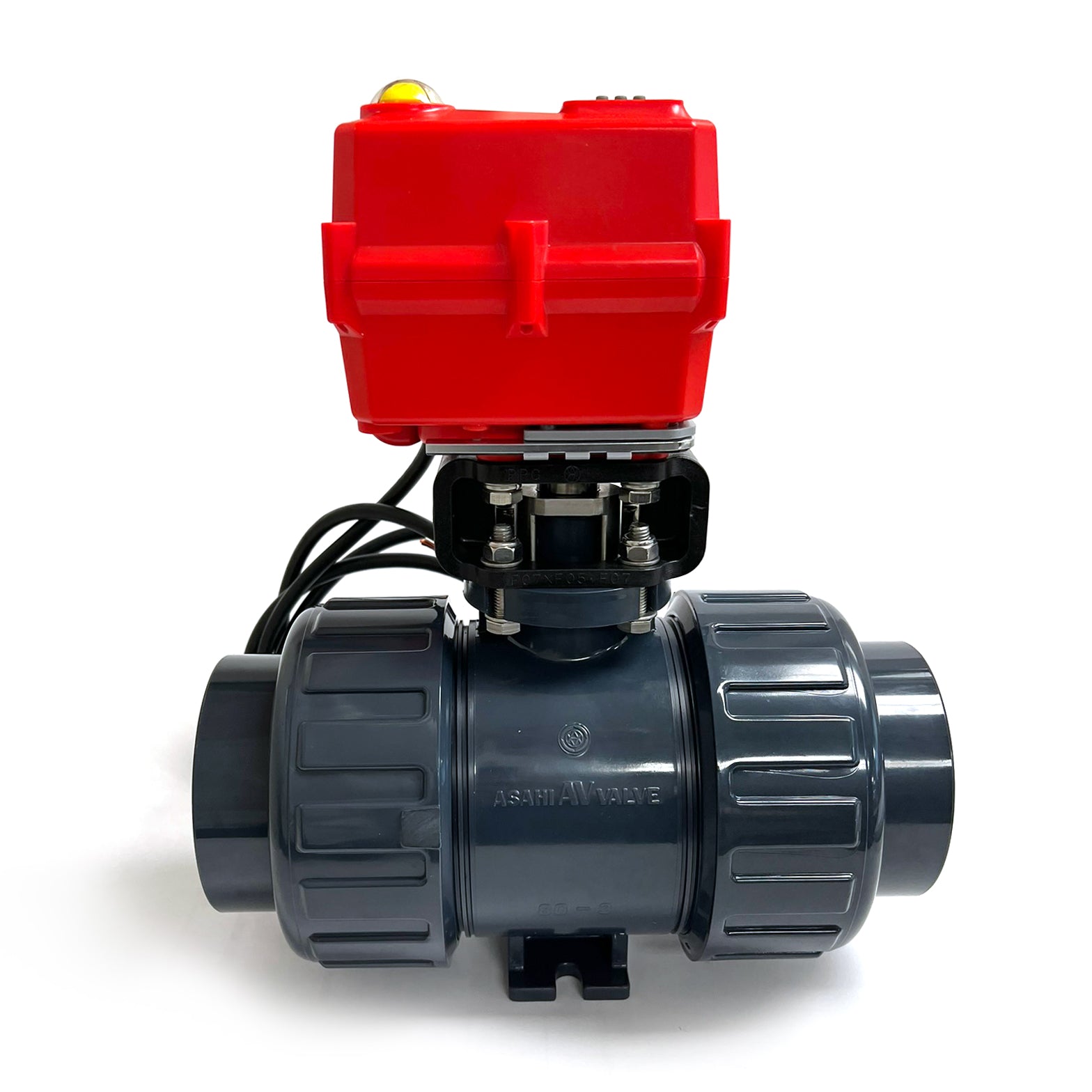

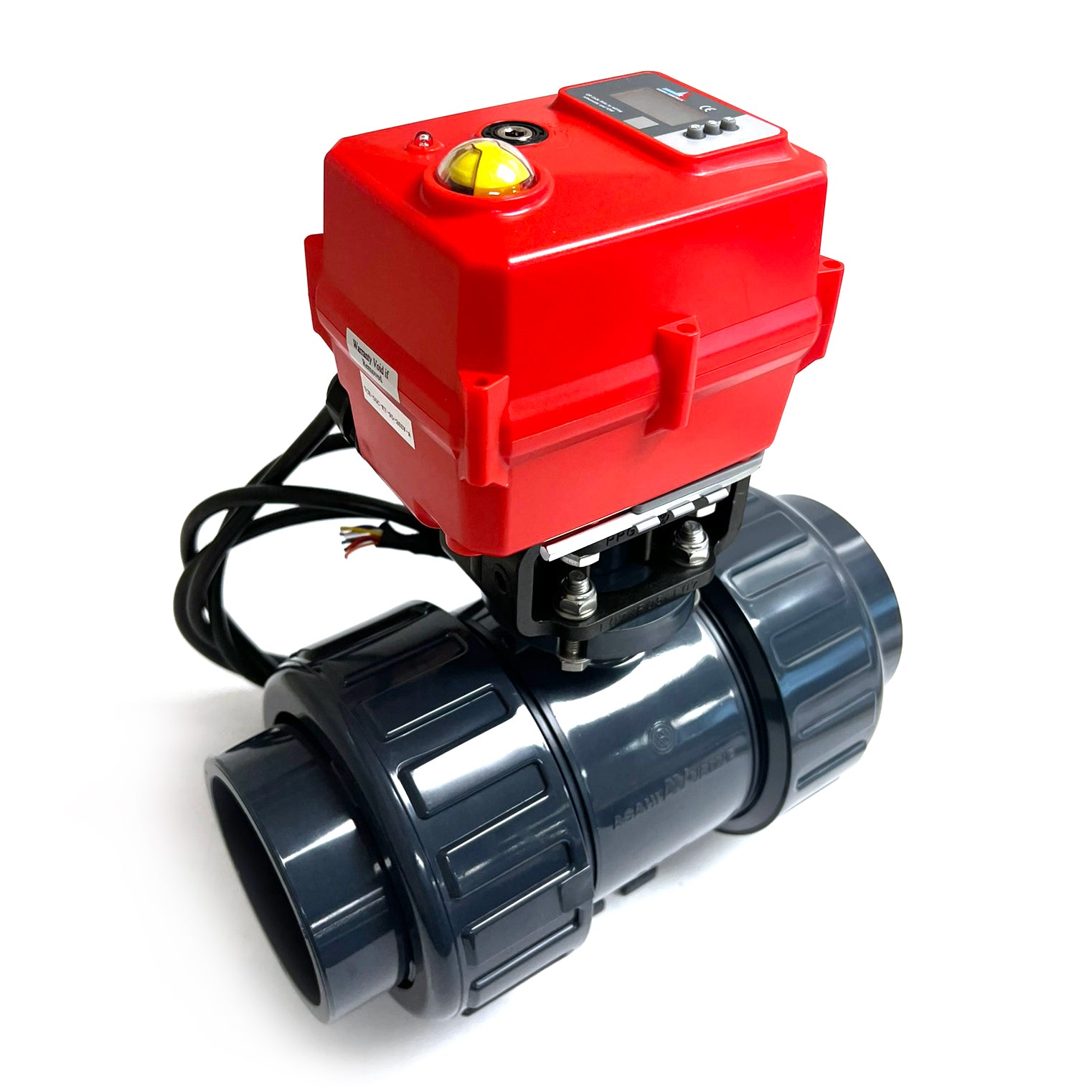

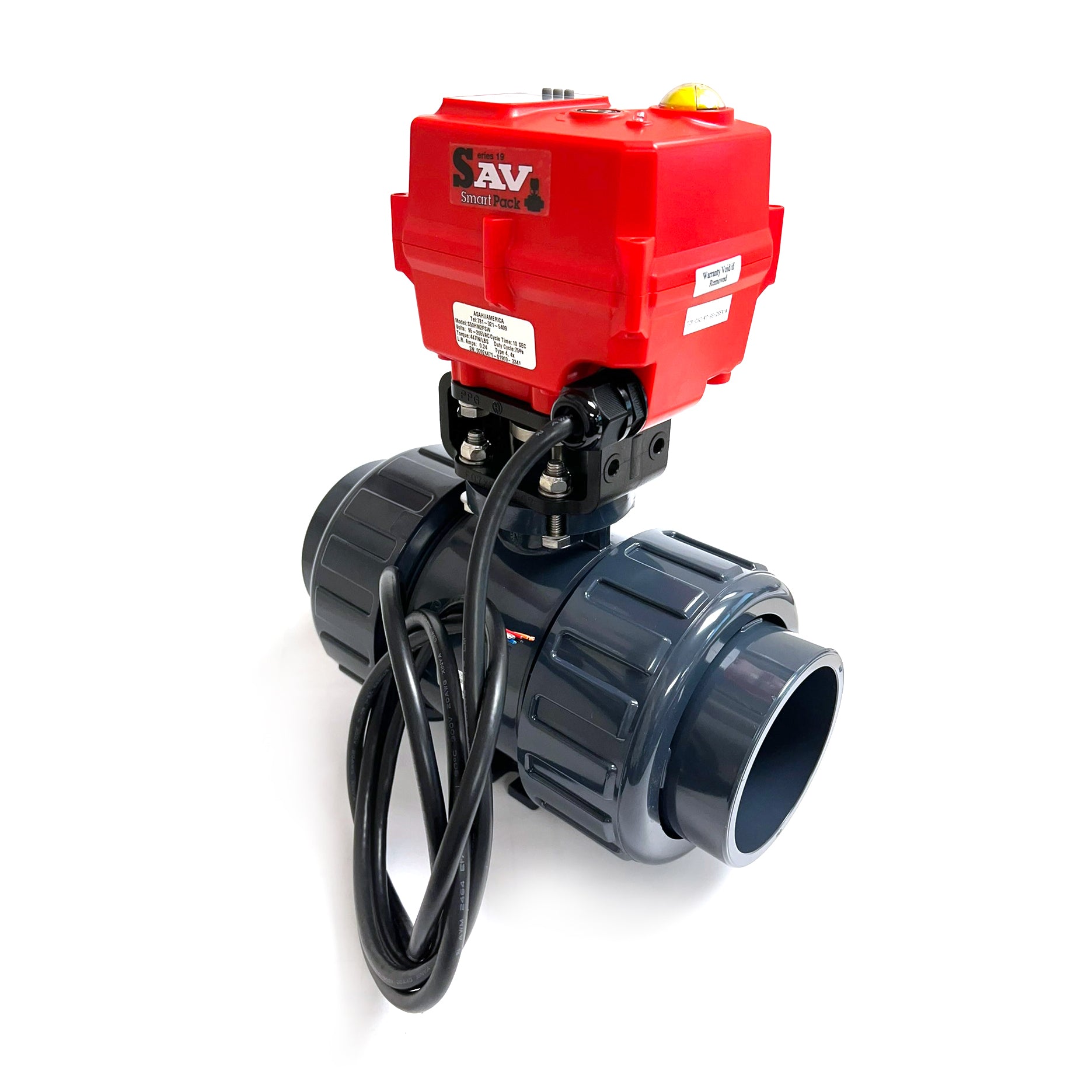

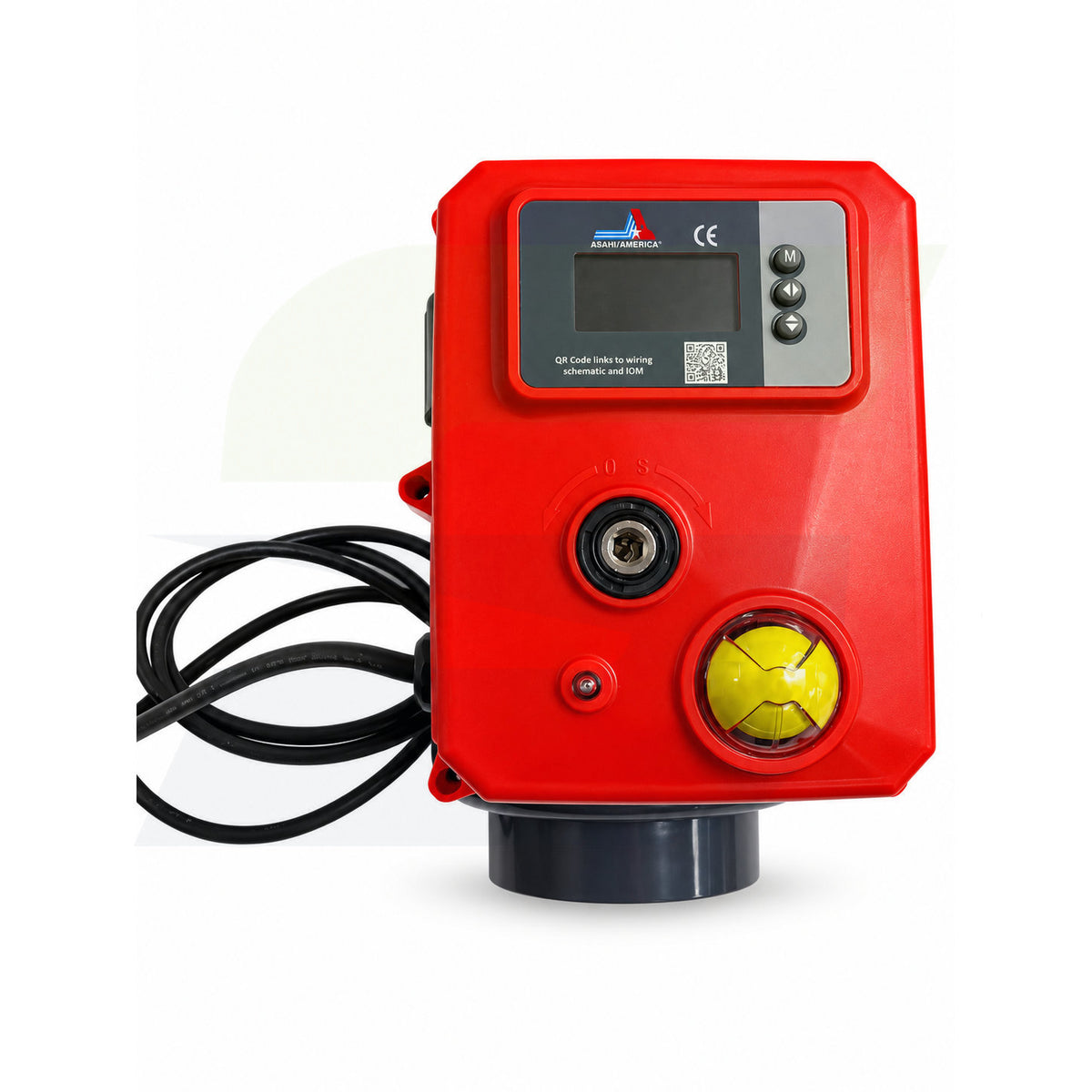

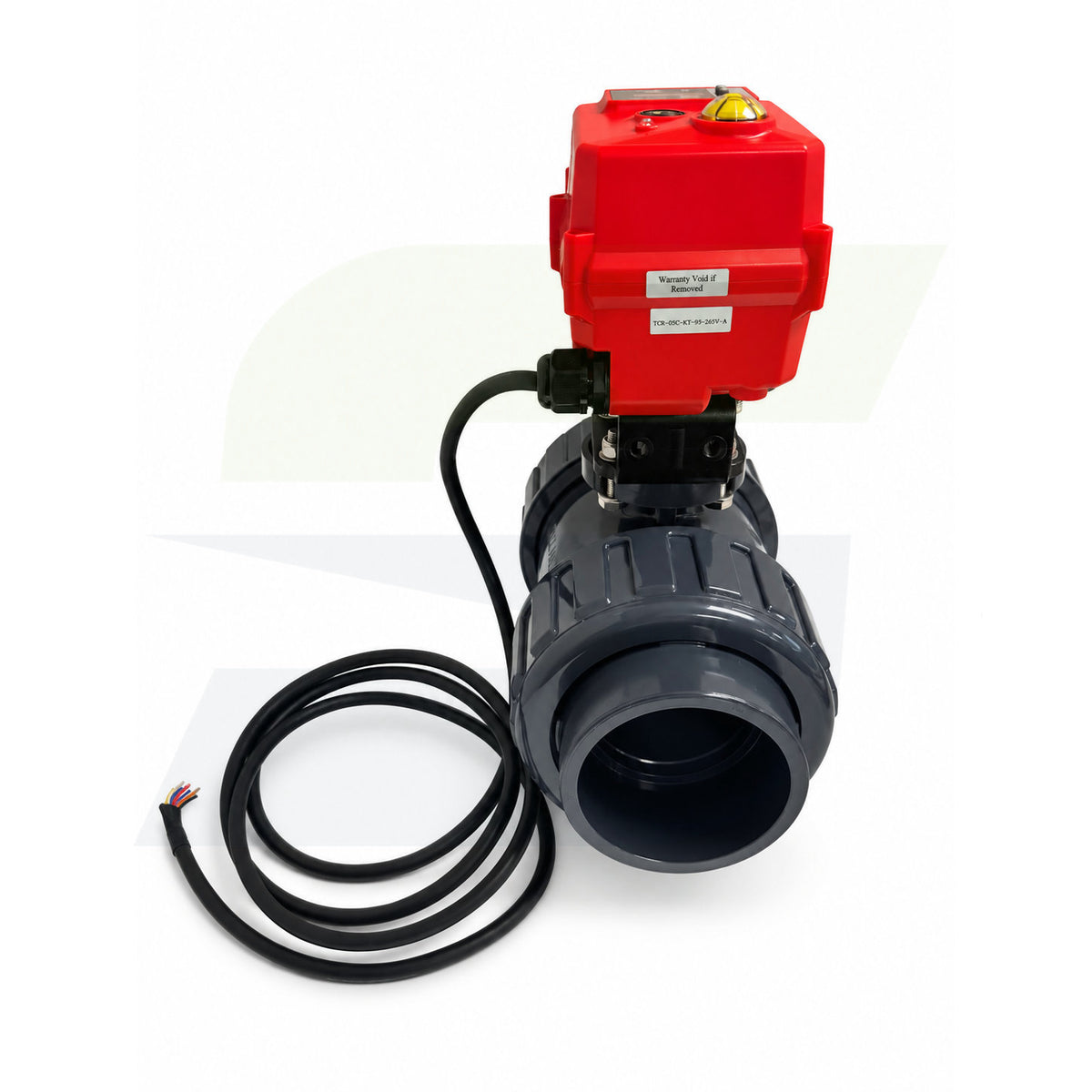

Asahi 160260030 - 3" PVC Ball Valve with Modulating Failsafe Actuator

The Asahi 160260030 is a 3" PVC true union ball valve with a modulating failsafe actuator for automated flow control. The actuator provides variable valve positioning and returns the valve to its configured fail position upon loss of power. Socket connections, EPDM seals and PTFE seats support reliable operation in compatible fluid handling applications. The true union design allows the valve body to be removed for maintenance without disturbing the surrounding piping.

Features

• 3" nominal valve size
• Includes modulating failsafe actuator
• Modulating operation provides variable valve positioning
• Failsafe function returns the valve to its configured fail position upon power loss
• Corrosion-resistant PVC valve construction
• Socket connections for solvent-weld installation
• EPDM seals
• PTFE seats backed with EPDM

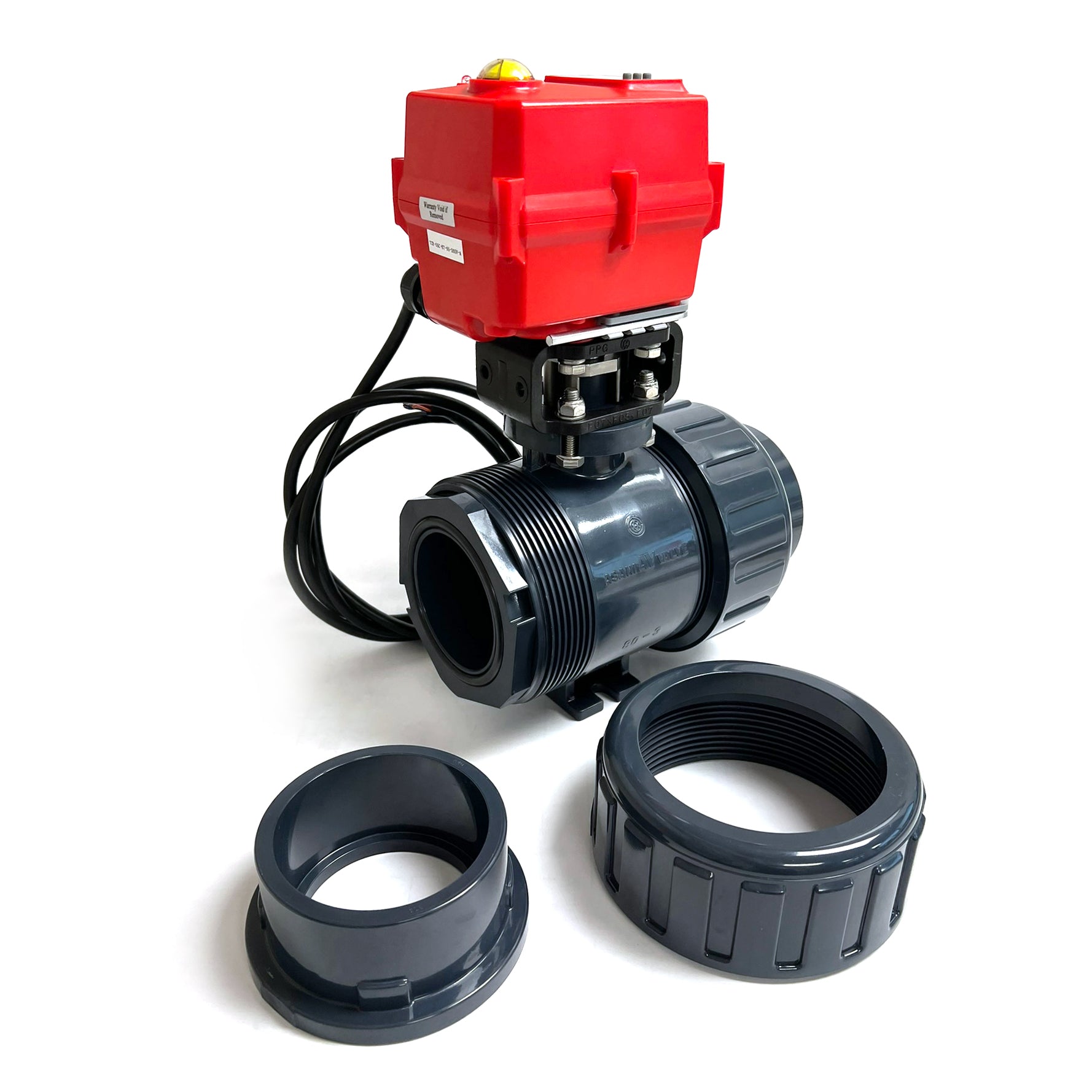

• True union design simplifies removal and maintenance
• Bidirectional shutoff
• Suitable for water treatment and compatible chemical handling applications
