1601010 - 1" True Union In-line Ball Valve - PVC, Socket/Threaded, EPDM Seal

In stock
SKU: 1601010
$71.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

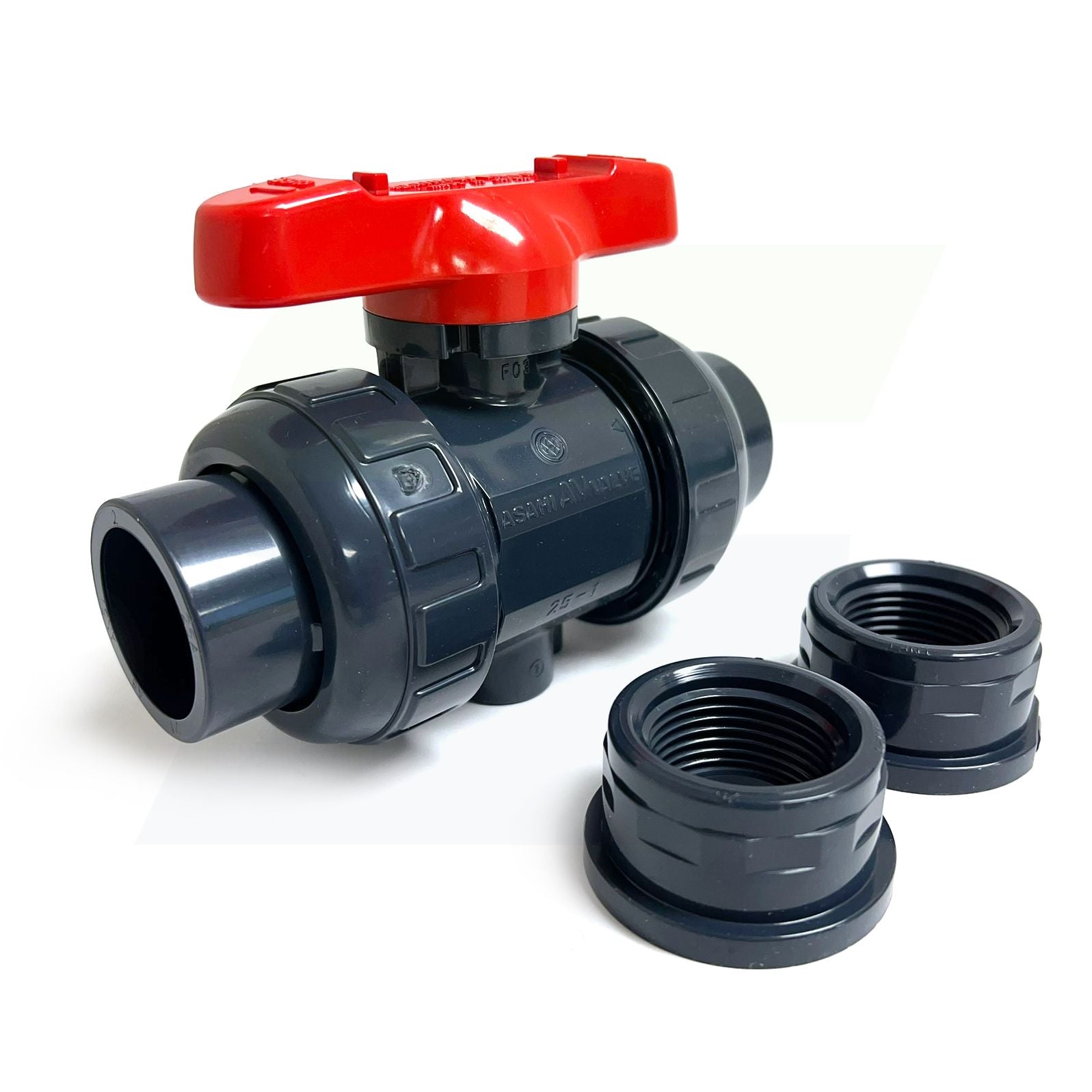

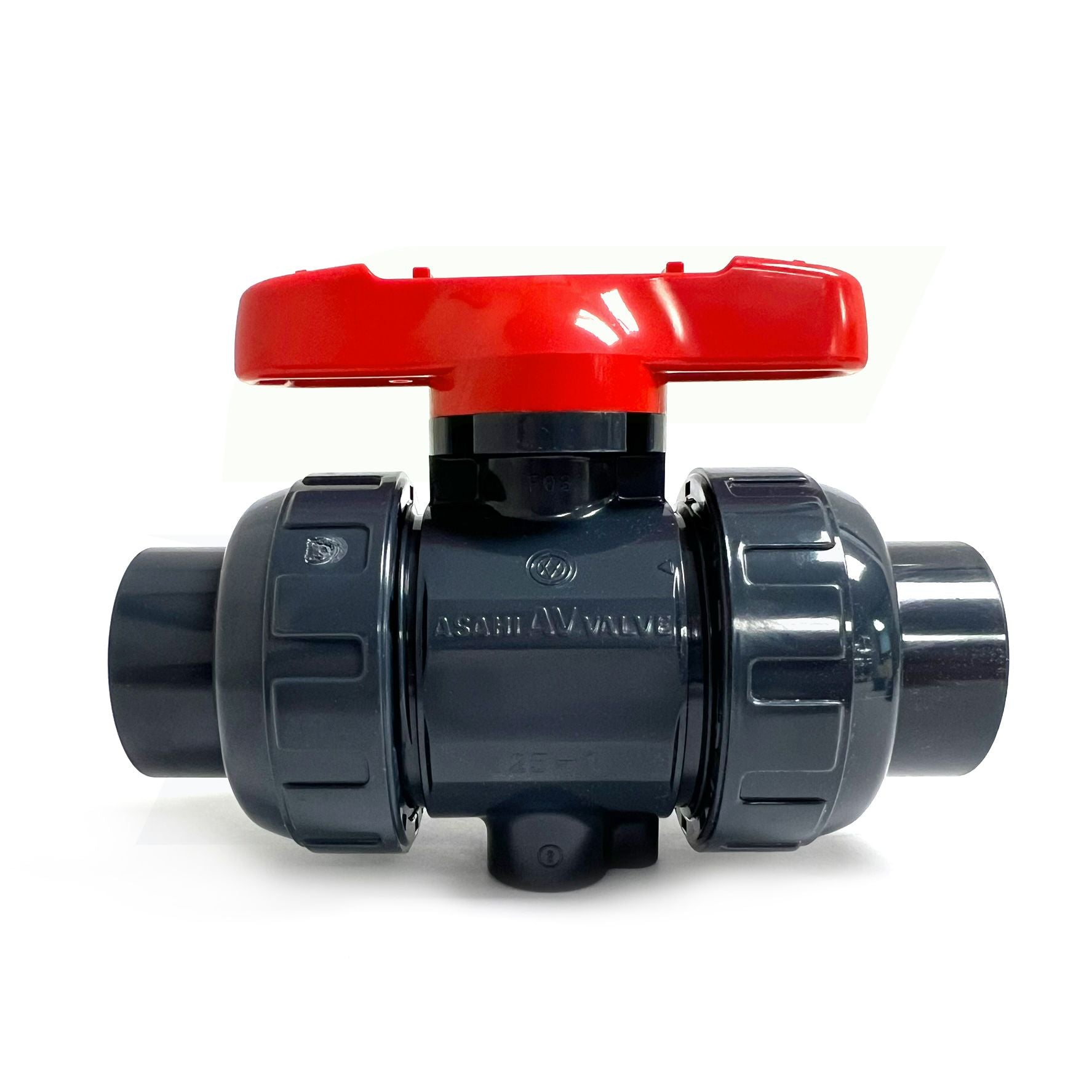

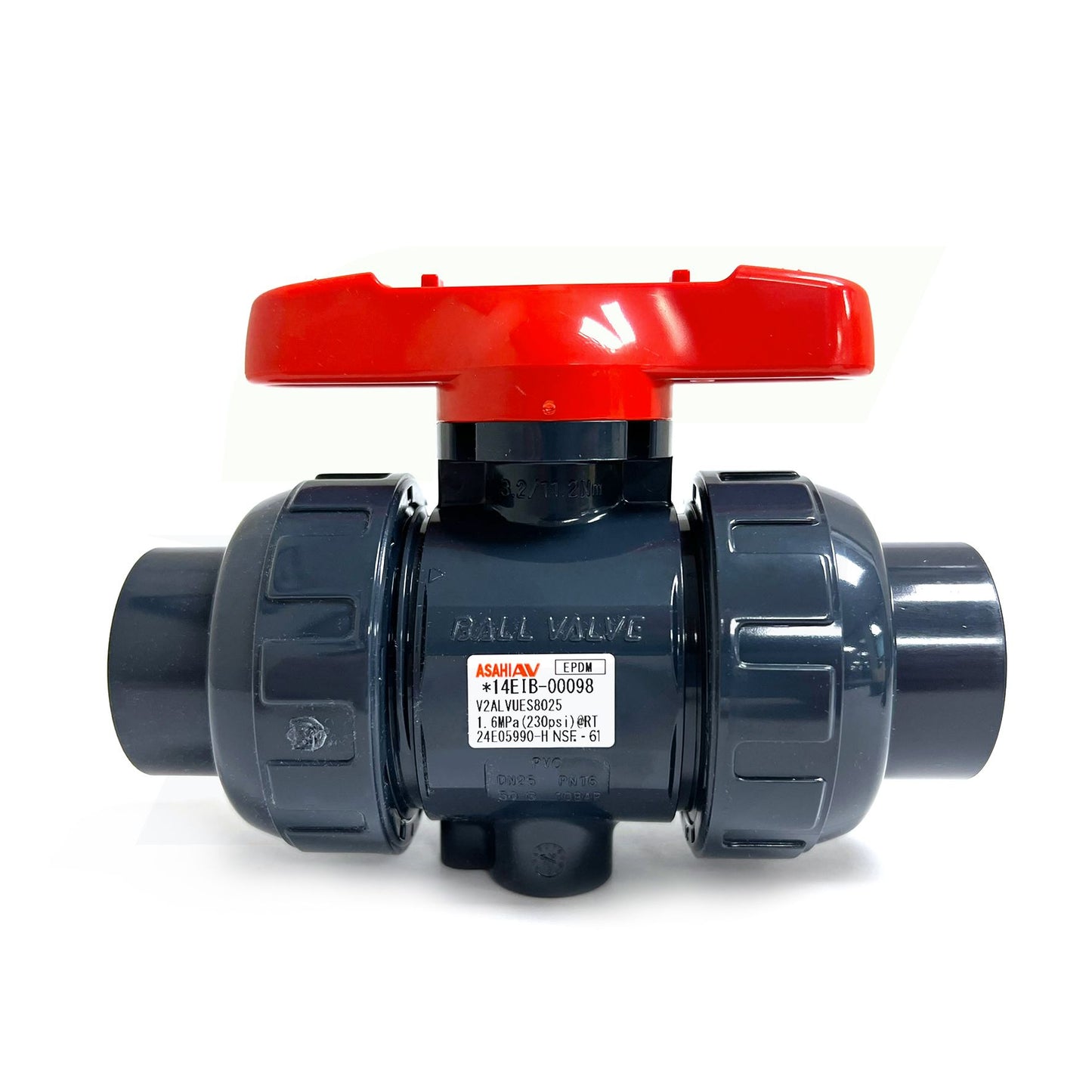

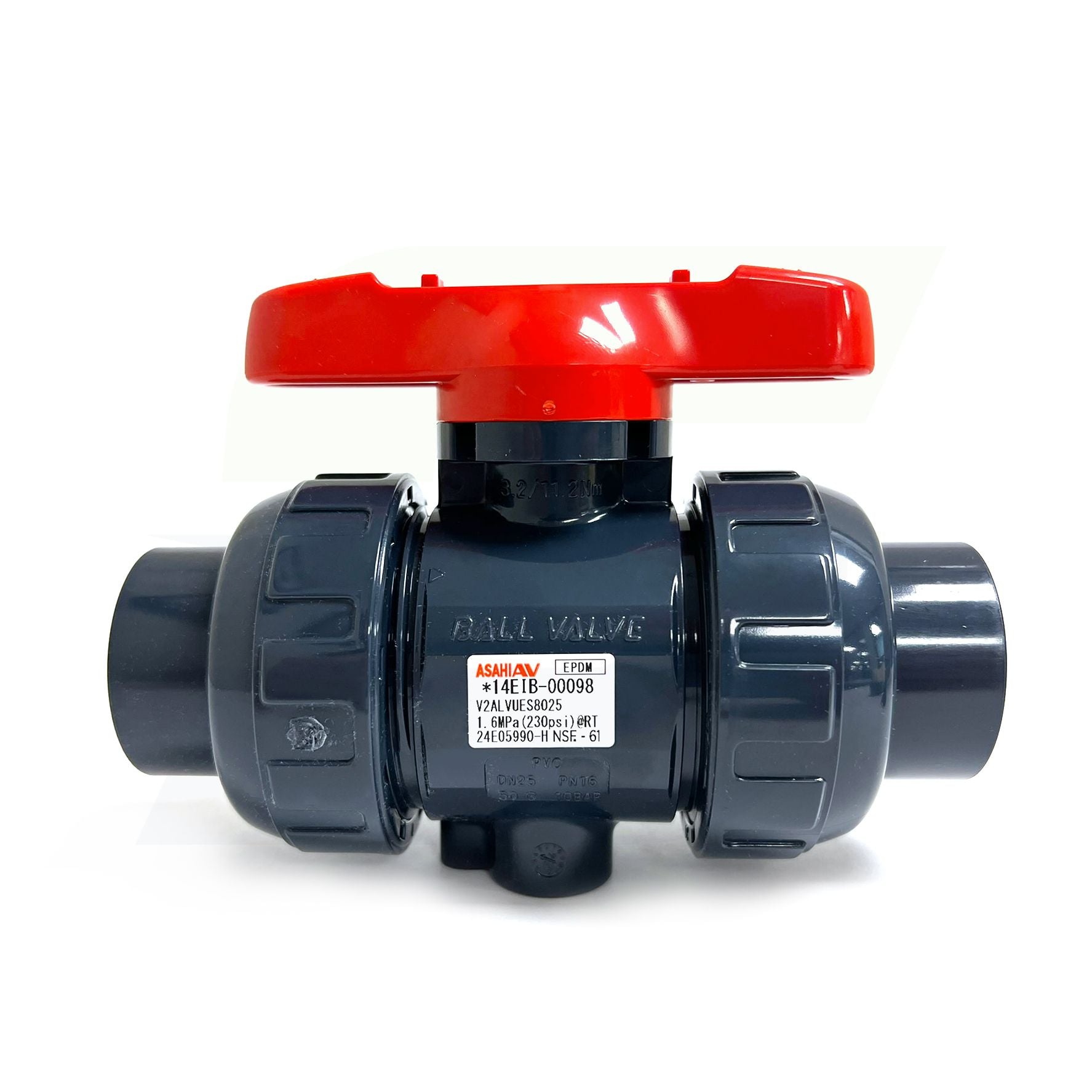

Asahi 1601010 - 1" PVC Type 21 True Union Ball Valve with Socket and Threaded End Connectors

Features

  • Pressure rated up to 230 psi (PVC, CPVC, PVDF)
  • Double O-ring seals on stem for an added protection.
  • Full bore
  • Full vacuum rated, all sizes
  • Blocks in two directions, upstream and downstream, leaving full pressure on the opposite end of the valve
  • Integrally molded ISO mounting pad for both manual and actuated operations
  • Integrally molded base pad to mount valves Securely or panel mounting
  • PTFE seats with elastomeric backing cushions ensure bubble-tight shut-off and a low fixed torque, while at the same time compensating for wear
  • True Union design for easier installation or repairs without expanding the pipe system
  • Built-in spanner wrench on the handle for valve disassembly and assembly

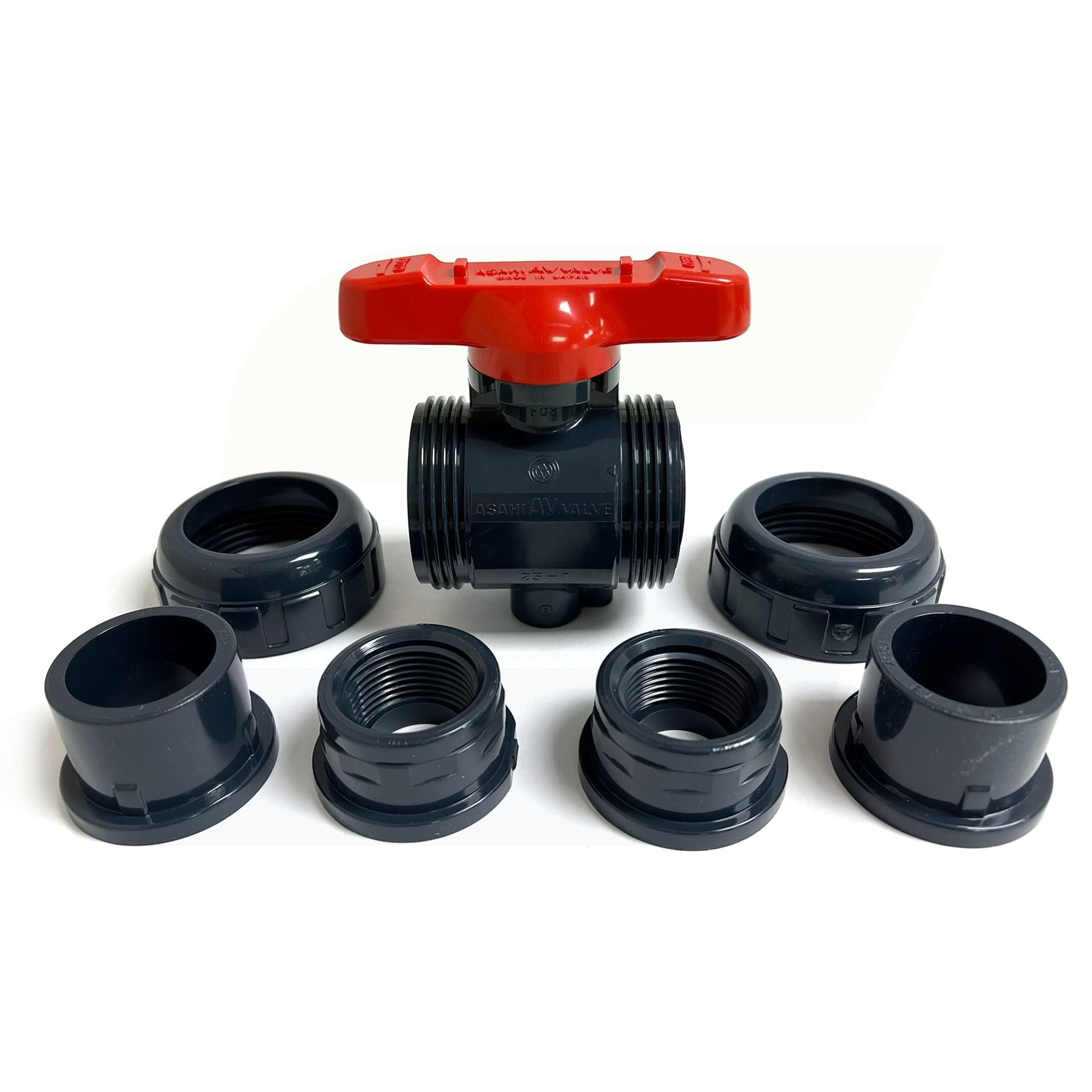

  • Two sets of end connectors (socket and threaded) included
  • CPVC threaded end connectors on sizes ½" 1" come with stainless steel reinforcing rings
  • NSF-61 Certified
  • Material: PVC, EPDM, FKM
