Caleffi 132772A - QuickSetter Balancing Valve w/ Flow Meter 5 - 19 GPM - 1-1/4" FNPT

The 132 series balancing valve accurately sets the flow rate of heating and cooling transfer fluid supplied to fan coils and terminal units or where flow balancing is required in solar thermal systems. Proper hydronic system balancing ensures that the system operates according to design specifications, providing satisfactory thermal comfort with low energy consumption. The flow meter is housed in a bypass circuit on the valve body and can be shut off during normal operation. The flow meter permits fast and easy circuit balancing without added differential pressure gauges and reference charts. The threaded and press versions are furnished with a hot pre-formed insulation shell to optimize thermal performance for both hot and cold water systems.

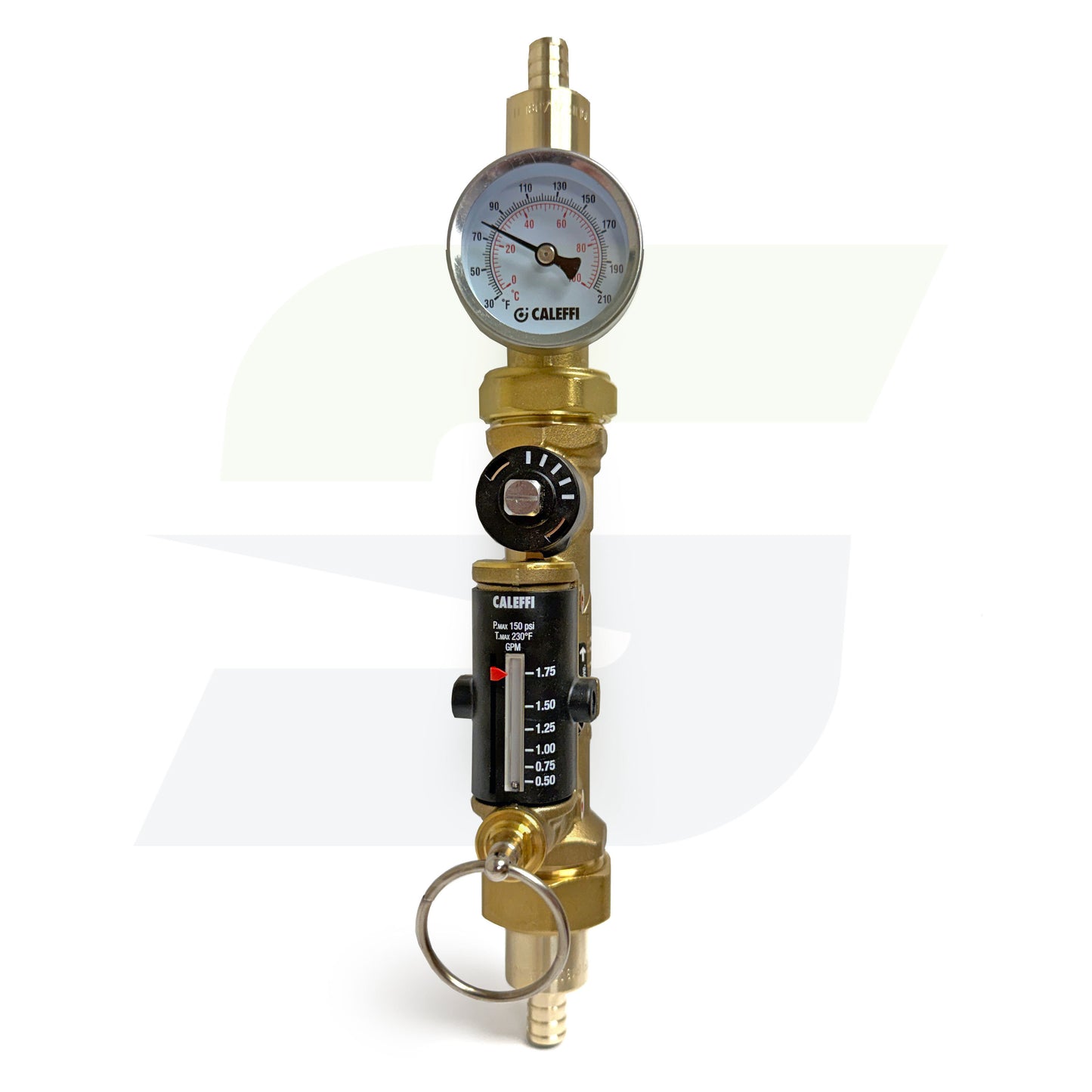

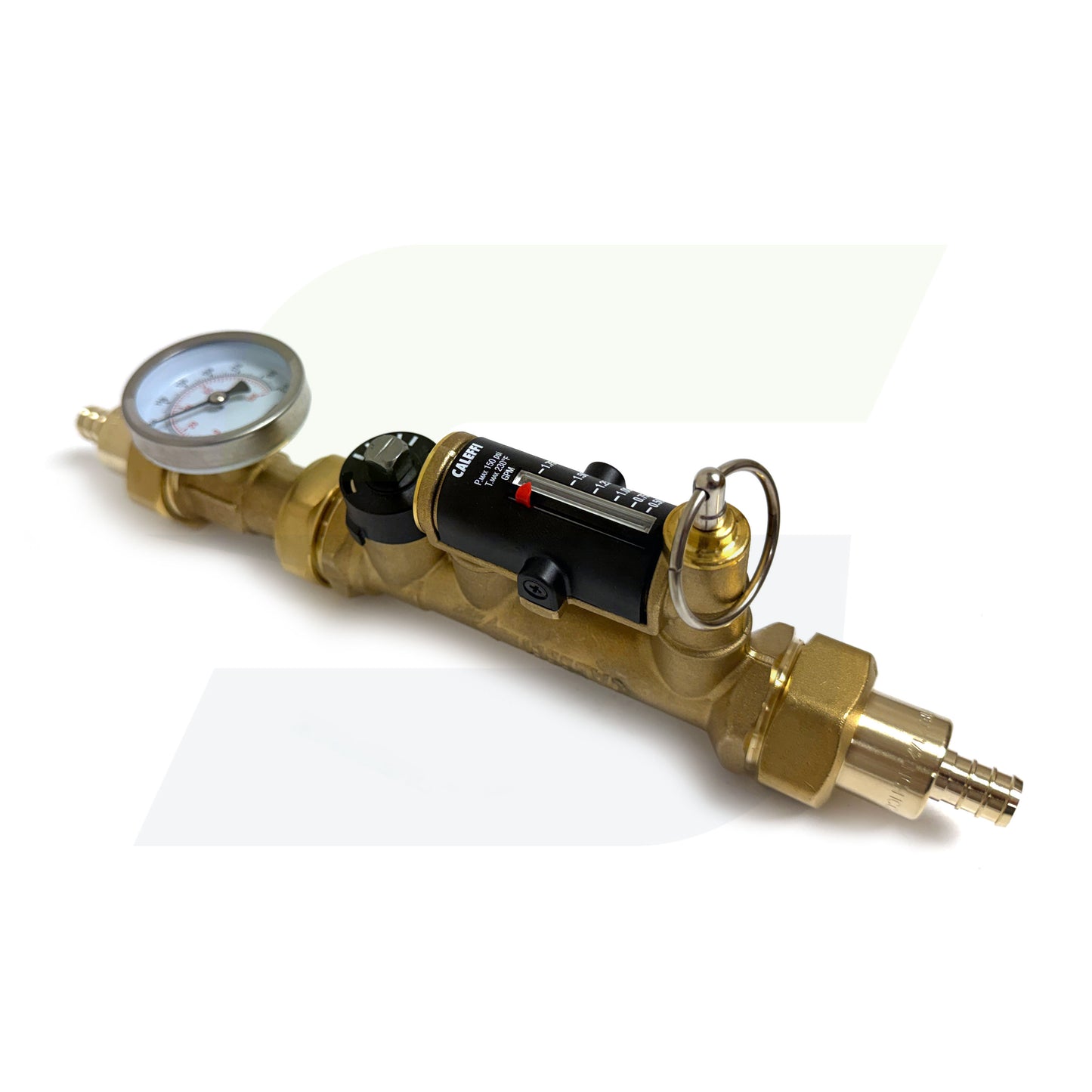

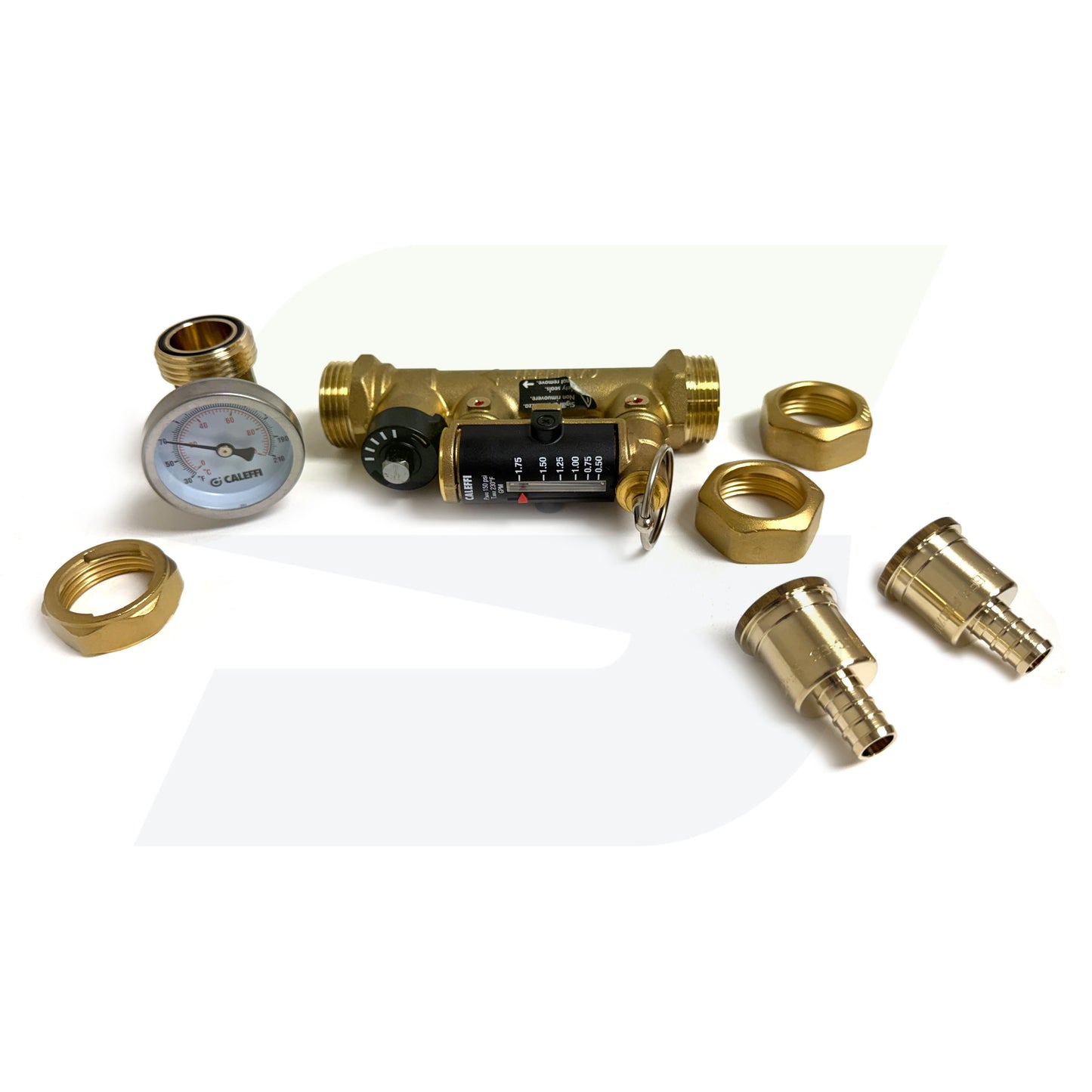

The Caleffi 132435AFC QuickSetter+ Balancing Valve provides accurate flow regulation in hydronic heating and cooling systems. Its built-in flow meter allows direct visual measurement and adjustment, while the integrated check valve and temperature gauge support efficient system balancing and monitoring.

Features

• Adjustable static balancing valve with built-in flow meter
• Direct flow-rate reading simplifies system balancing
• Flow range: 0.5–1.8 GPM
• 1/2" PEX crimp union connection
• Integrated inlet check valve
• Built-in outlet temperature gauge
• DZR low-lead brass construction
• Maximum operating pressure: 150 PSI
• Fluid temperature range: 14°F to 230°F
• Suitable for solutions containing up to 50% glycol
• Manufacturer Part Number: 132435AFC
