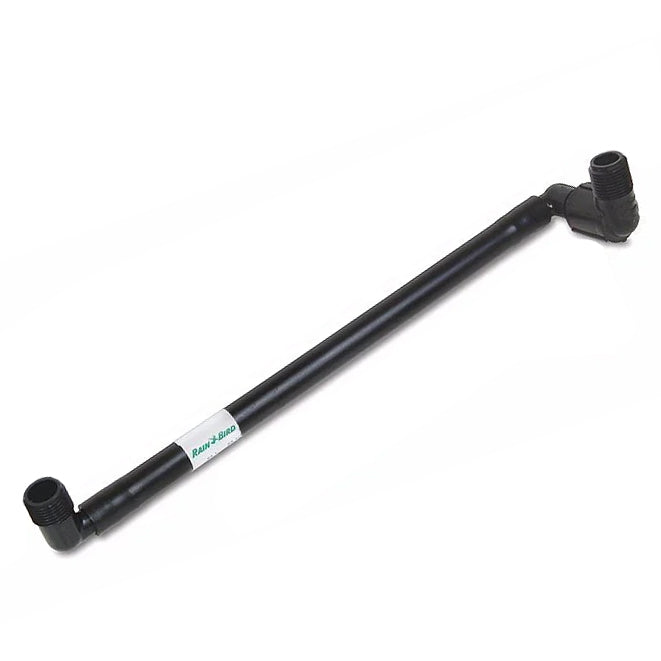

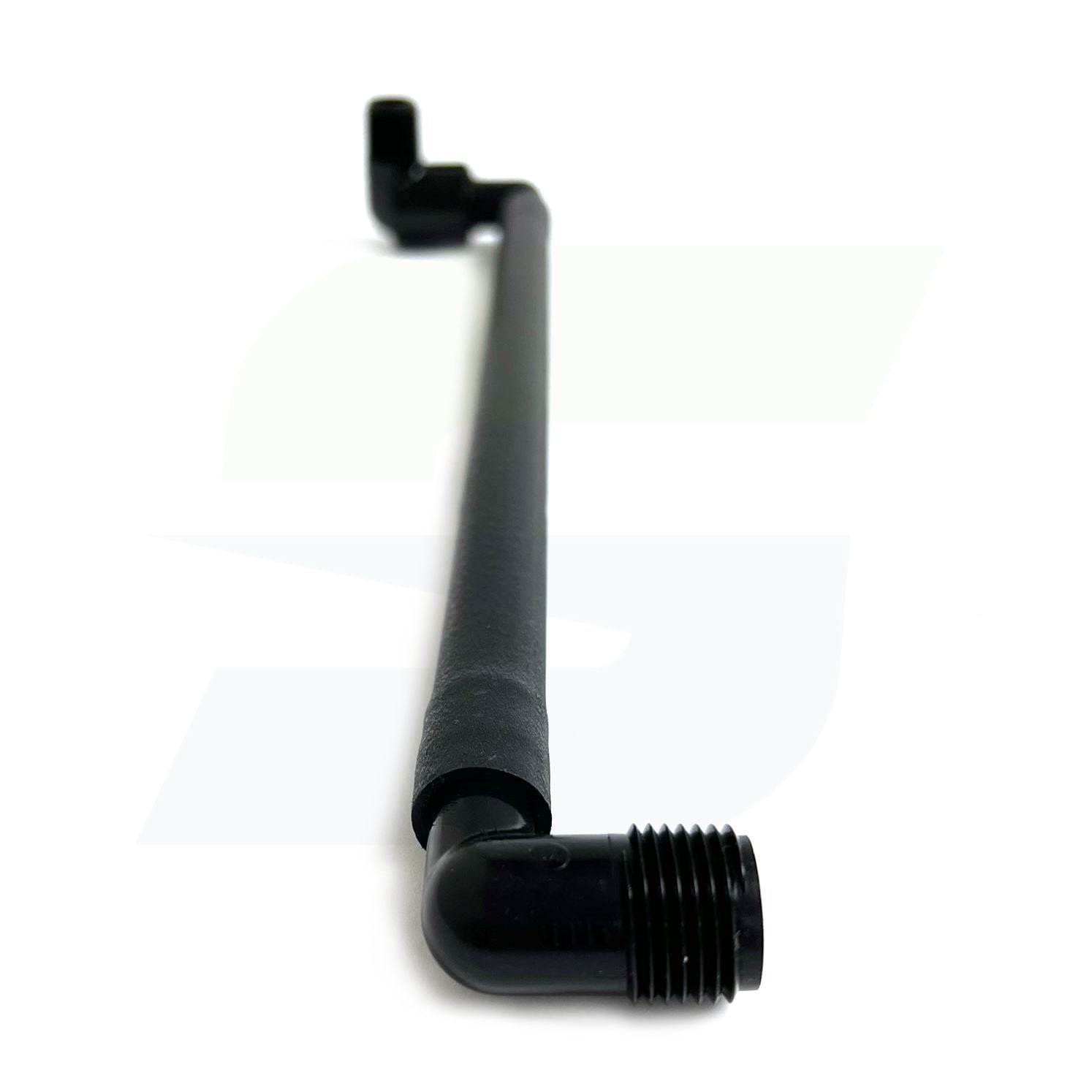

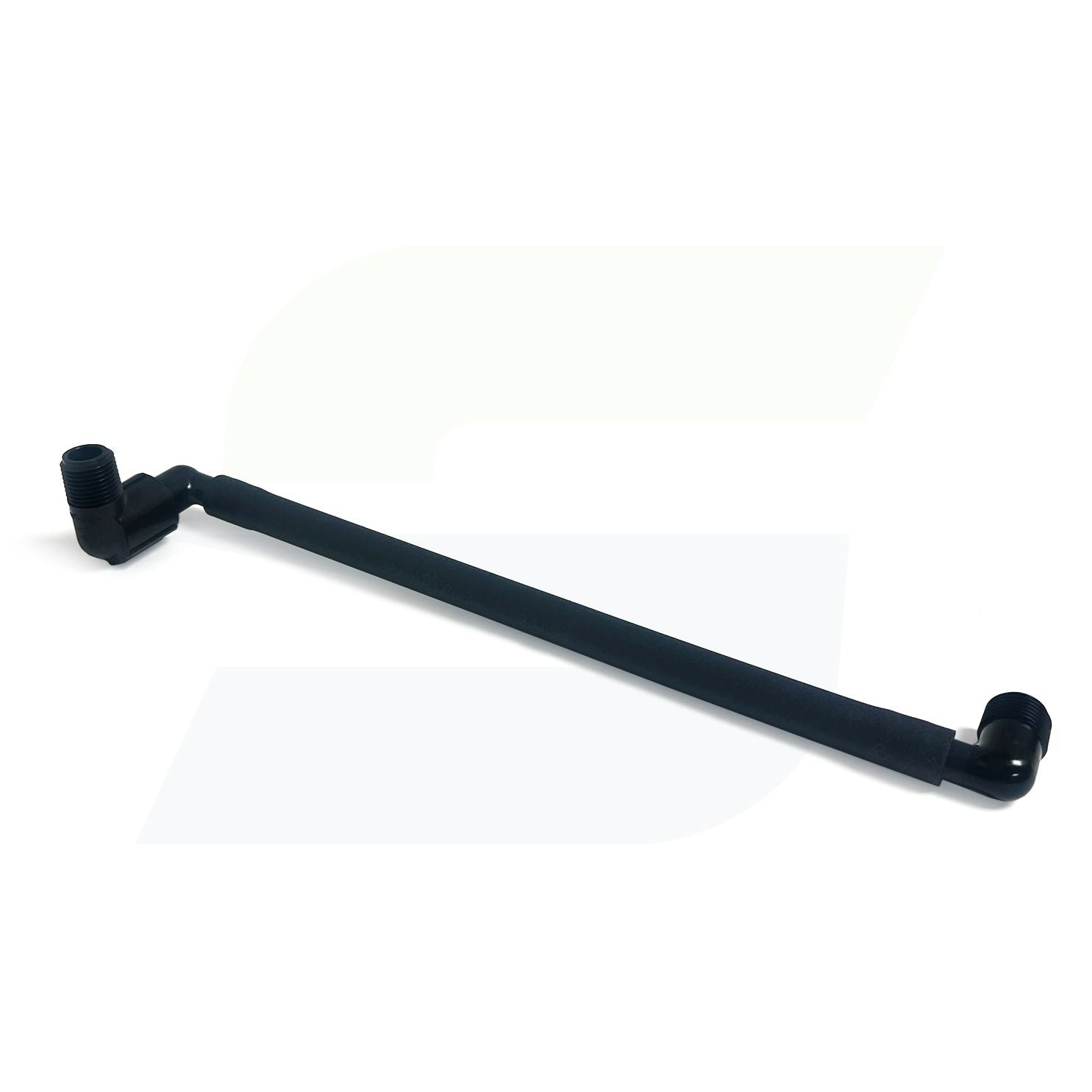

Rain Bird SA-125050 - 12"  Swing Joint Assembly - 1/2" NPT x 1/2" NPT

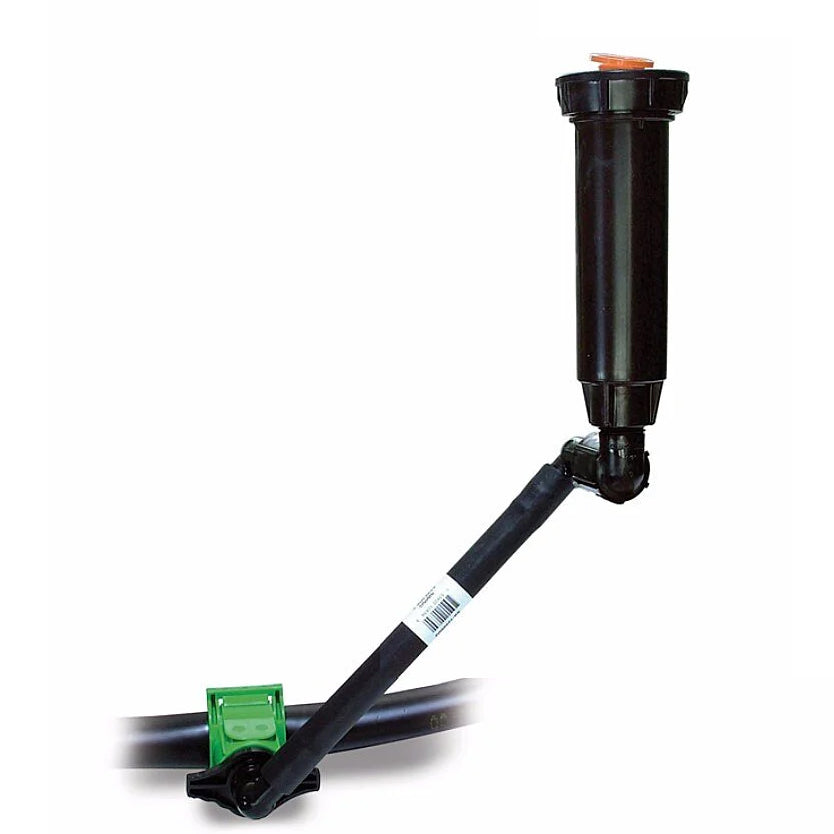

Connects heads to lateral pipes. This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.

Features

• 12" Long swing pipe assembly with 1/2" x 1/2" male pipe threaded elbows
• Preassembled units save the contractor time and reduce installation costs
• Swing arm lengths allow quick adjustment of spray heads to grade preventing damage from lawn equipment
• Quad Swing Assembly is the most adaptable product, making installation of spray heads on inclines fast and easy
• Quality alternative to locally assembled swing pipe/spiral barb fittings that do not carry a manufacturer’s warranty
• Complementary engineered fittings and spray heads instill confidence in product specification

Specifications

• Operating Range: Matches or exceeds the operating range for most 1/2" sprays and 3/4" rotors
• Operating Pressure: Up to 80 psi (5.5 bar)
• Surge Pressure: Up to 240 psi (15.5 bar)
• Temperature: Up to 110 degrees F (43 degrees C)
• Maximum Flow: 8 gpm (0.5 l/sec)
• Length: 12"
• Inlet / Outlet: 1/2"
