PD703028 - Blower Wheel - 11" x 10" - CW - 1/2" Bore

Out of stock
SKU: PD703028
Regular price $109.99

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

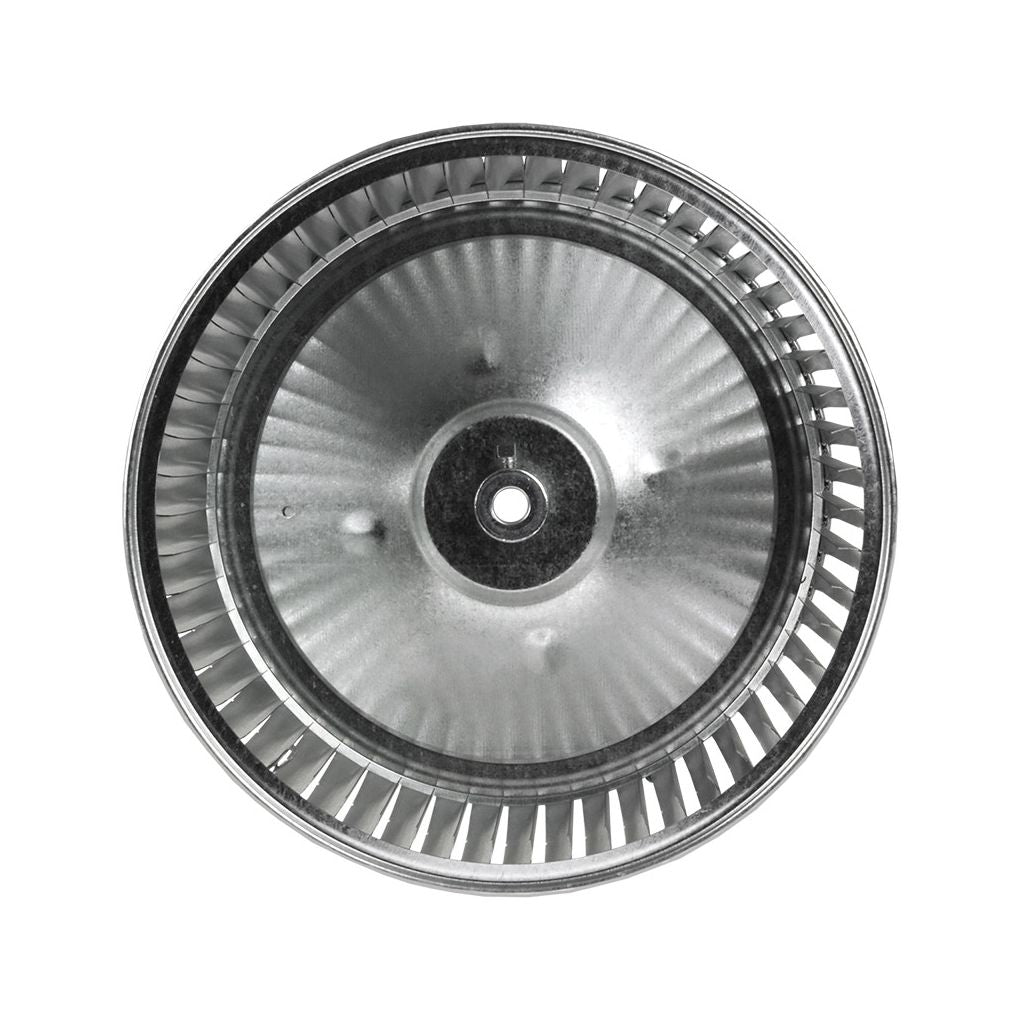

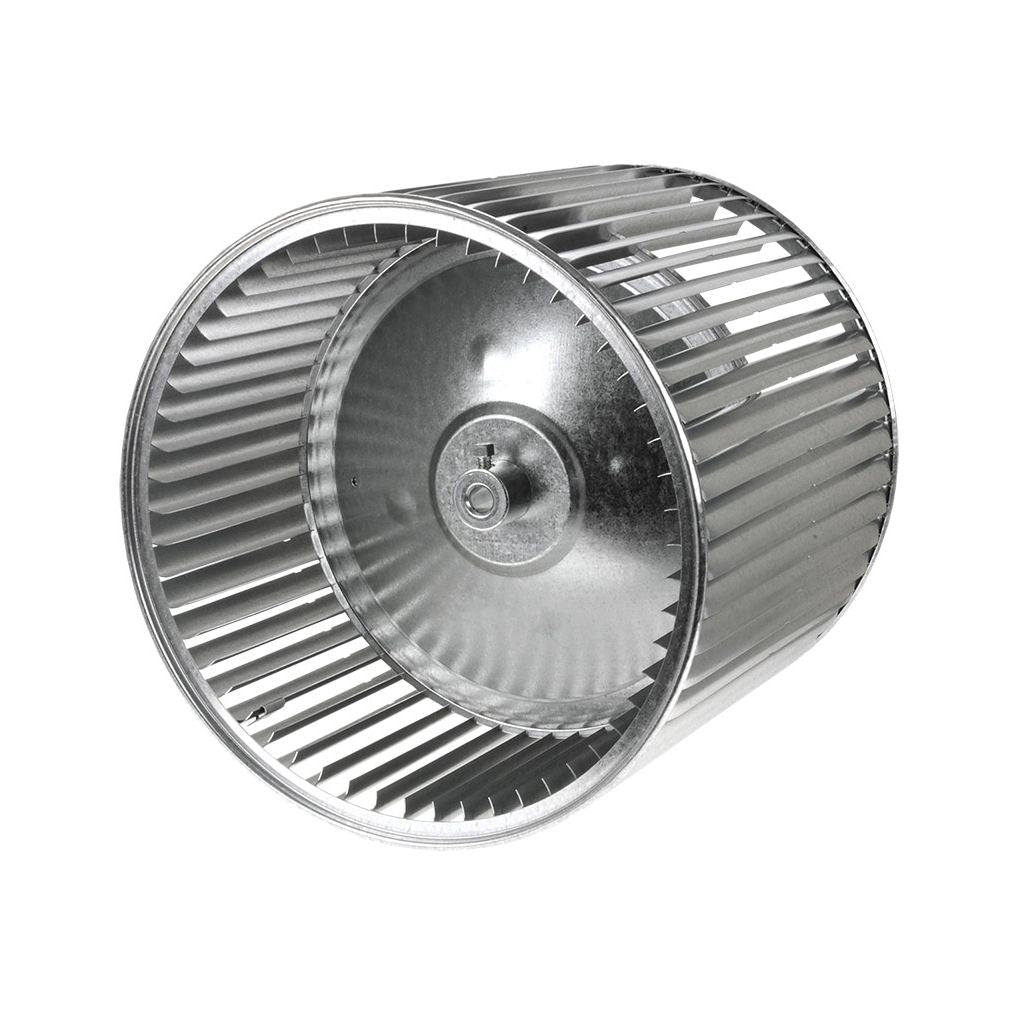

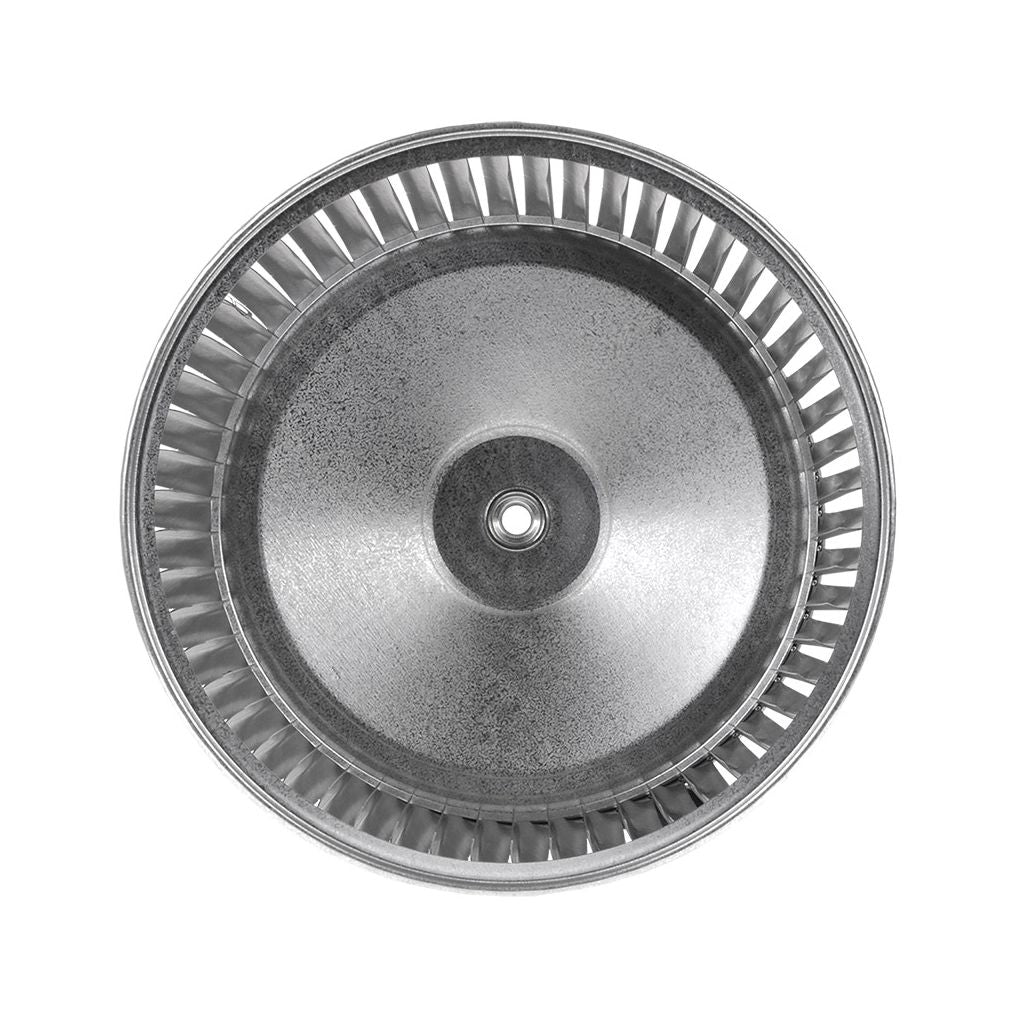

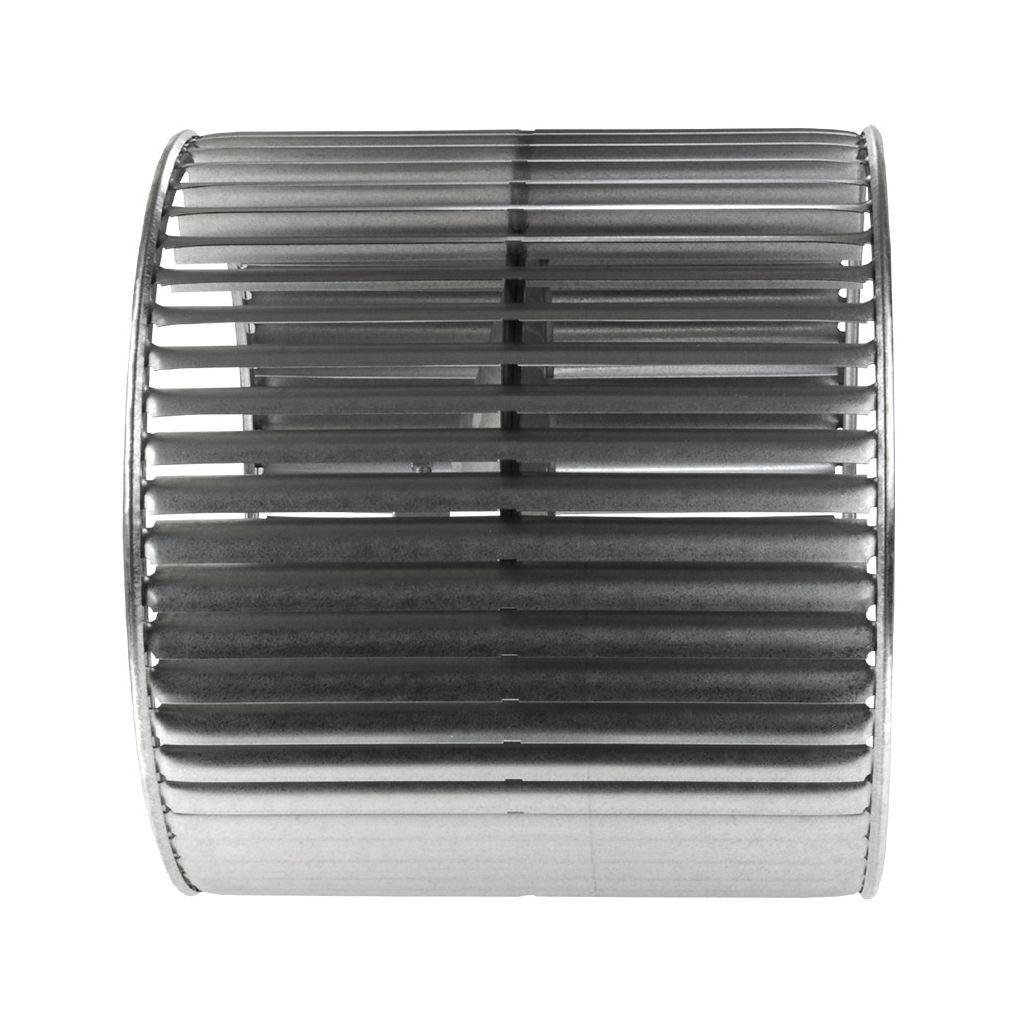

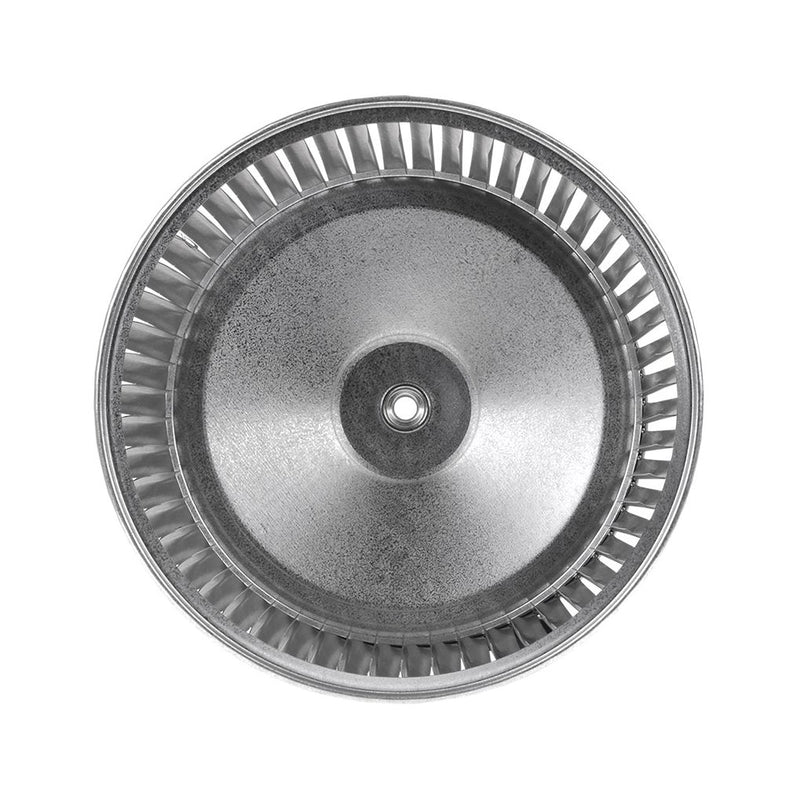

Rheem PD703028 - 11" x 10" Blower Wheel - 1/2" Bore

Features

  • Overall Diameter Dim. D (in.): 11-15/16
  • Overall Width Dim. W (in.): 10-11/16
  • Nominal Size (in.): 11 x 10
  • Number of Blades: 54
  • Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
  • Number Set Screws: 1
  • Outside Edge of Disc to Outside End of Hub Dim. A (in.): 2-1/8
  • Hub Length Dim. B (in.): 1-1/8
  • Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 5-11/32
  • Keyway (in.): None
  • Rotation Direction (Facing Hub): CW
  • Disc Shape (Hub side): Convex
  • Shipping Weight: 8.43 lbs

Where Used

  • R801C-MSA_MXA
  • R801P-MSA
  • R801P-MSA_MXA
  • R801S-MSA
  • R801T-ULN
  • R801T-UH
  • R801T-W801T-MSA_MXA
  • R801T-W801T-MUA
  • R801V-UH
  • R801V-MUA
  • R802P-MSA
  • R802T-MSA
  • R802V-UH
  • R802V-MSA
  • R921T
  • R921V
  • R92PA
  • R92TA
  • R951T
  • R951V
  • R95PA
  • R95TA
  • R95TB
  • R95TC-W95TC
  • R962V
  • R96PA
  • R96TA
  • R96VA
  • R97MV
  • R97V-KSA
  • R97V-USA
  • R98MV
  • R98V-USA
