Watts 7100268 - 10" Plastic Filter Housing with Pressure Relief - PWHIB

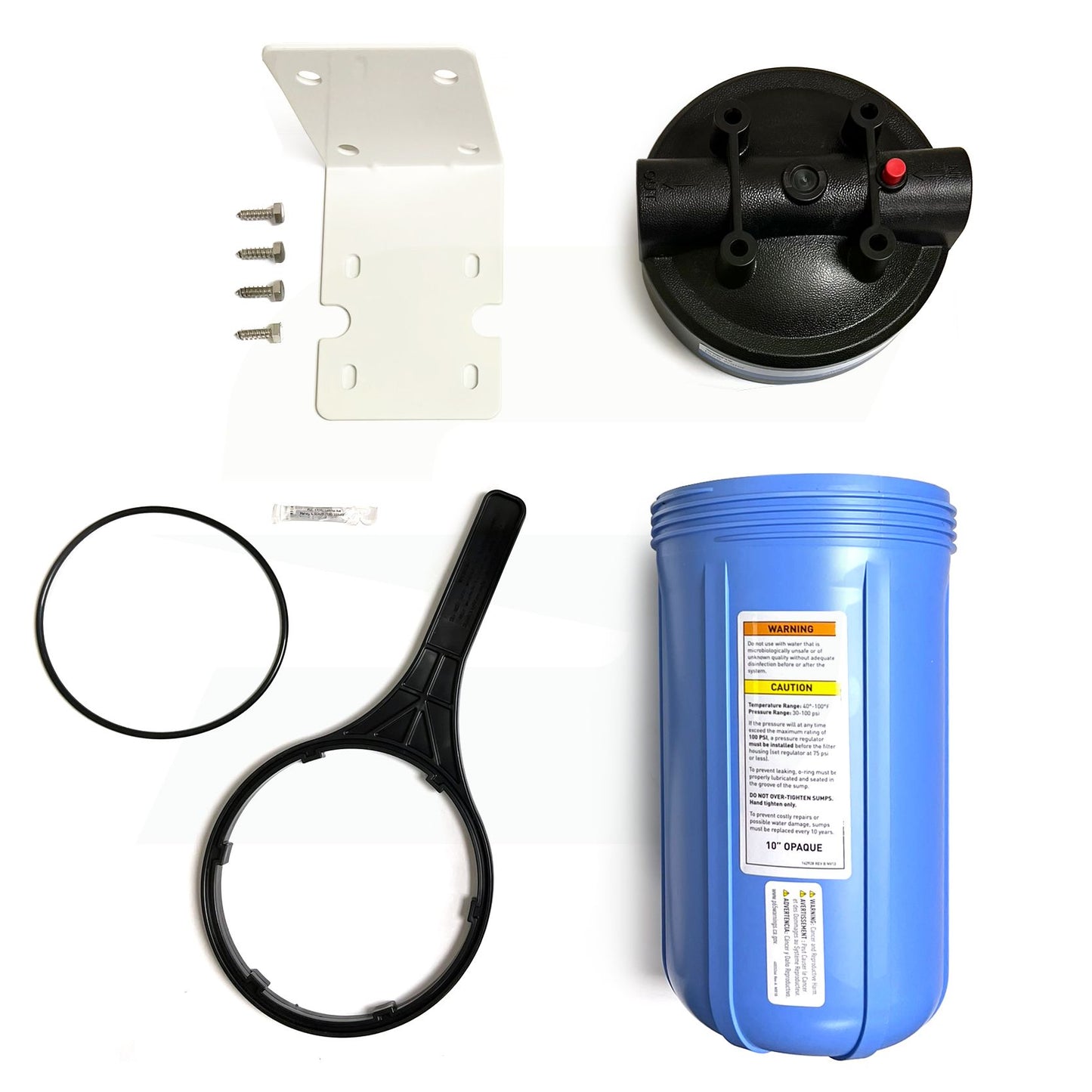

This 10 inch complete filter housing kit is designed for the Full Flow housing. It includes the housing with a pressure relief lid, wrench, single mounting bracket and all the mounting screws.
Watts' poly filter housings are manufactured from the highest quality 100% polypropylene. Leak-proof sealing is accomplished by compression against a top seated EPDM O-ring located in the housing’s sump. Thick wall and added ribs make the housings ideal for a wide range of applications. Polypropylene construction provides excellent chemical resistance in most installations environments. Housings supplied with pressure relief valves.
Features
- 10 Inches long
- Blue housing with black lid
- Includes pressure relief valve
- 1 IN Port connection
- Brand: Watts
- Cap Color: Black
- EAN: 098268564396
- Housing Finish: Smooth Plastic
- Housing Material: Polypropylene
- Connection Size: 1" NPT
- Connection Type: Female Threaded
- Lead Free: YES
- Lid Closure Type: Screw-twist
- Max Temp: 100 degrees F
- Min Temp: 40 degrees F
- O-ring Material: EPDM
- Part Number: 7100268
- Pressure Drop: 0.6 to 1 PSI based on the micron
- Pressure Rating-BAR: 6.21
- Pressure Rating-PSI: 90
- Pressure Relief: Yes
- Series: PWHIB
- Sump Color: Blue
