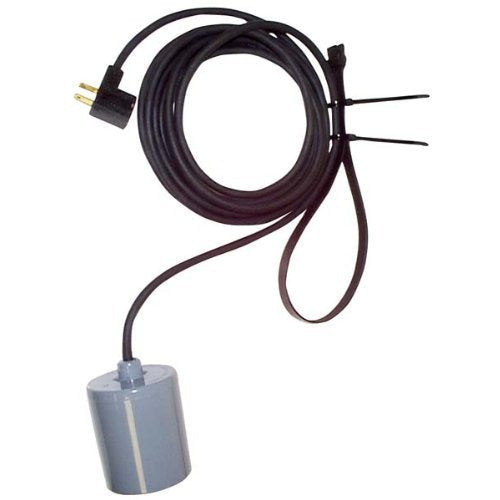

10-0032 Variable Float Switch with 15 ft. cord

• Simple installation
• Adjustable / variable level
• Standard 15’ (5 m) and 20’ (6 m) SJOW CPE cord with molded plug
• 10-0055 and 10-0065 – 10’ (3 m) cord standard
• Float constructed of durable PVC/polypropylene encasing variable level switch
• Standard normally open (NO) ‘pumps down’
• Optional normally closed available (NC) ‘pumps up’, consult factory
• Maximum operating temperature for 10-0748: 120 °F (49 °C), all other switches: 140 °F (60 °C)
• Float is omnidirectional (no ‘up’ side)
• Includes mounting clamp
• Designed for effluent, sewage and dewatering applications
• Variable level float switch, for use in 18” (46 cm) minimum diameter basins
• 10-0748, 25’ (8 m) cord standard, no molded plug, can be used as a control switch to operate an external magnetic or combination starter on 3 Ph pumps
• Vertical piggyback float switch, ideal for narrow diameter basins – 6-1/2” (16.5 cm) maximum cycle range
• Use recommendation chart for switch selection
