Home » Rehau » PEX Fittings » 317178-001 - 1" x 1" MPT EVERLOC+ LF Brass Adapter
Rehau

317178-001 - 1" x 1" MPT EVERLOC+ LF Brass Adapter

In stock
SKU: 317178-001
$18.54

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

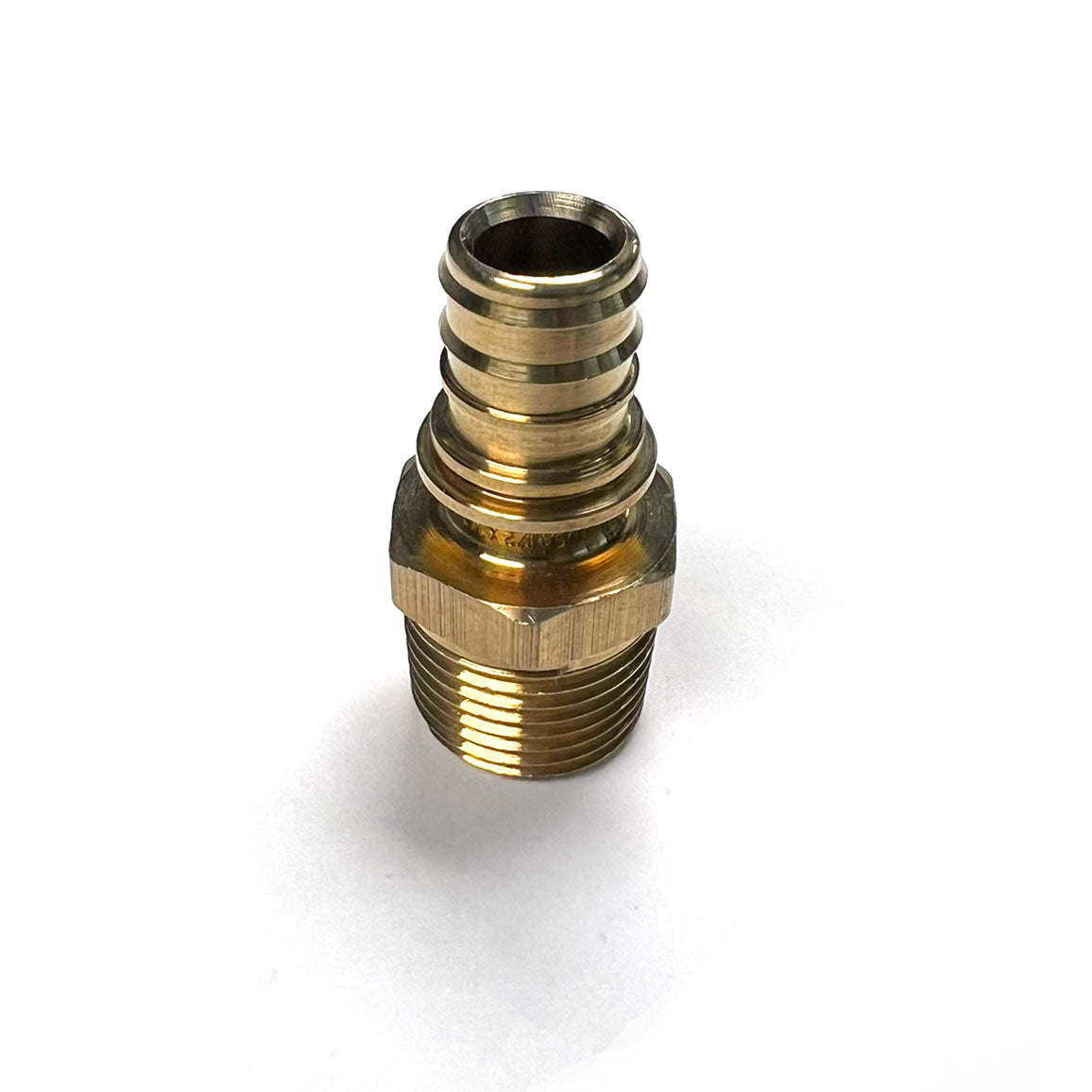

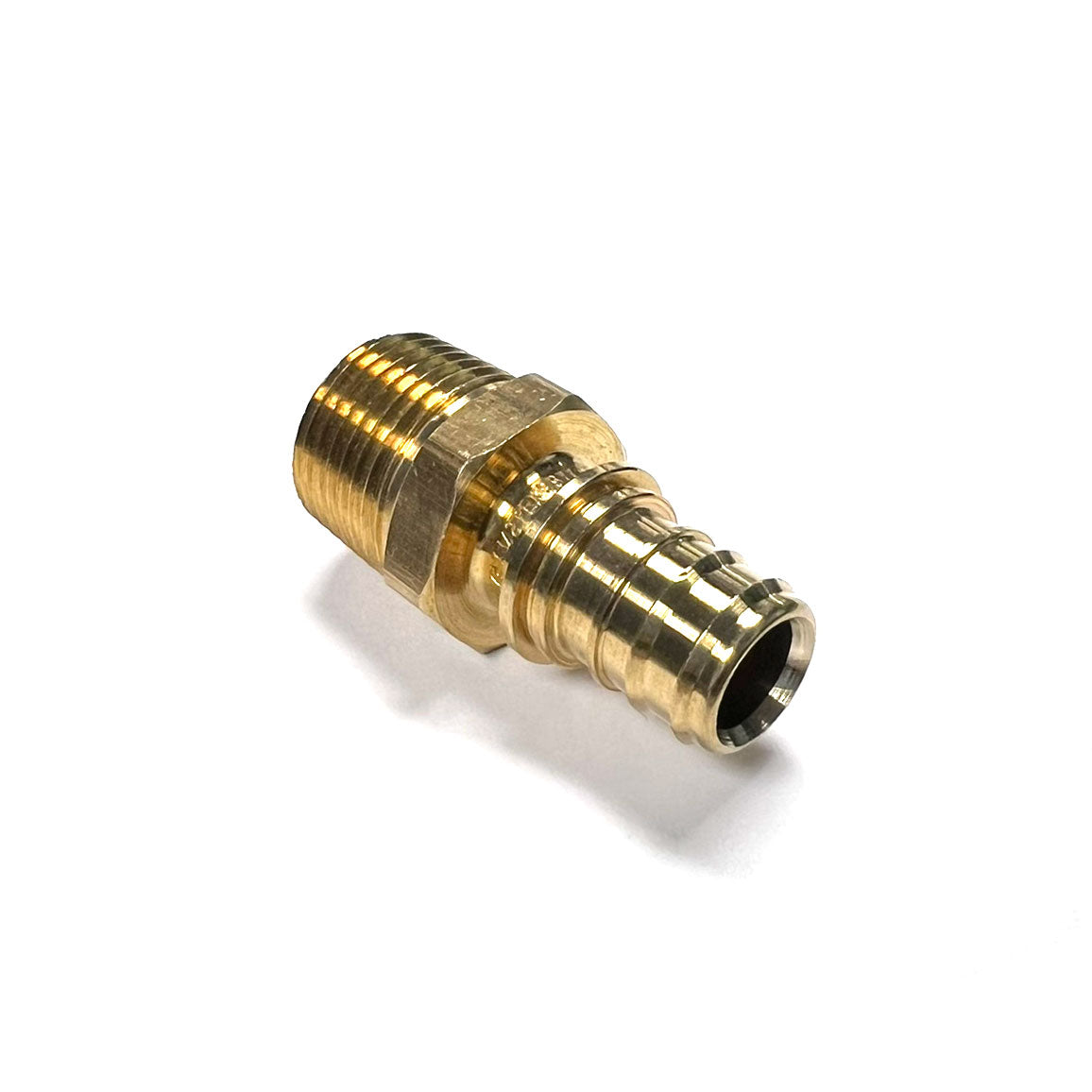

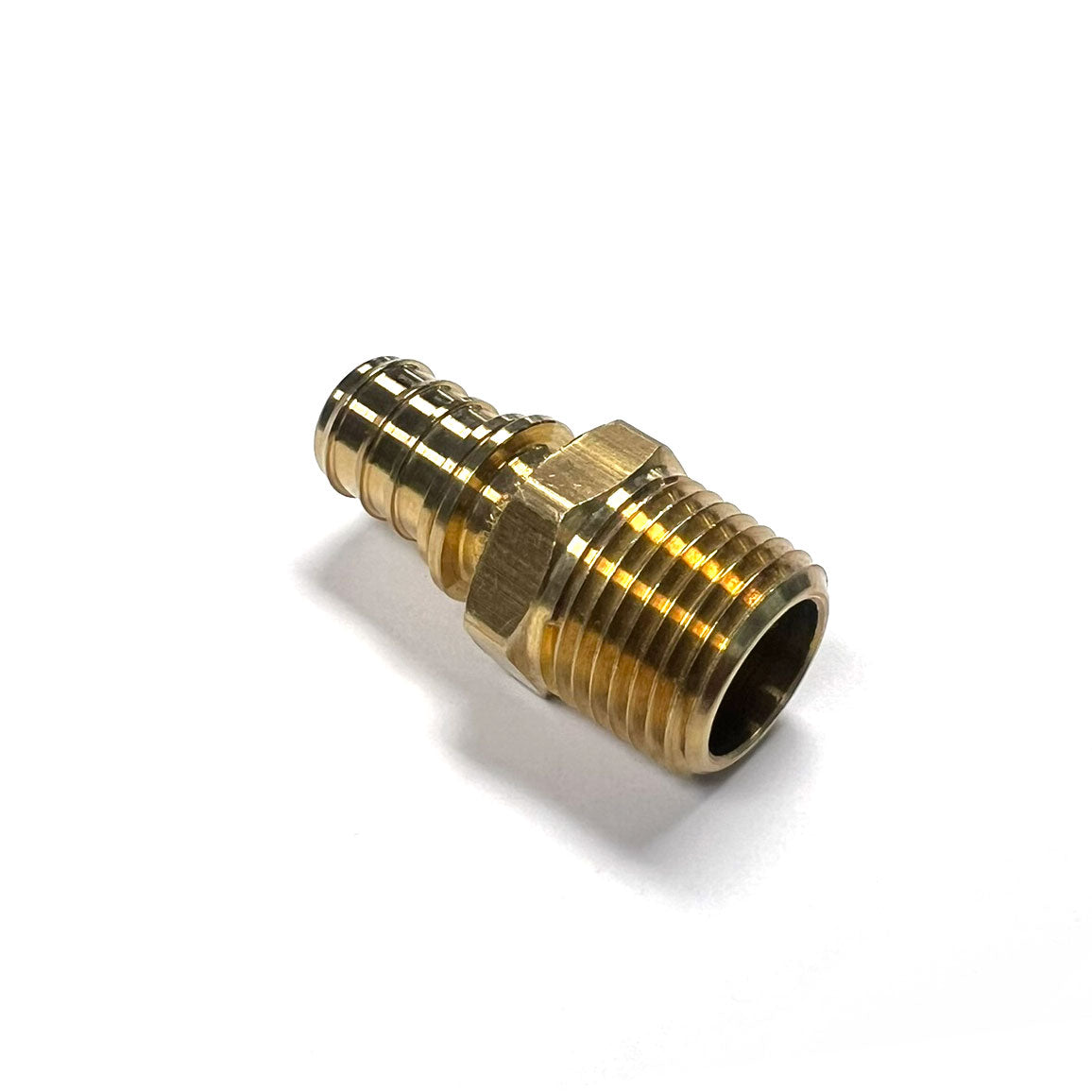

Rehau 317178-001 - 1" x 1" MPT EVERLOC+ LF Brass Adapter

EVERLOC+ compression-sleeve fittings and sleeves are designed specifically for use with REHAU PEXa pipe. The maximum temperature and pressure ratings of the EVERLOC+ compression-sleeve fitting system is in accordance with ASTM F877 and CSA B137.5 for SDR9 PEX, see REHAU pipe product submittals for ratings. The common designations MPT (M=male) and FPT (F= female) refer to National Pipe Taper (NPT) threads in accordance with ANSI/ASME B1.20.1. Installation is performed with EVERLOC+ compression-sleeve tools. Follow all published REHAU Technical Guidelines. All EVERLOC+ fittings and sleeves comply with the lead-free (LF) requirements of the U.S. Safe Drinking Water Act.

Features

  • Lead-Free
  • Adapter Fitting
  • Nominal Size: 1" x 1" MPT
  • Overall Length: 2.66"
  • Inside Diameter: 0.77"
  • Max Outside Diameter: 1.30"



PEHB000585
