Rheem ZP49K5E-PFV-800 - 1 PH R410A, 49400 BTU Compressor (230v)

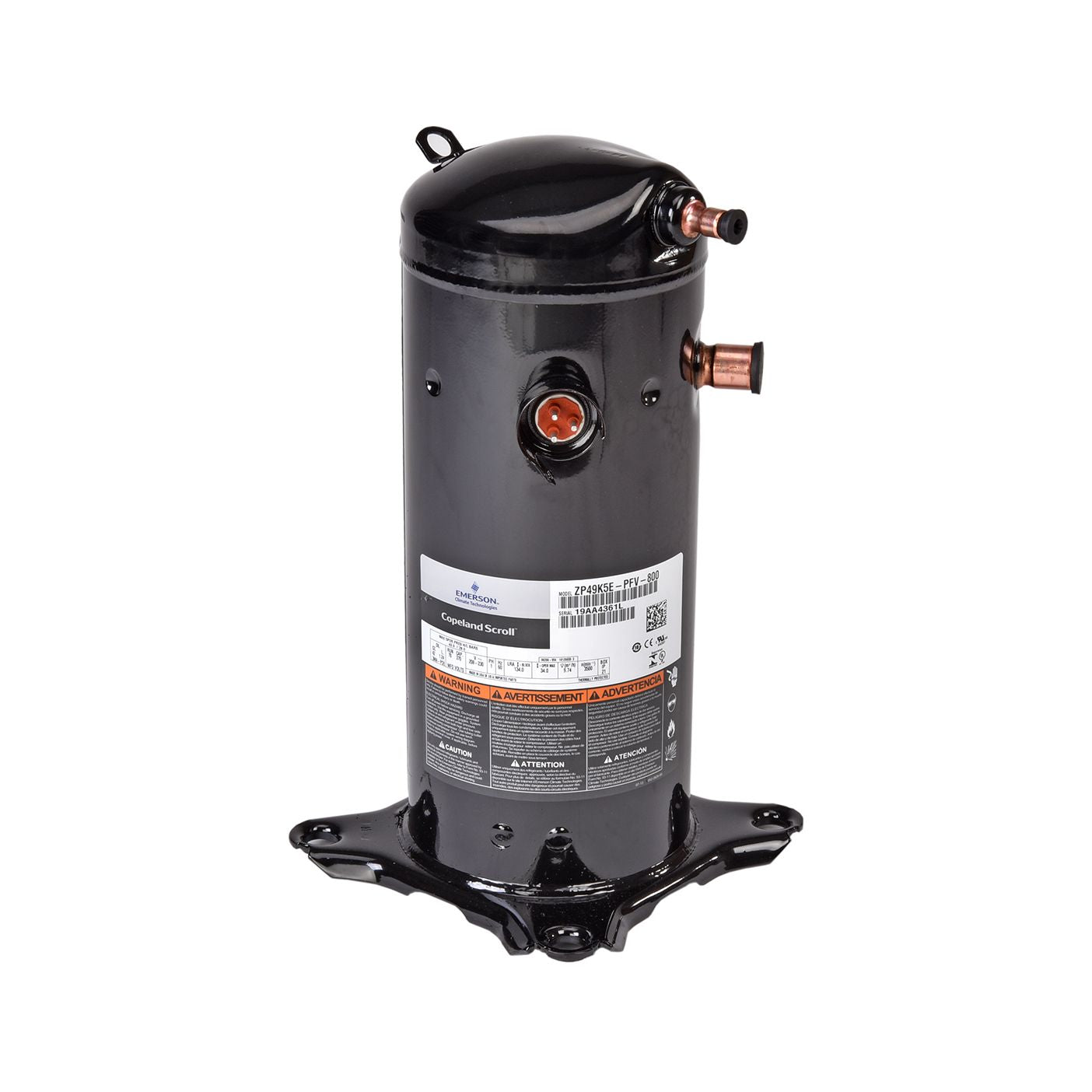

Rheem ZP49K5E-PFV-800 - Copeland Scroll Compressor - 49,400 BTU - 1 Phase - R410A - 230V
Copeland scroll compressors work with one scroll orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body while the orbiting scroll is coupled to the crankshaft. The orbiting motion creates a series of gas pockets traveling between the two scrolls. On the outer portion of the scrolls, the pockets draw in gas then move it to the center of the scroll where it's discharged. As the gas moves into the scroll's center, the temperature and pressure increase to the desired discharge pressure. Copeland Scroll ZPKC Summit compressor is designed for broad R-410A applicability in split systems, rooftops and chiller applications.
Features
- 5th generation fixed speed compressor
- Improved temperature protection
- Internal pressure protection
- R-410A ready
- Proven performance and reliability
- High efficiency motor
- For residential and light commercial applications
Technical Data
- Capacity (BTU/HR): 49400
- Type: Scroll
- Refrigerant: R-410A
- Input Voltage (V): 208
- Input Voltage (V): 230
- No. of Phases: 1
- Freq. (Hz.): 60
- Run Capacitor (uF/V): 70/370
- Start Kit: SK-A1
- Kick Start: 42-KS1
- Start Relay P/N: 42-25105-01
- Start Capacitor (uF/V): 88-106/330
- Start Capacitor Part Number: 43-17075-04
- Rated Load Current (A): 27.9
- Max. Continuous Current (A): 34.0
- Locked Rotor Current (A): 134.0
- Crankcase Heater Included?: No
- Crankcase Heater Part Number: 44-17402-45
- Soundwrap (Brinmar): 68-25217-10
- Refrigerant Oil: POE (85-32CST)
- Suction Line Location: 2
- Suction Line Height (in.): 11-3/4
- Suction Line Configuration: Stub Out
- Suction Line Size (in.): 7/8
- Discharge Line Location: 3
- Discharge Line Height (in.): 15-9/16
- Discharge Line Configuration: Stub Out
- Discharge Line Size (in.): 1/2
- Overall Compressor Height (in.): 16-9/16
- Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
- Shipping Weight: 72.8 lbs
Where Used
- EA14
- RACCZ036-072
- RGECZR
Replaces
- 922460
- 55-102045-101S
- 55-102045-101
- 55-102045-101
- 55-102045-101
- 55-102045-88
- 55-102045-101
- 55-102045-101S
- 55-102045-101
- 55-102045-101
- 55-102045-101S
- 55-102045-101
- 55-102045-101
- 55-102045-101
- 55-102045-101S
- 55-102045-101S
- 55-102045-101S
