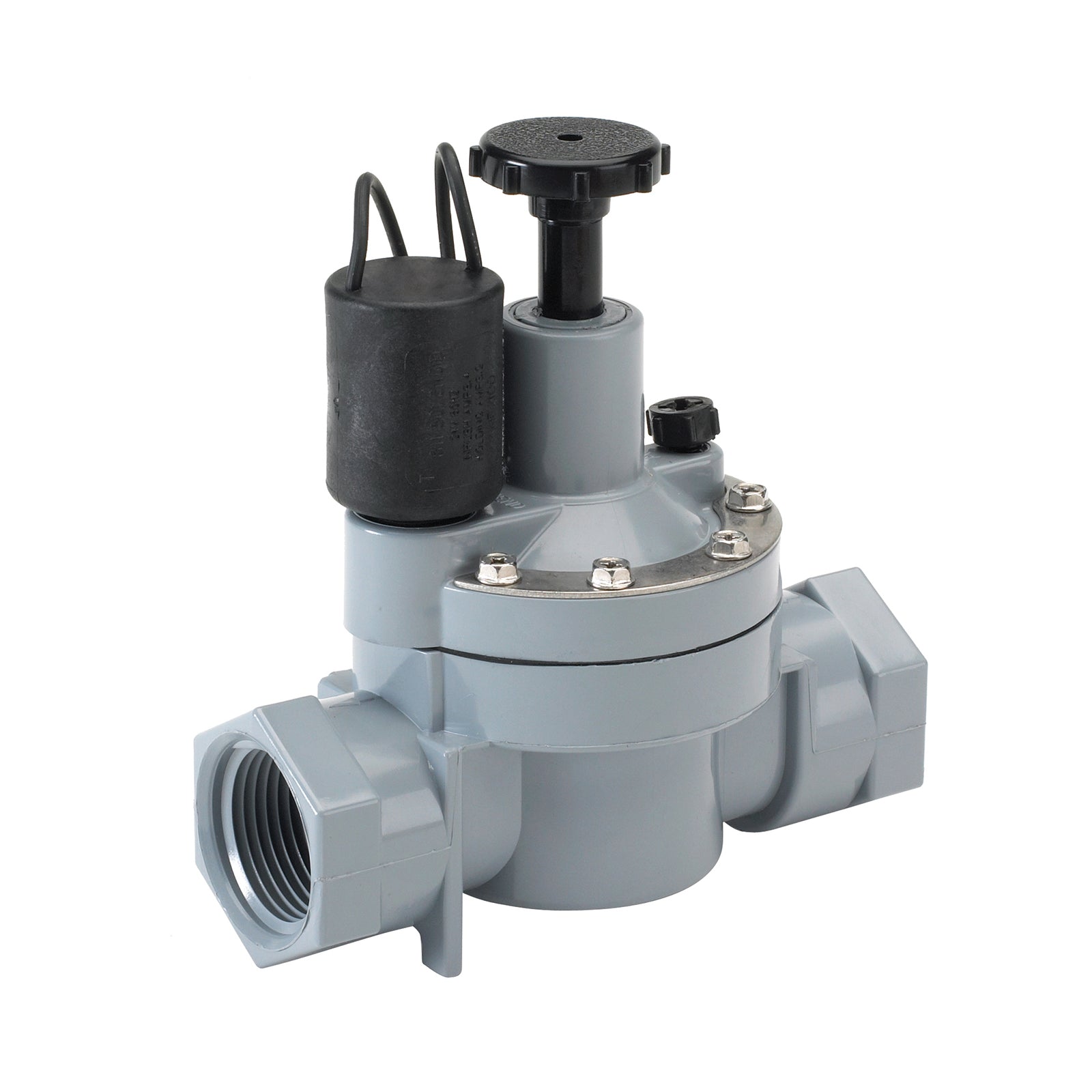

Irritrol 205TF - 1" Electric Irrigation Valve - Flow Control - 205 Series
The Irritrol 205 Series 1-inch plastic valve is the irrigation industry’s time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion- and UV-resistant PVC, the 205 Series features a high-flow, low-friction-loss-design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add to this valve’s wide popularity
Features:
- Heavy-duty, corrosion and UV-resistant PVC construction
- High-flow, low friction loss design

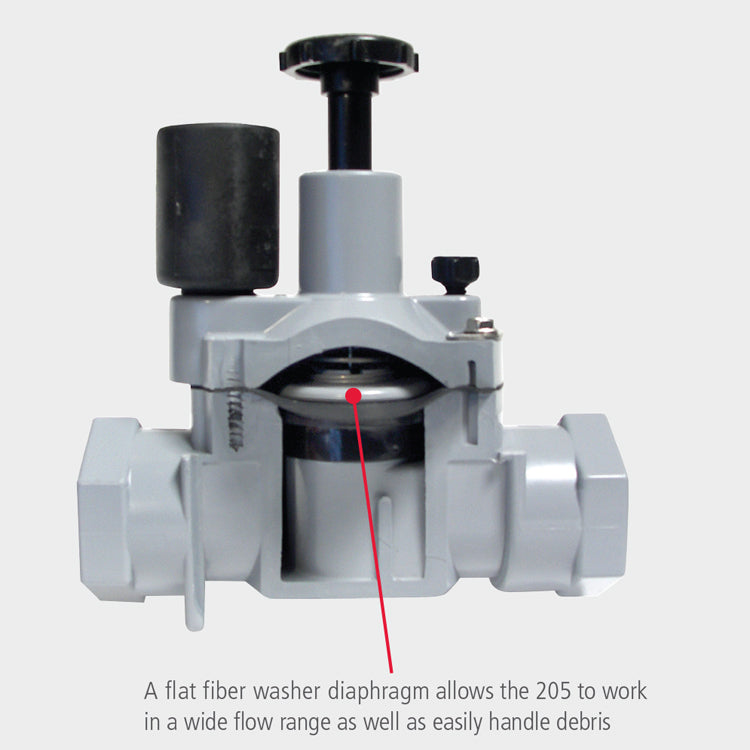

- Rugged, nylon-reinforced Buna-N diaphragm
- Full stainless steel metering system and floating bleed tube.
- Flow Range .25-30 GPM
- Holding Current .02 amp
- Holding Volt-Amp 24V ac-4.8 VA
- Inrush Current 04 amp
- Inrush Volt-Amp 24V ac-9.6 VA
- Solenoid 24V ac

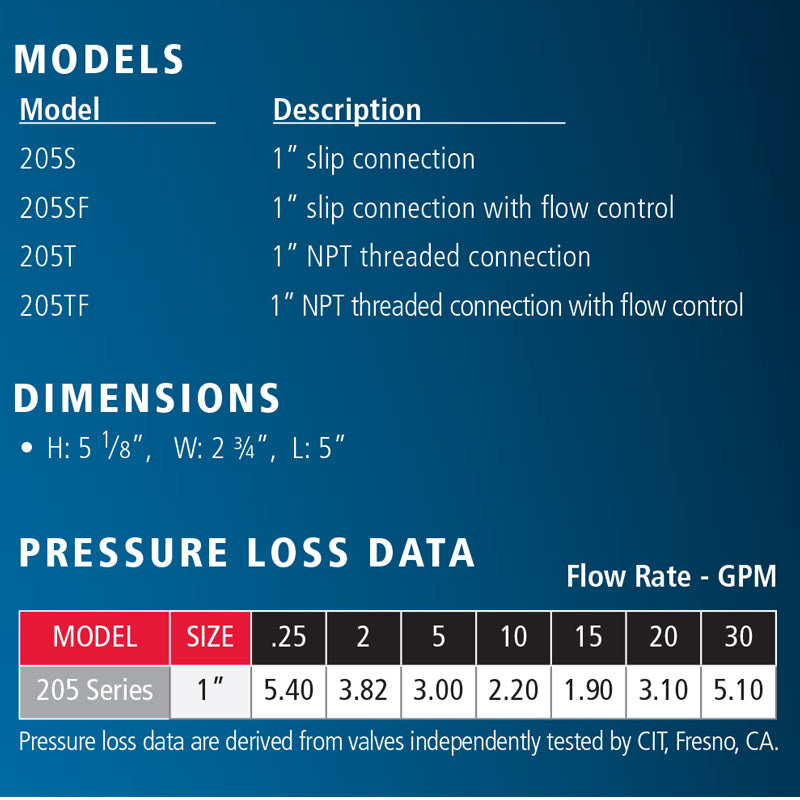

Dimensions:
- H: 5 1/8"
- W: 2 3/4"
- L:5"
IEZV100710
