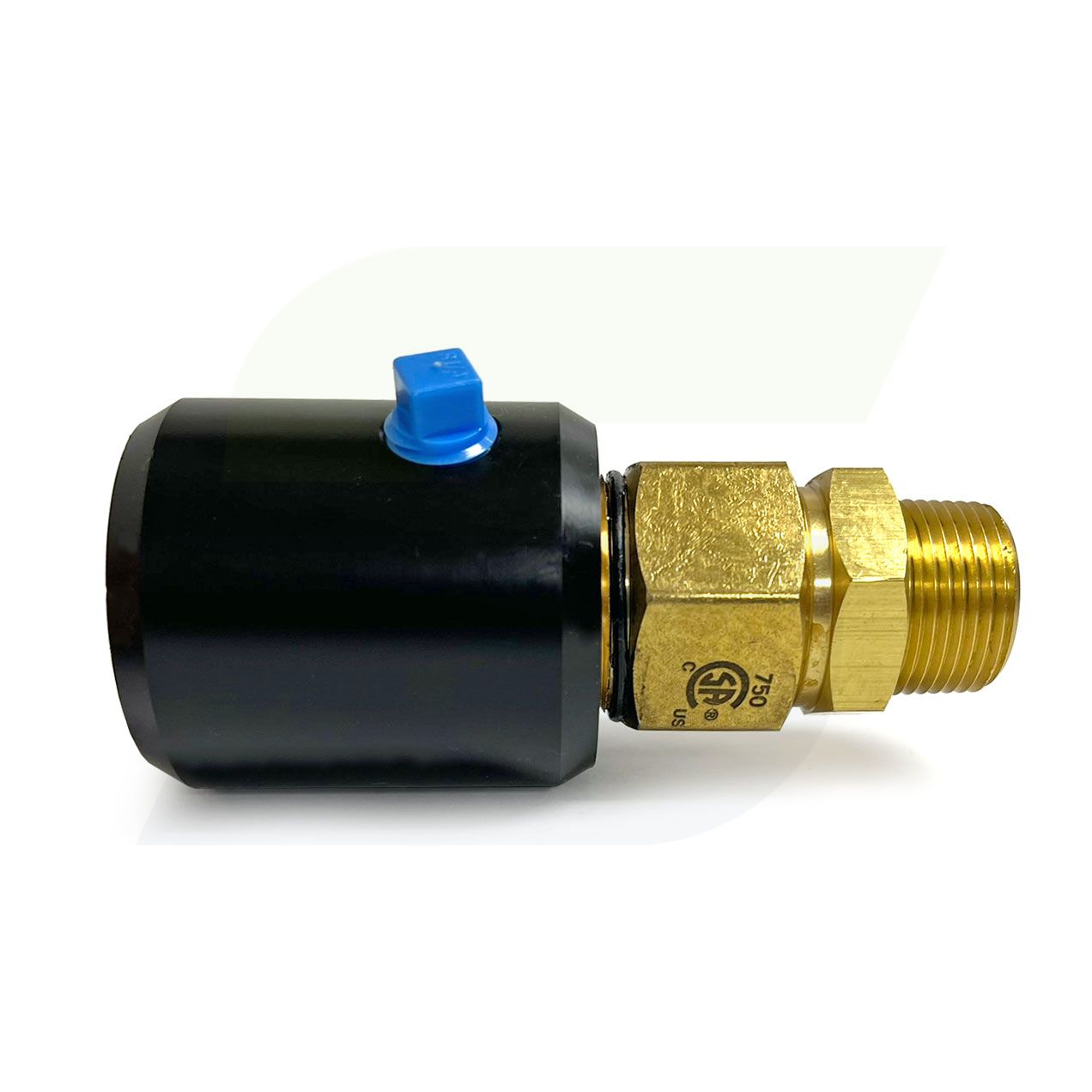

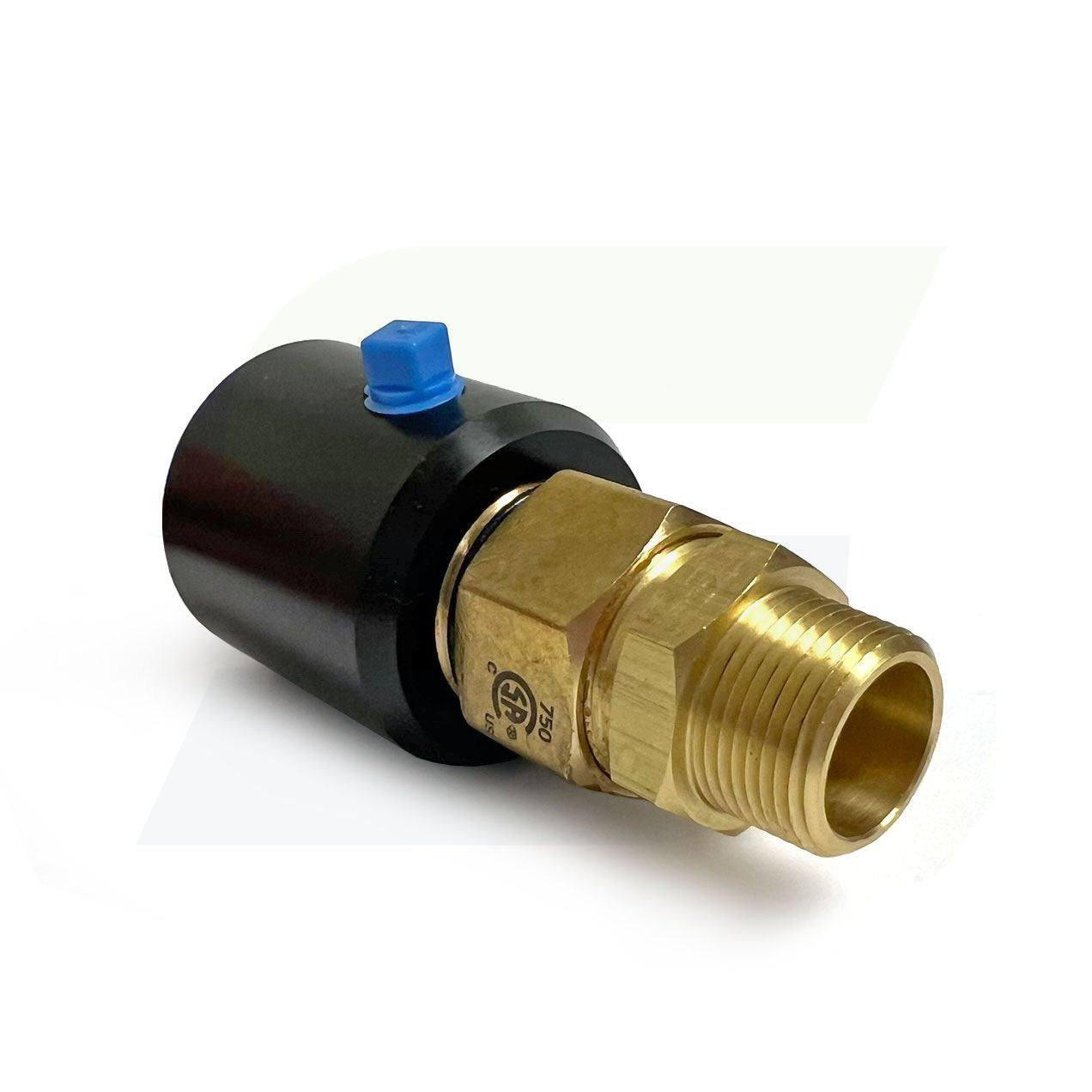

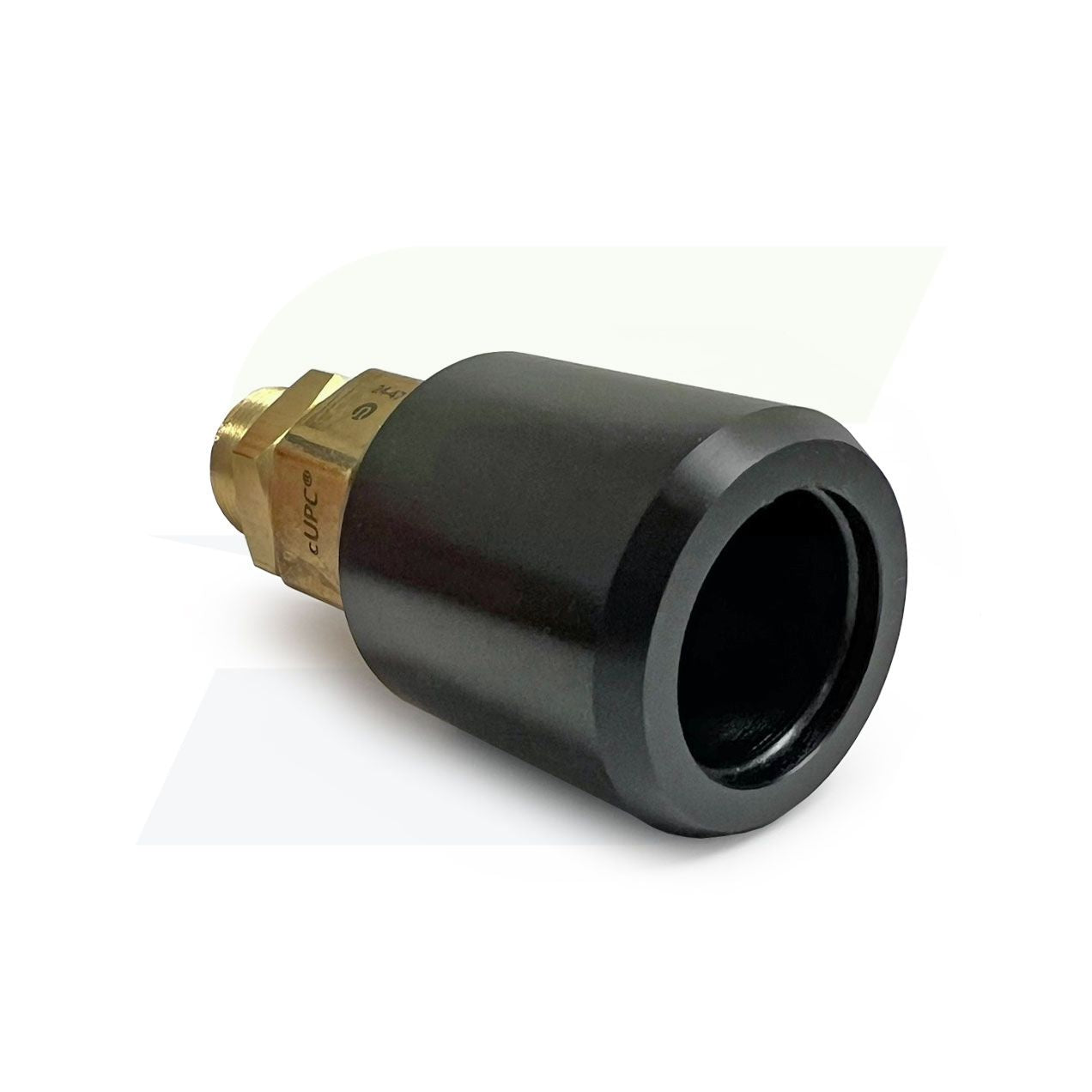

FGP-UGF-1000 - PS-II Adapter Assembly - 1" MNPT
Regular price
$78.50
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Submittal SheetTracPipe CounterStrike FGP-UGF-1000 - PS-II Adapter Assembly - 1" MNPT

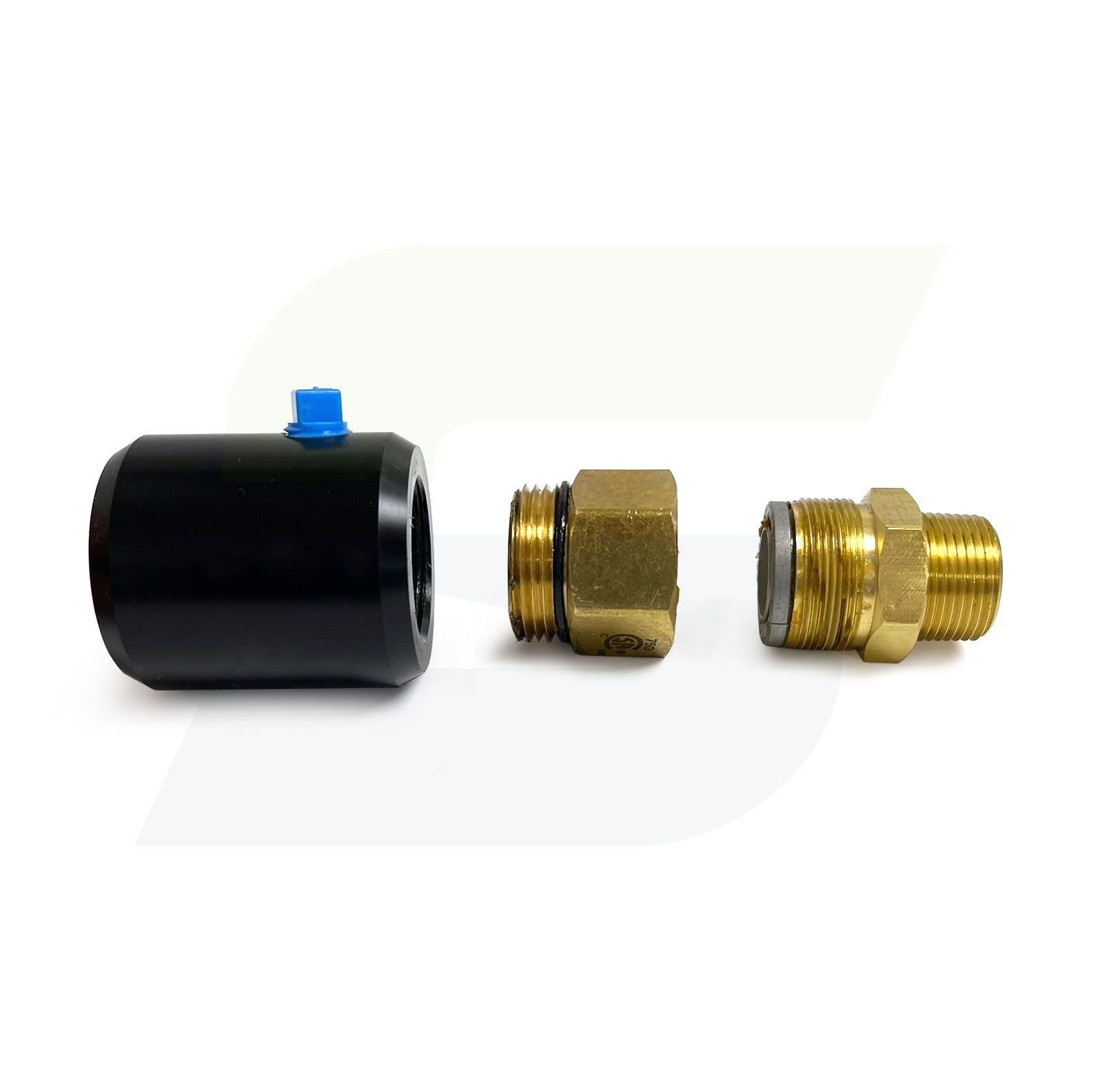

PS-II fittings are constructed from patented AutoFlare fittings with a plastic containment coupling and 1⁄4" NPT vent port. Fittings assemble without special tools.
Features
- Connection of TracPipe PS-II flexible gas piping to NPT fittings
- Materials:
- Nut, Adapter, Flange, Split Rings: Yellow Brass
- Insert and 1" Split Ring: Stainless Steel
- Specification Operating Pressure: 25 PSIG
- Max Test Pressure: 40 PSIG
- Operating Temperature Range: -20 to 200 degrees F
- Codes: ICC Codes (IFGC, IRC, IMC, IPC), NFPA 54 , UPC, CAN/CSA B149.1, NFPA 58
- Standards: ANSI LC1 / CSA 6.26, ANSI Z223.1
- Listings: CSA, ICC PMG 1046 / 1052, IAPMO (UPC) File No. 4665
- TracPipe or CounterStrike Size: 1"
- Diameter Across Flats: 1-5/8"
- Fitting Length: 4-3/4"
- Weight: 0.90 lbs
PTRAC10545
