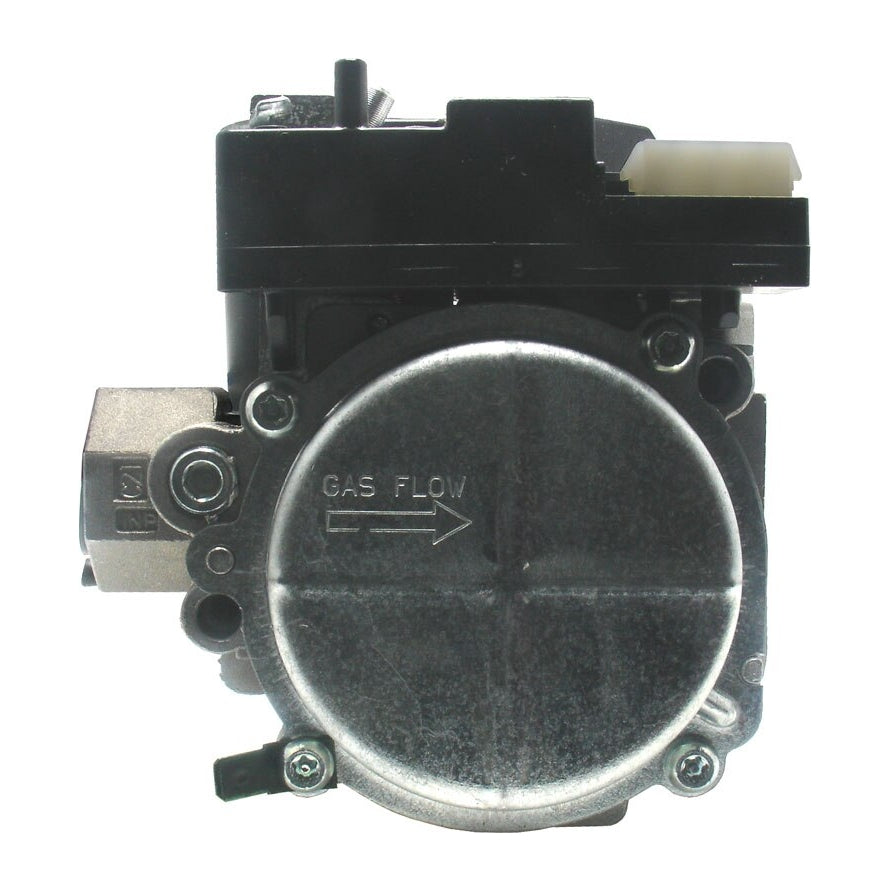

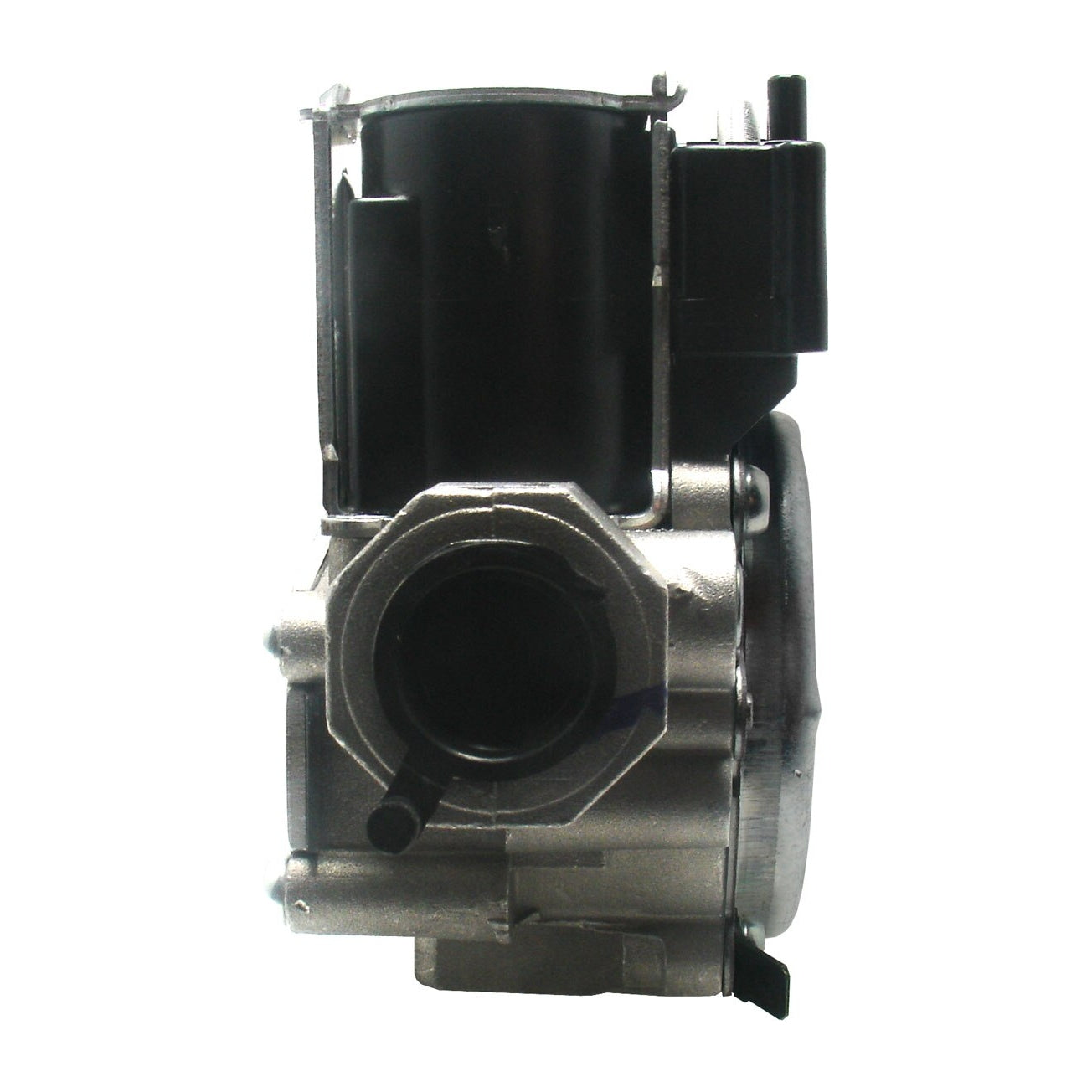

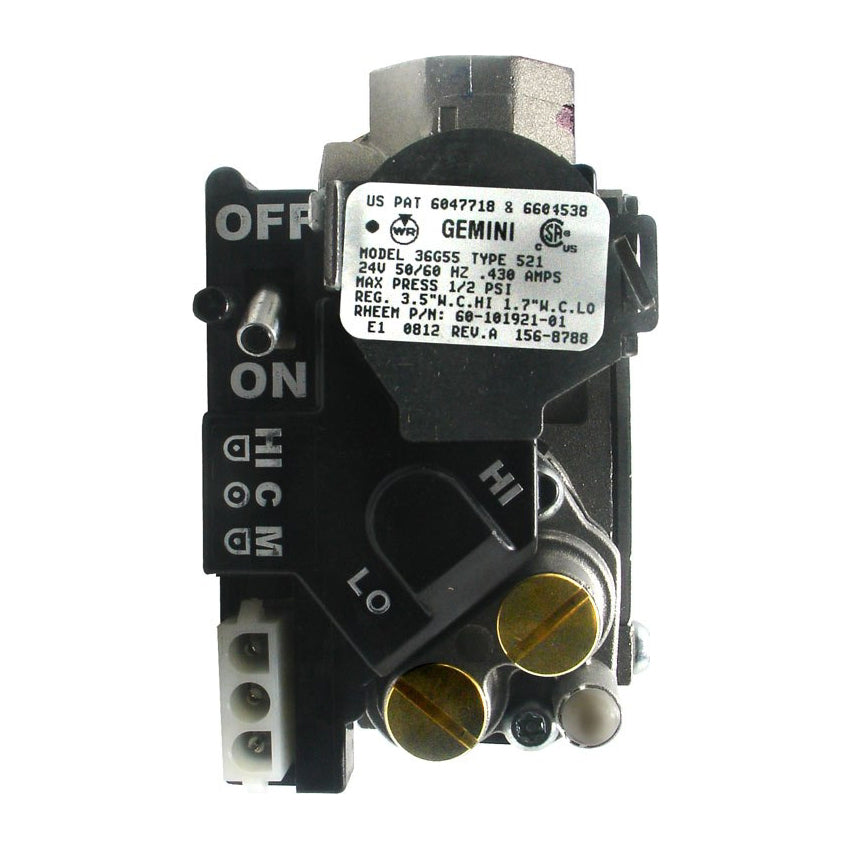

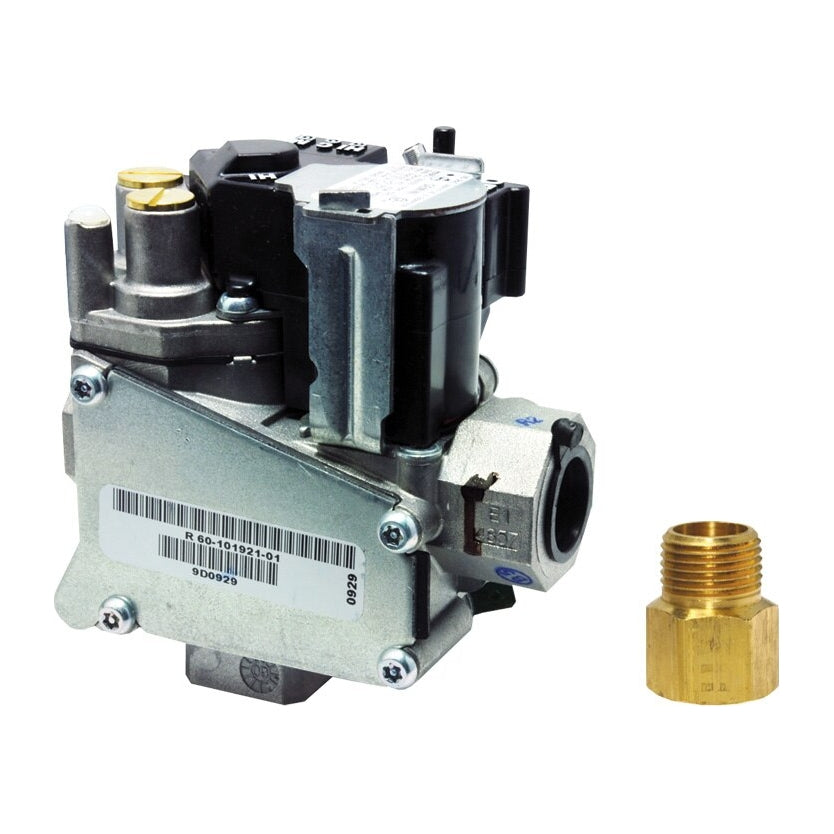

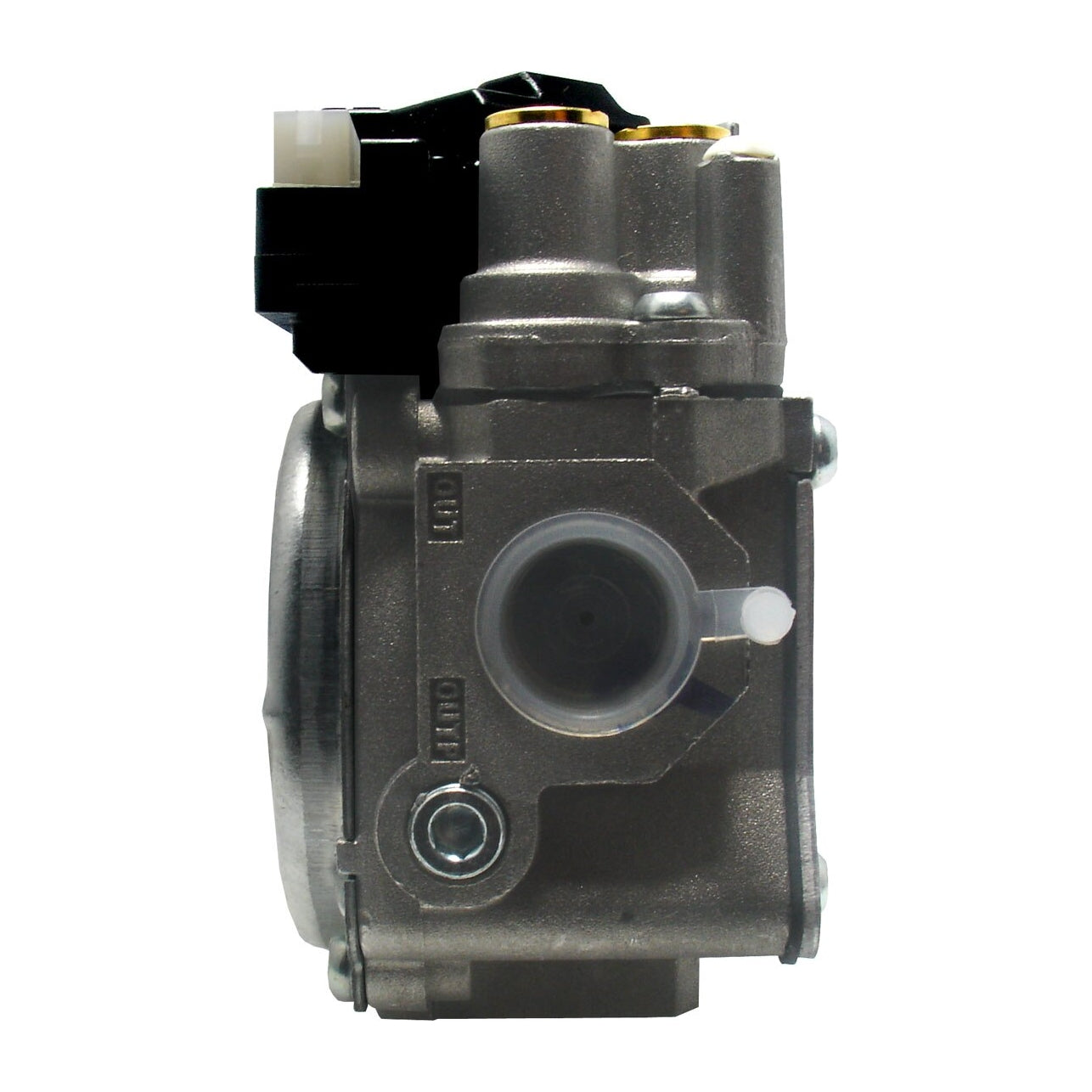

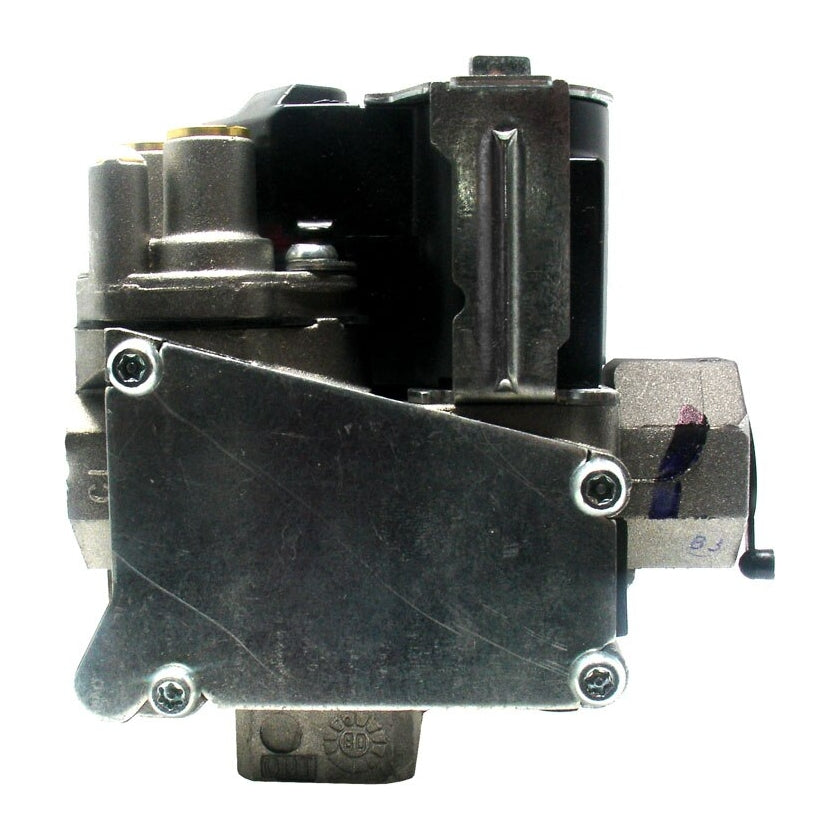

Rheem 60-101921-81 - 140,000 BTU Gas Valve 1/2" NPT x 1/2" NPT, 2 Stage

The 36G is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet todays maximum capacity, smaller size and high efficiency gas systems.

Features

• Inlet and outlet screens
• Quiet redundant
• Built-in pressure tap
• Quick-connect terminals (1/4 in.)

Specifications

• Capacity (BTU/HR @ 1 in. W.C. Pressure Drop): 140,000
• Fuel Type: Natural Gas
• Ignition System: Hot Surface / Direct Spark
• Input Fitting Size NPT: 1/2"
• LP Conversion Kit Included: No
• LP Spring Kit: 60-21193-06
• Natural Gas Spring Kit: 607018
• No. of Stages: 2
• Output Fitting Size NPT: 1/2"
• Valve Body Height: 4-1/4"
• Valve Body Length: 4"
• Valve Body Width: 2-7/16"
• Valve Series: 36G

Where Used: R802P-MSA,MXA, R802P-ZSA,ZSB, R802T-MSA,MXA, R802V-MSA,MXA, R802V-ZSA,ZSB, RGLK, RGLL, RGLQ, RGLR, RGPK, RGPL, RGPQ, RGPR, RGRK, RGTK,

HUZ2010637
