42-24196-83 - 1.11" W.C Pressure Switch Assembly
No reviews
In stock
Regular price
$32.80
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

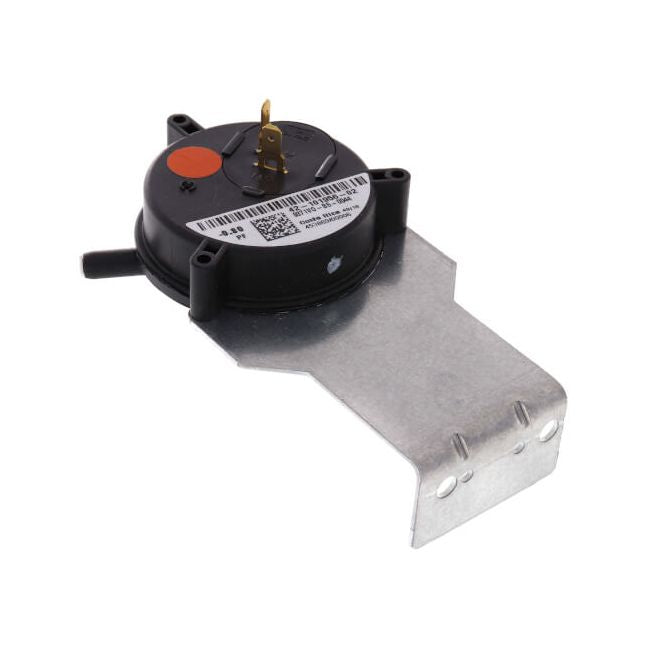

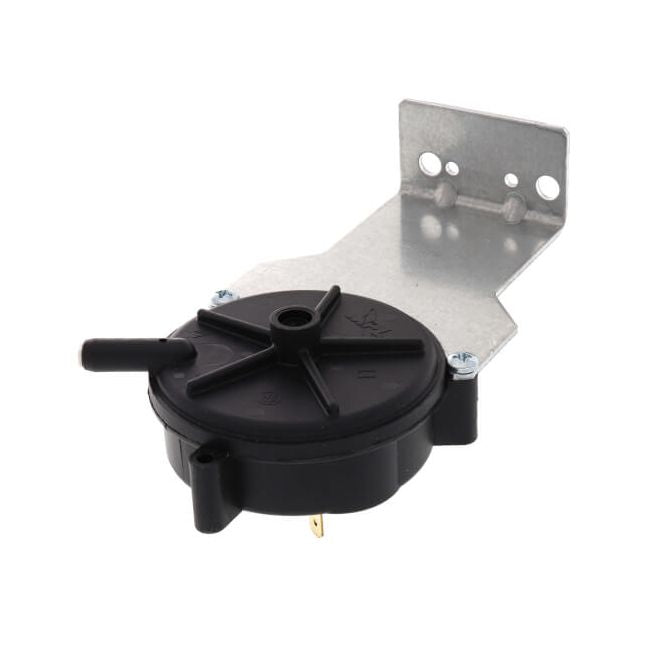

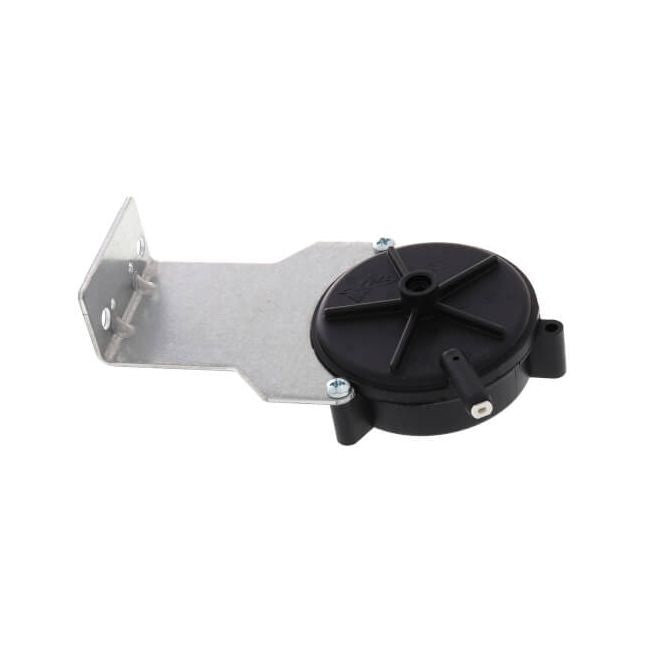

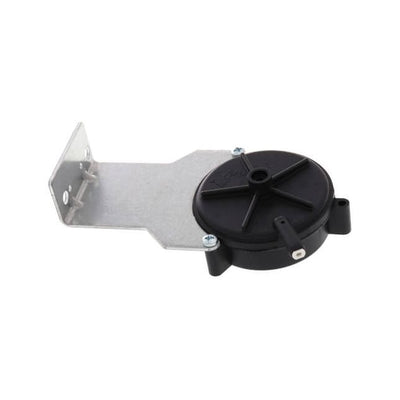

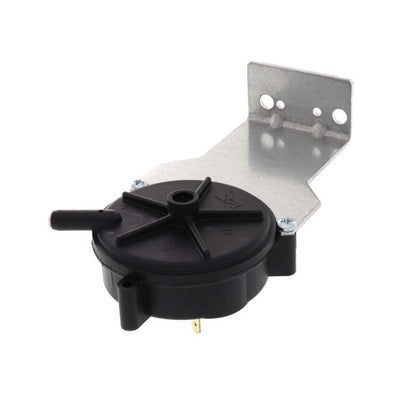

Rheem 42-24196-83 - 1.11" W.C Pressure Switch Assembly
The pressure switch is a protective device that opens and causes the HVAC system to stop operating under certain conditions which may be harmful. It is important to note that when a pressure switch is replaced, it is replaced with the exact switch. The Pressure settings are very delicate and any change in the setting by installing a different switch could cause a safety issue.
Features
- OEM genuine factory authorized part
- Instruction sheet included

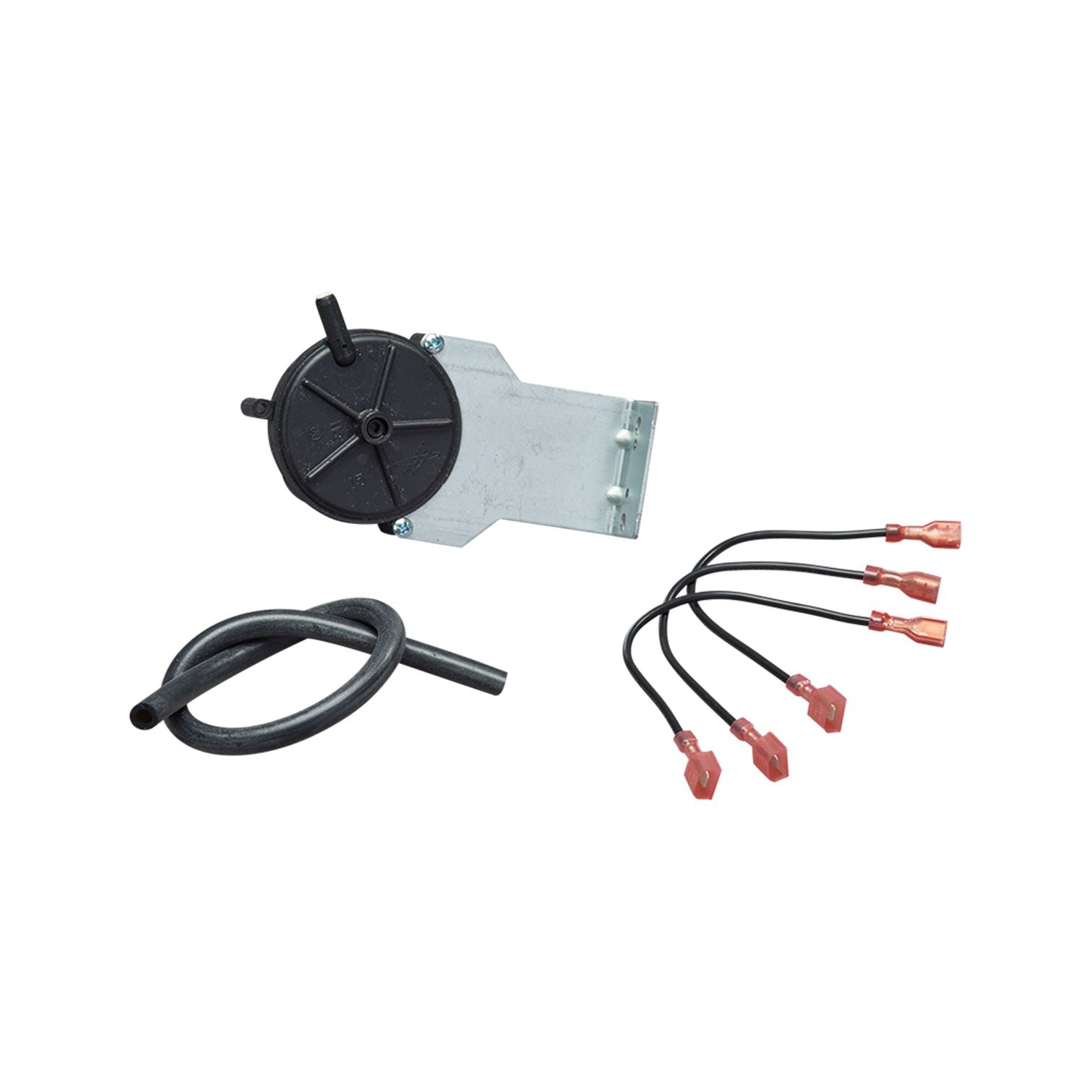

- Kit includes pressure switch assembly, wire assembly and 2ft. silicon rubber tubing
Kit Components
- (1) 42-101956-03 - Pressure Switch Assembly
- (1) 92-26177-535 - Instruction Sheet
- (3) AS-50201-09-49 - Wire Assembly
- (1) PD796585 - Silicone Rubber Tubing (2 ft. long)
Where Used
- RGRA
- RGTA
- 90RS
- 90TS
- RGRS
- RGTS
- RGSA
- RGRJ
- RGTJ
- 90RJ
- 90TJ
Replaces
- 42-101956-03
- 42-24196-03
- 42-24387-04
- 42-24012-04
