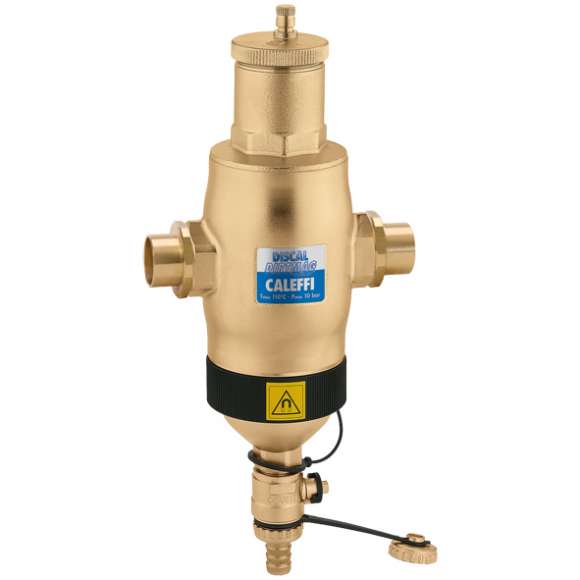

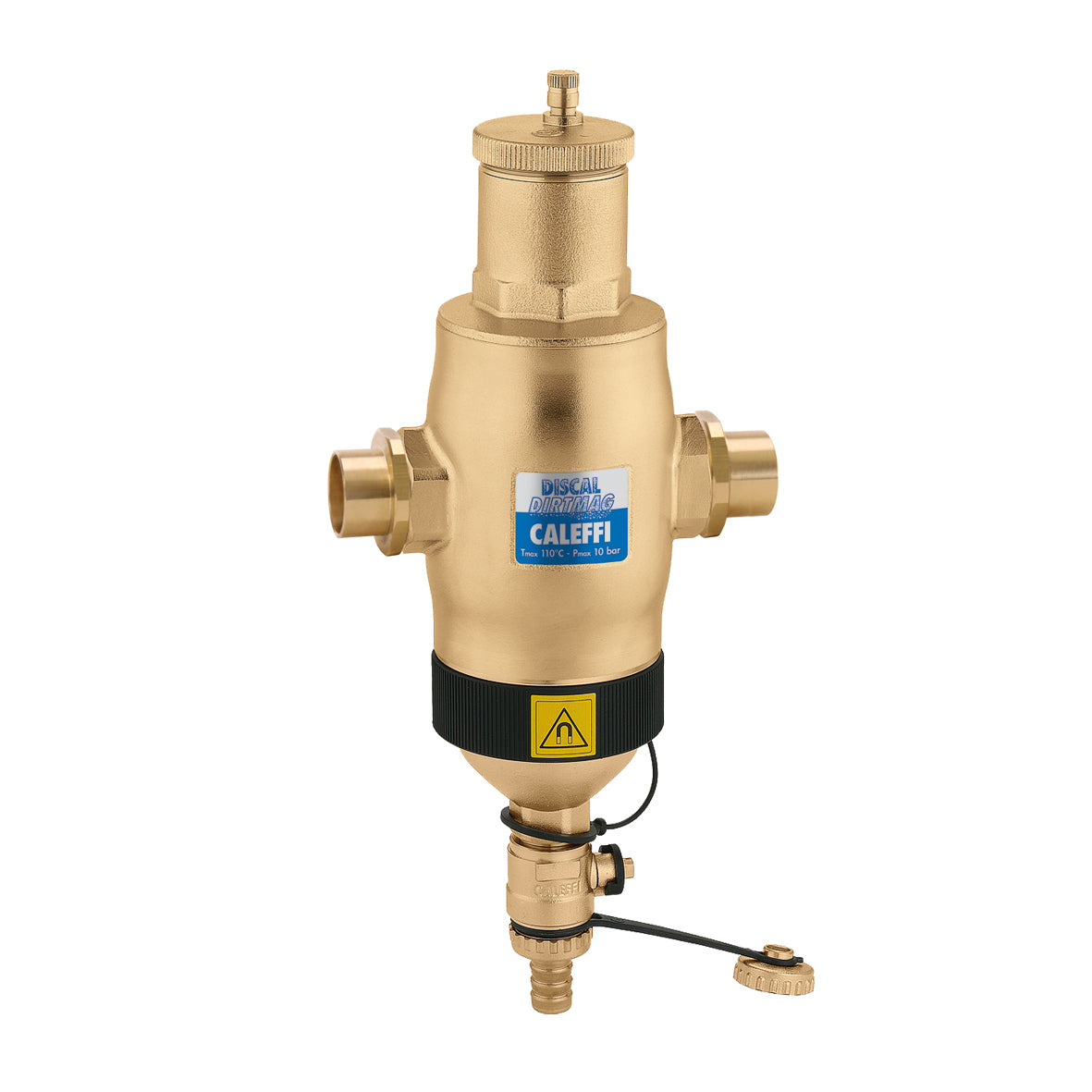

Caleffi 546197A - Discal DIRTMAG Air & Dirt Separator with Magnet - 1-1/4" Sweat
The Caleffi DISCALDIRTMAG magnetic air and dirt separator incorporates three important functions for hydronic systems: air separation, dirt separation and ferrous impurity separation. An internal screen element facilitates the coalescing and capture of micro-bubbles to facilitate high performance automatic air removal, while concurrently causing the capture of non-ferrous debris particles down to 5 micron size. A powerful magnetic field induced by rare-earth neodymium magnets facilitates the capture of ferrous impurities such as iron oxide down to microscopic size thus delivering 2½ times the ferrous impurity removal performance of standard air and dirt separators. The DISCALDIRTMAG saves on system installation and maintenance costs as three devices are combined into one. Additionally, all captured debris is blown down through the purge valve without taking the system offline. The circulation of fully de-aerated and cleaned water enables the equipment to operate under optimum conditions, free from noise, corrosion, or mechanical damage. Insulation shells are available separately for field installation on the brass DISCALDIRTMAG.
Function
Air and dirt separators are used to continuously remove the air and debris contained in the hydronic circuits of heating and cooling systems. The air discharge of these devices is very high. They are capable of automatically removing all of the air present in the system down to the microbubble level. The DISCALDIRT air and dirt separator also removes any solid impurities in the system. The impurities collect at the bottom of the device and can be flushed through the integral drain shut-off valve. The circulation of fully de-aerated and cleaned water enables the equipment to operate under optimum conditions, free from noise, corrosion, or mechanical damage. Insulation shells are available separately for field installation on the brass DISCALDIRT.
HCAL123136
