B3104 Specification Sheet

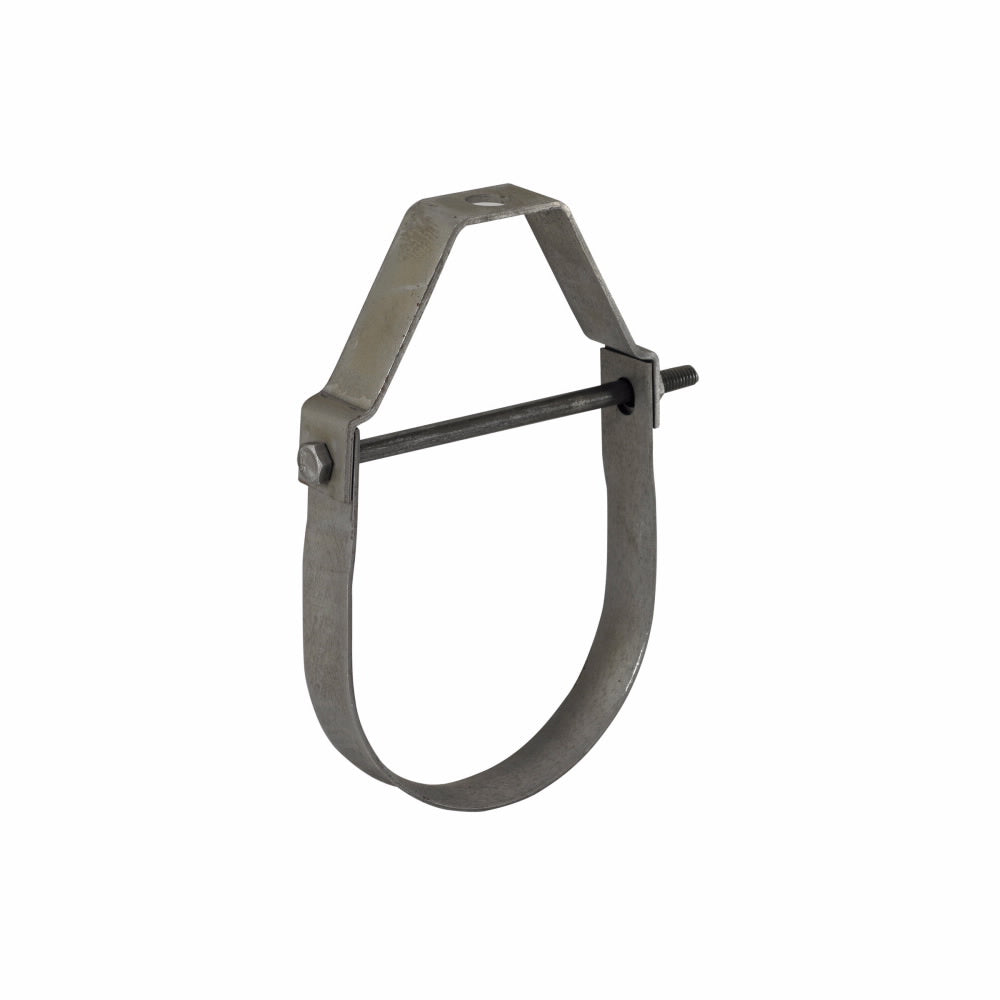

B-Line B3104-11/4 - 1-1/4" Light-Duty Clevis Hanger - CL710

Eaton B-Line series light duty clevis hanger, 0.8750" H x 3.75" L x 2.75" W, Steel, Plain, 1.25" max pipe size. Recommended for the suspension of light stationary pipe allowing for vertical adjustment.

Features

  • Size Range: 1/2" (15mm) to 4" (100mm) pipe
  • Material: Steel
  • Approvals: Underwriter's Laboratories Listed in the USA (UL) and Canada (cUL) for sizes 3/4" (20mm) thru 4" (100mm).
  • Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 12 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 1.

Specifications

  • Nominal Pipe Size: 1-1/4"
  • Rod Size: 3/8"
  • Product Length: 3.75"
  • Product Width: 2.75"
  • Product Height: 0.875"
  • Product Weight: 0.29 lb
