1-1/2" Light-Duty Clevis Hanger - CL710

In stock
SKU: B3104-11/2
Regular price $3.95

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

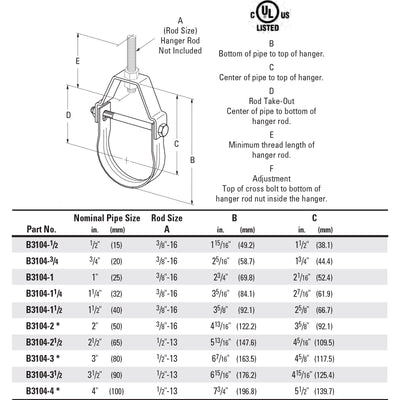

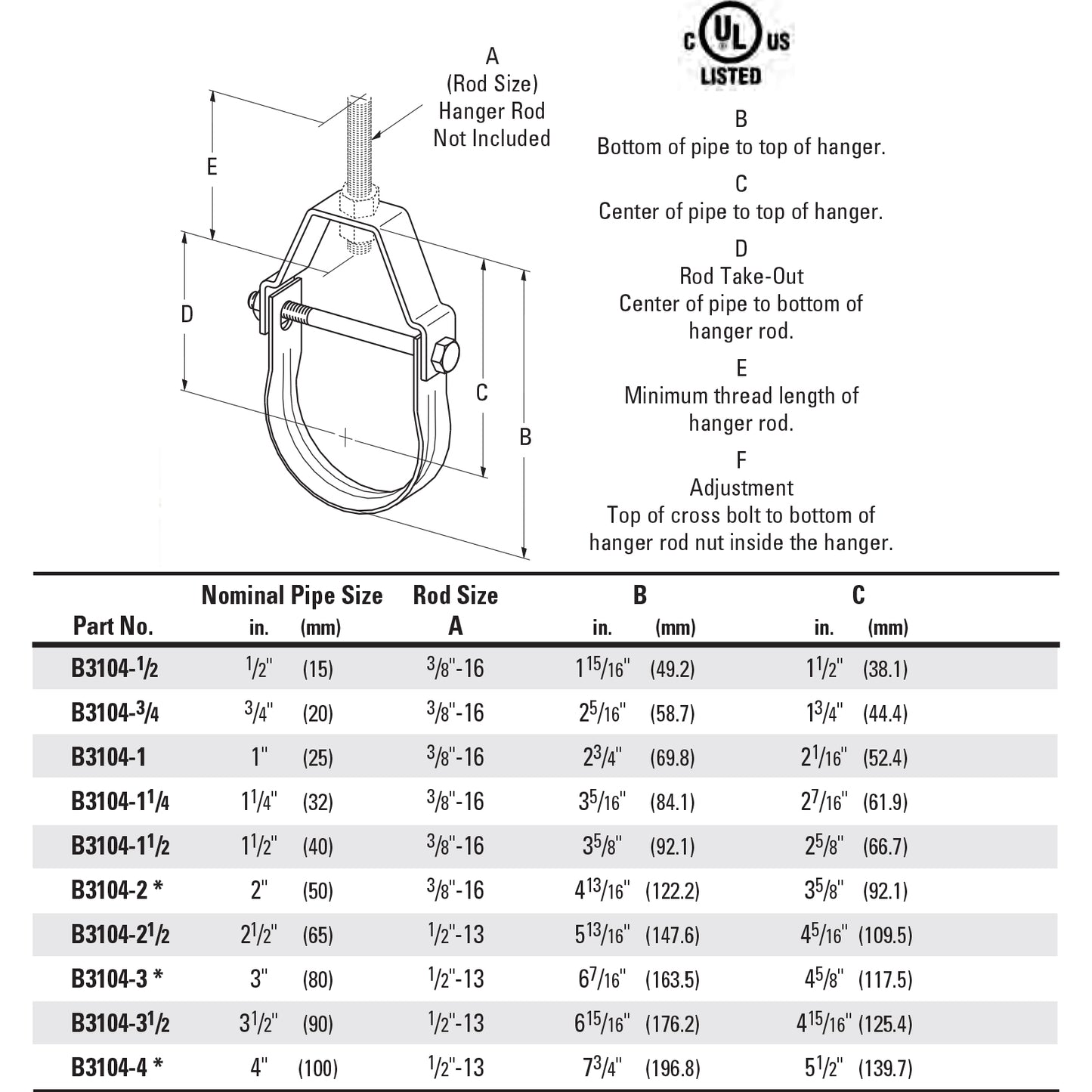

B3104 Specification Sheet

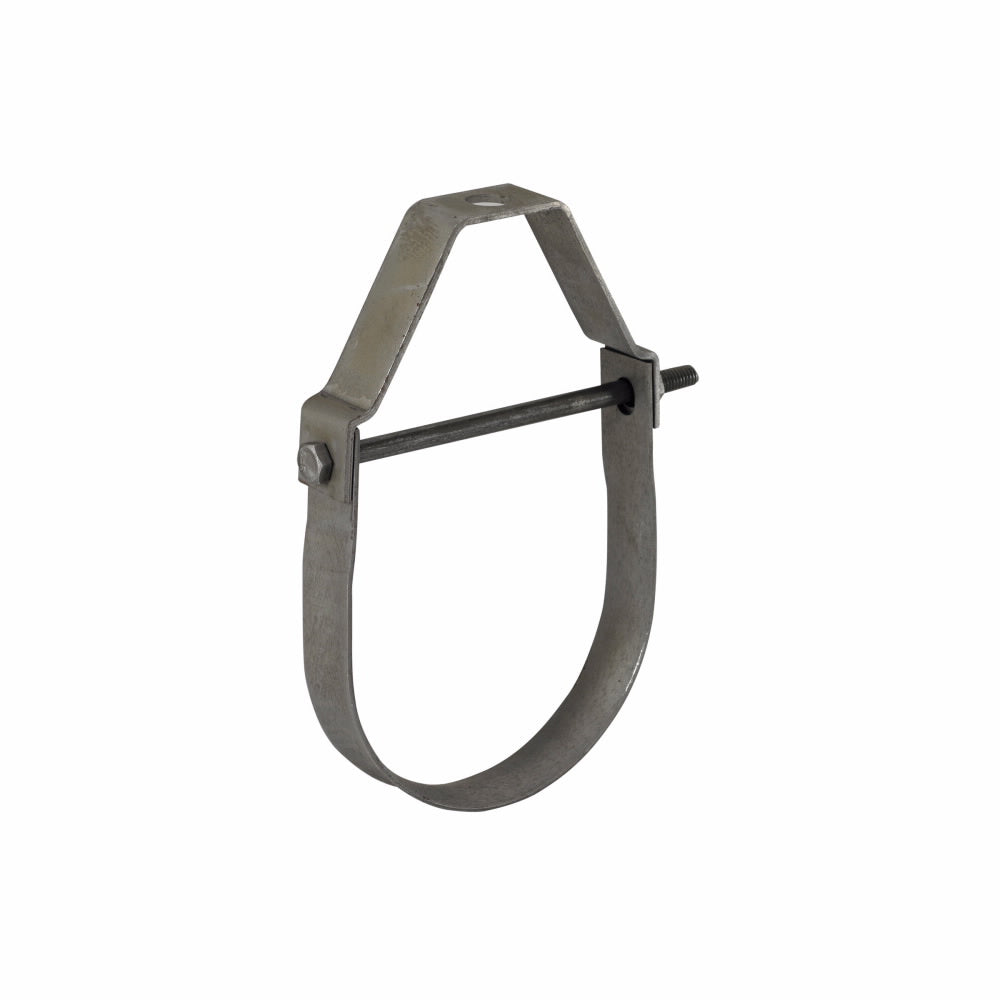

B-Line B3104-11/2 - 1-1/2" Light-Duty Clevis Hanger - CL710

Eaton B-Line series light duty clevis hanger, 0.8750" H x 4.2810" L x 3" W, Steel, Plain, 1.5" max pipe size. Recommended for the suspension of light stationary pipe allowing for vertical adjustment.

Features

  • Size Range: 1/2" (15mm) to 4" (100mm) pipe
  • Material: Steel
  • Approvals: Underwriter's Laboratories Listed in the USA (UL) and Canada (cUL) for sizes 3/4" (20mm) thru 4" (100mm).
  • Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 12 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 1.

Specifications

  • Nominal Pipe Size: 1-1/2"
  • Rod Size: 3/8"
  • Product Length: 4.281"
  • Product Width: 3"
  • Product Height: 0.875"
  • Product Weight: 0.3 lb




PHS1414757
