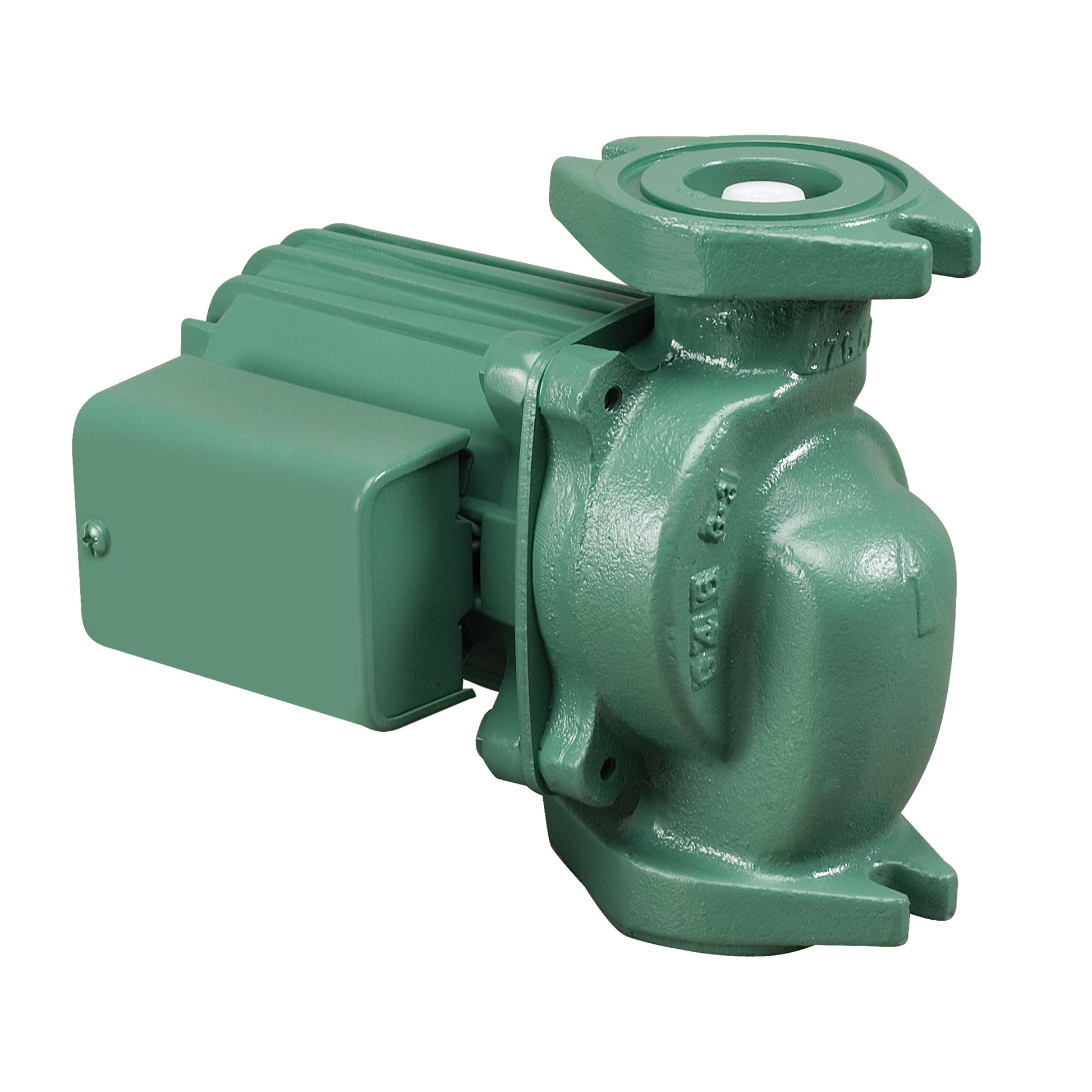

0010-F3-1IFC - Cartridge Circulator - Cast Iron, Flanged, Integral Flow Check, 1/8 HP
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Taco 0010-IFC Instruction Sheet
0010 Cast Iron Circulator with Integral Flow Check, 1/8 HP
Application The 0010-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00®circulators. Ideal for residential or light commercial hydronic or radiant heating, hydro-air fan coils, indirect water heaters or domestic water recirculation systems. By locating the IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. Available in Cast Iron or Stainless Steel construction.
Features:
- Integral Flow Check (IFC®)
- Prevents gravity flow
- Eliminates separate in-line flow check
- Reduces installed cost, easy to service
- Improved performance vs. In-line flow checks
- Unique replaceable cartridge- Field serviceable
- Unmatched reliability - Maintenance free
- Quiet, efficient operation
- Direct drive - Low power consumption
- Self lubricating, No mechanical seal
- Standard high capacity output - Compact design
- Wide range of applications
- Cast Iron construction, Flanged connections
Performance Data:
- Max. Flow: 30 GPM
- Max. Head: 9 Feet
- Min. Fluid Temperature: 40˚F (4˚C)
- Max. Fluid Temperature: 230°F (110˚C)
- Max. Working Pressure: 150 psi
- Connection Sizes: 3/4”, 1”, 1-1/4”, 1-1/2” Flanged
