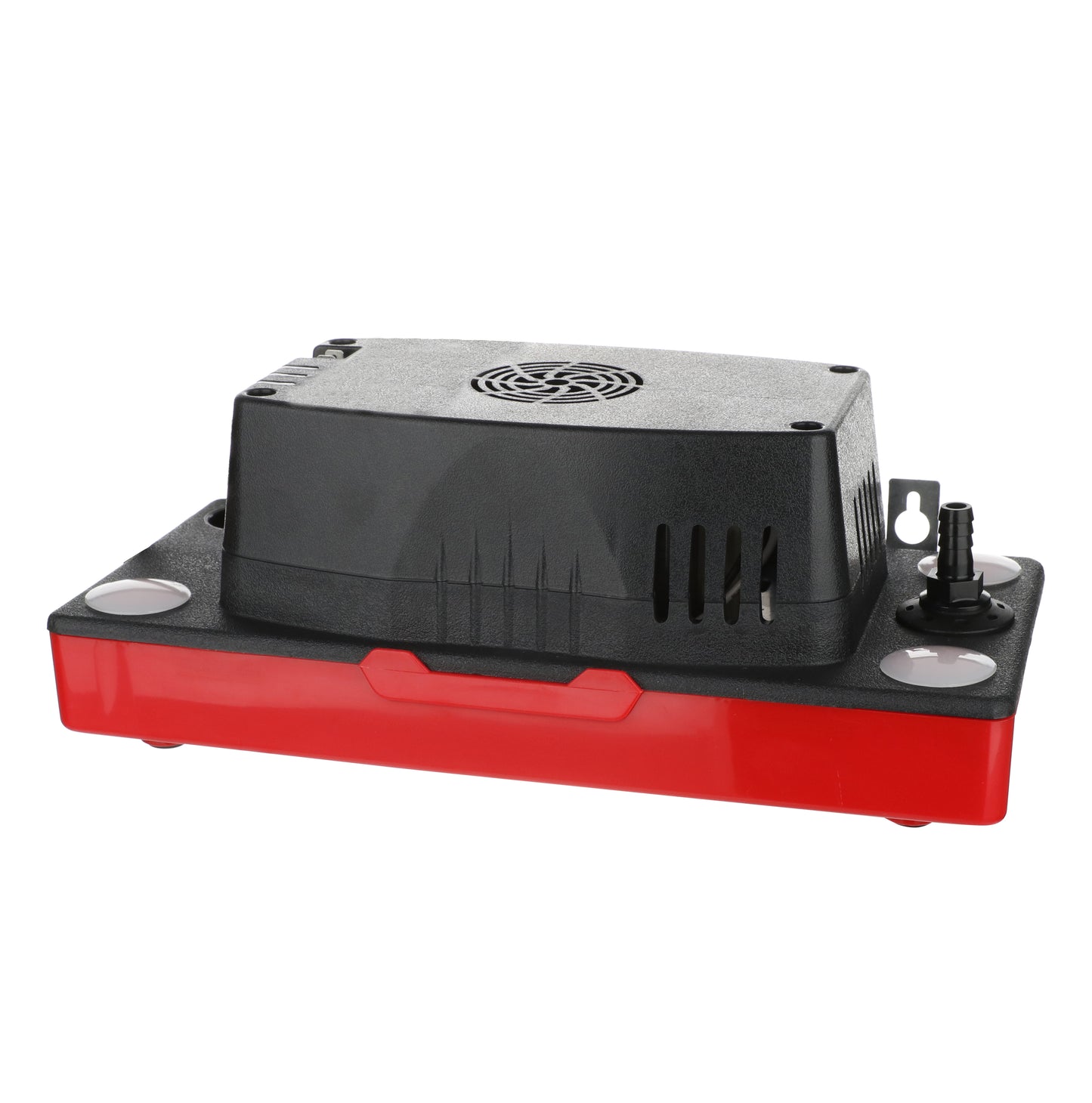

DiversiTech CP-22LP Low Profile Condensate Pump

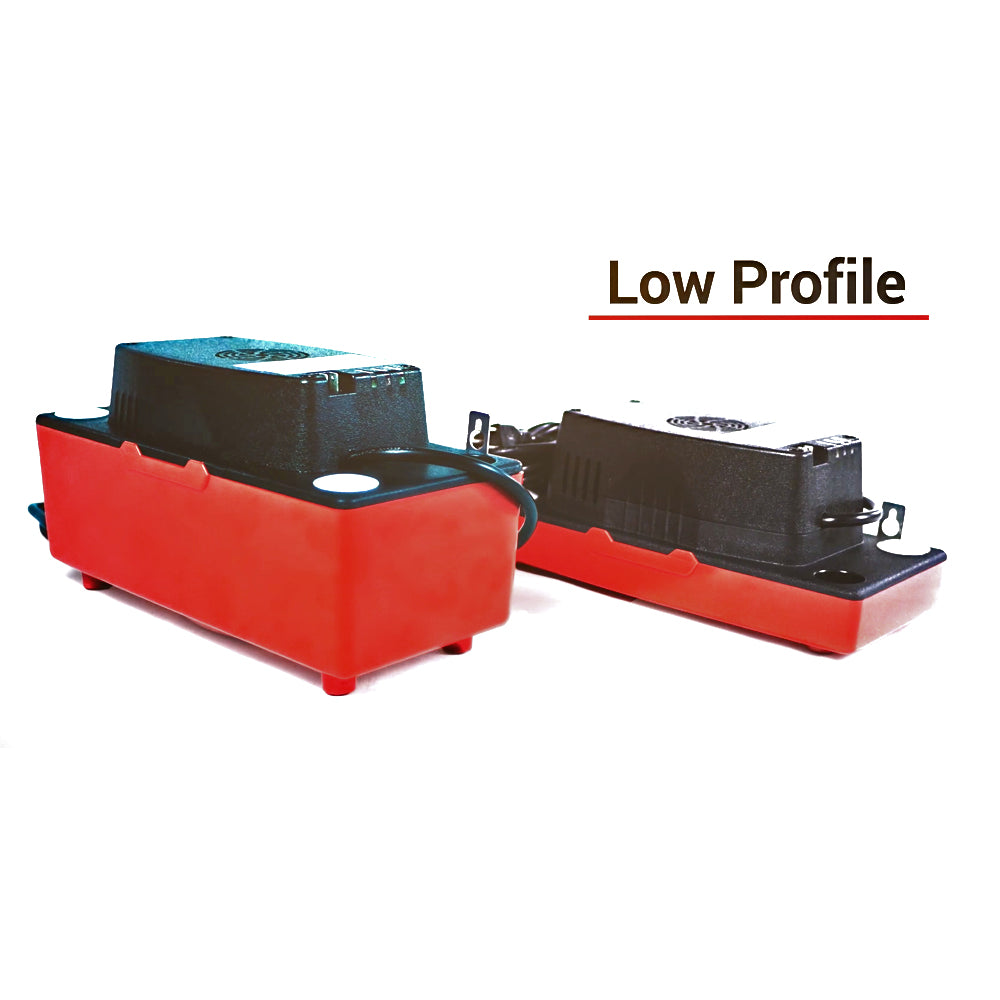

The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4-3/8" tall so it’s a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degree F. UL Listed File Numbers E253155 and E258186.
Vibration Isolation - The elastomeric motor mounting gasket dampens vibration.
Indicator Lights - The red, yellow, and green indicator lights show the pump status. The green shows the power applied to the pump, yellow shows the pump is running, and red is for high level alarm.
Rubber Feet - The rubber feet that support the CP-22 Condensate pump help to dampen vibration which reduces noise.
Four Inlet Holes - The four inlet versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for durability.
Removable Check Valve - The CP-22 Condensate Pump features a removable check valve which allows for hassle free cleaning.
Overflow Safety Switch - The 1/4" quick connect terminals provide easy connection to the built-in overflow switch. Two terminals are provided allowing the installer flexibility to connect the air handler shut-down. The switch features SPDT isolated contacts ready for connection to building automation systems.
Metal Hang Tabs - The CP-22 Condensate Pump comes equipped with shatterproof stainless steel hang tabs which have hole-and-slot design for easy mounting. The tabs are located on convenient 8" centers.
