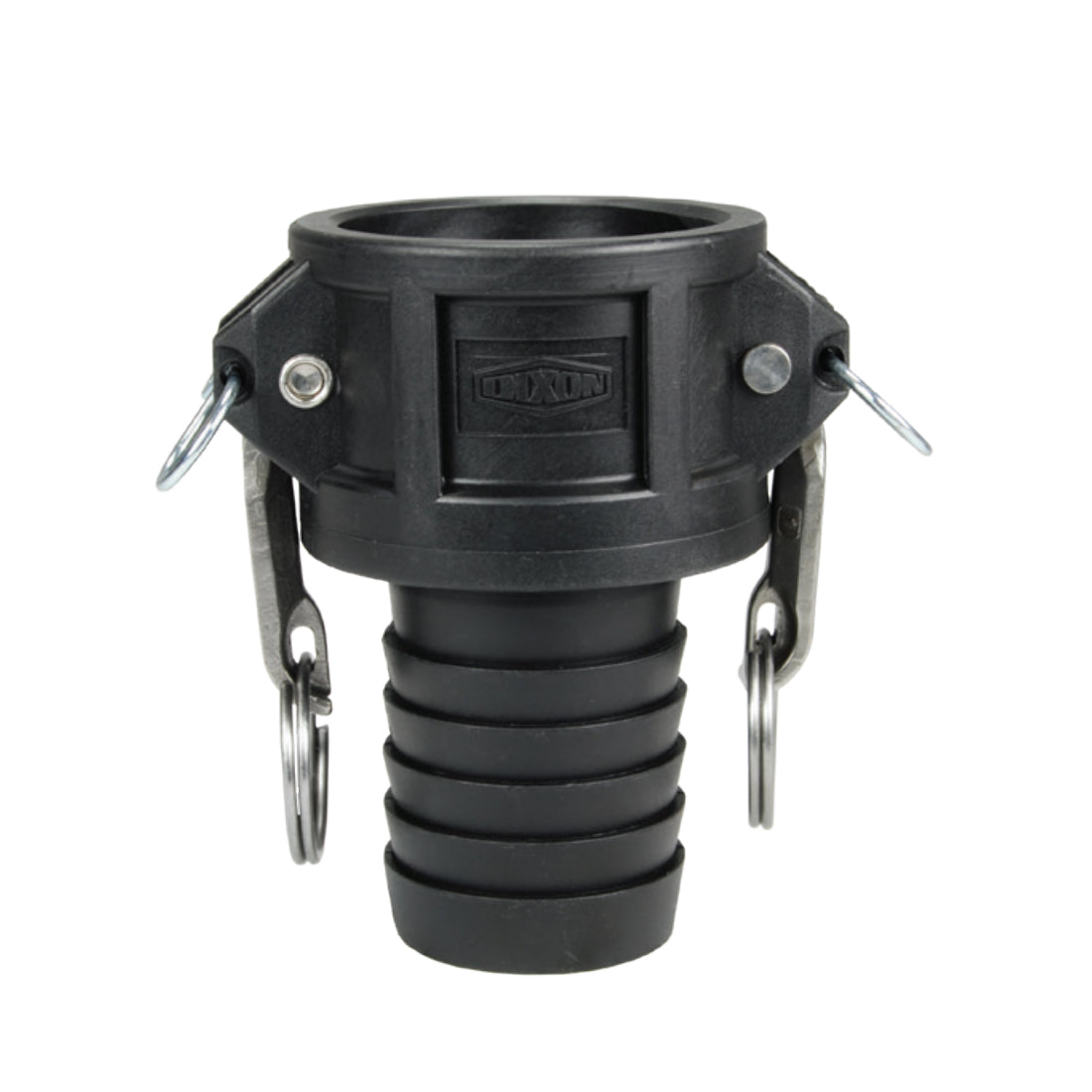

PPC200 - 2" Glass-Filled Polypropylene Type C Coupler x Hose Shank

In stock
SKU: PPC200
$15.08

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Dixon Valve PPC200 - 2" Glass-Filled Polypropylene Type C Coupler x Hose Shank

Features

  • 304 stainless steel handles
  • EPDM gaskets
  • 304 stainless steel pins
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Polypropylene cam and groove should not be mixed with metal fittings.
  • NOT recommended for use with PTFE gaskets
  • Maximum Operating Pressure: 100 psi
  • Weight: 0.55 lbs
  • Size: 2"
  • Seal: EPDM
