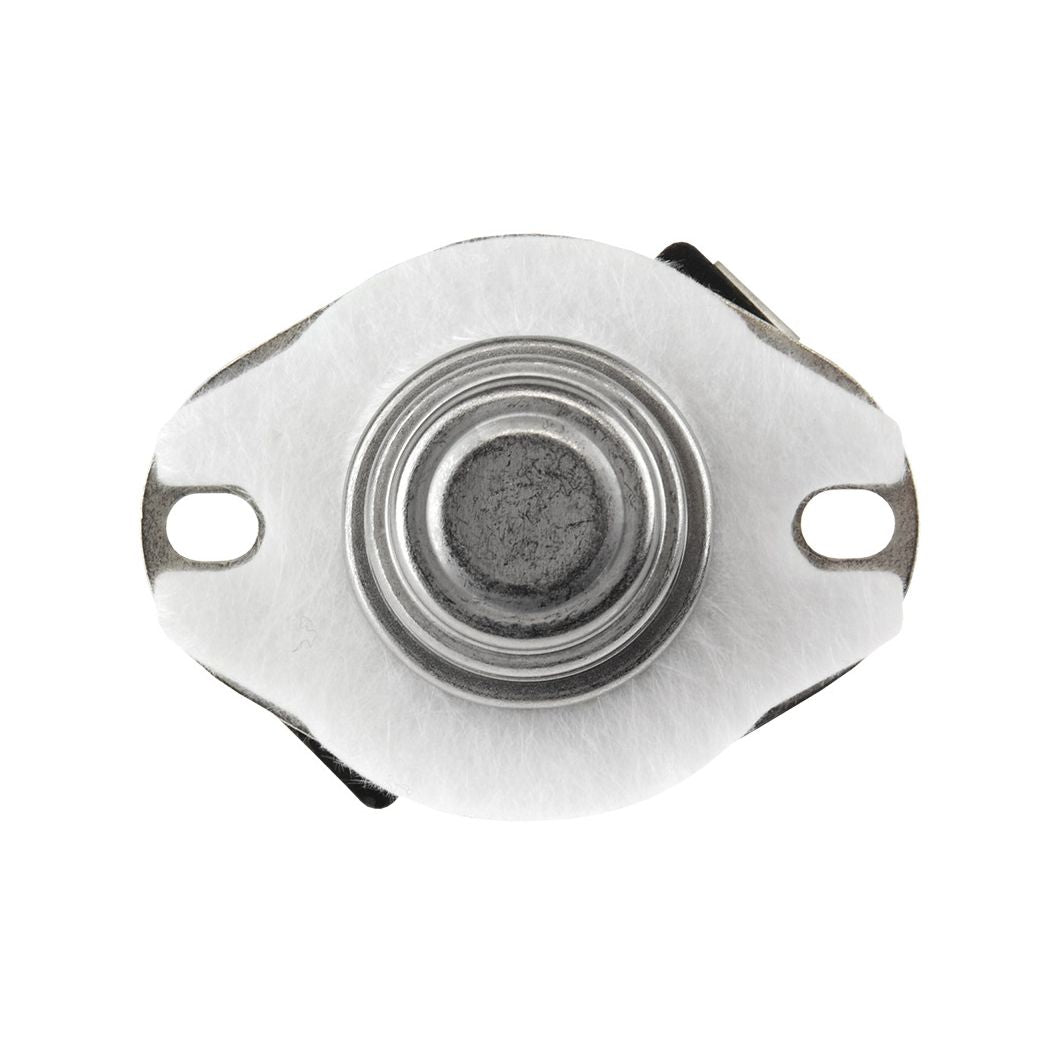

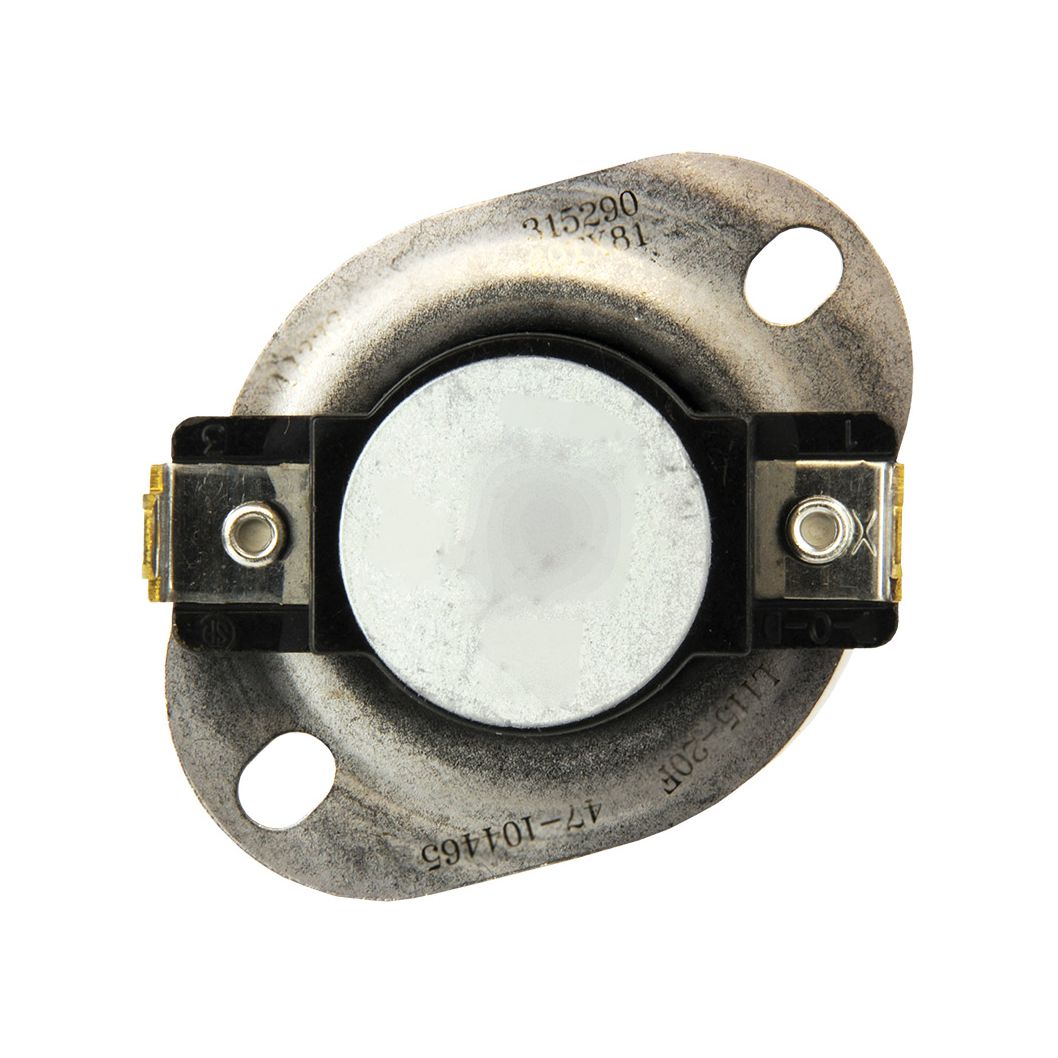

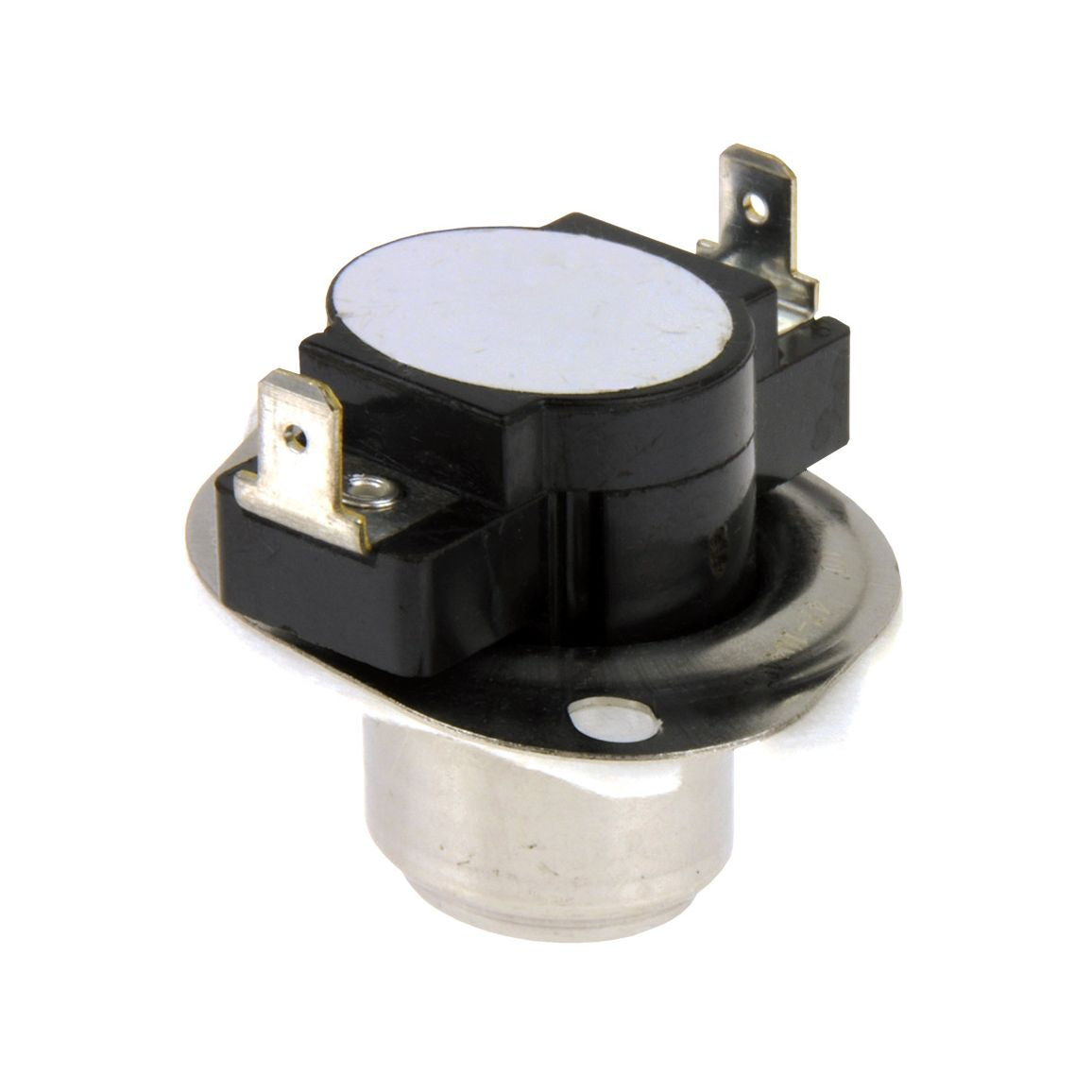

47-104465-01 - Limit Switch - Normally Closed - 95F Close - 115F Open - Auto Reset - 230VAC
1 review
In stock
Regular price
$13.11
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
N
Nick H. (Litchfield, US) Got just what I needed two thumbs up
Rheem 47-104465-01 - Limit Switch - Normally Closed - 95F Close - 115F Open - Auto Reset - 230VAC
Specifications
- TOD Switch Series: 60T
- Category: General Purpose
- Reset Mode: Auto
- No. of Poles: 1
- Switch Type: SPST
- Contact Orientation: Normally Closed
- Maximum Voltage Rating (VAC): 230
- Maximum Current Rating (A): 25
- Open Temperature (F): 115
- Tolerance Open Temperature (F): +/-5
- Close Temperature (F): 95
- Tolerance Close Temperature (F): +/-5
- Nominal Temperature Difference (F): 20
- Color Code: Yellow
- Disc Face: Enclosed
- Mounting: Flanged airstream
- Mounting Insertion Depth - Maximum (in.): 25/32
- Connections: 3/16 in. Quick Connects
Where Used
- R921T
- R921V
- R92PA
- R92TA
- R951T
- R951V
- R95PA
- R95TA
- R95TB
- R95TC-W95TC
- R962V
- R96PA
- R96TA
- R96VA
- R97MV
- R97V-KSA
- R97V-USA
- R98MV
- R98V-USA
