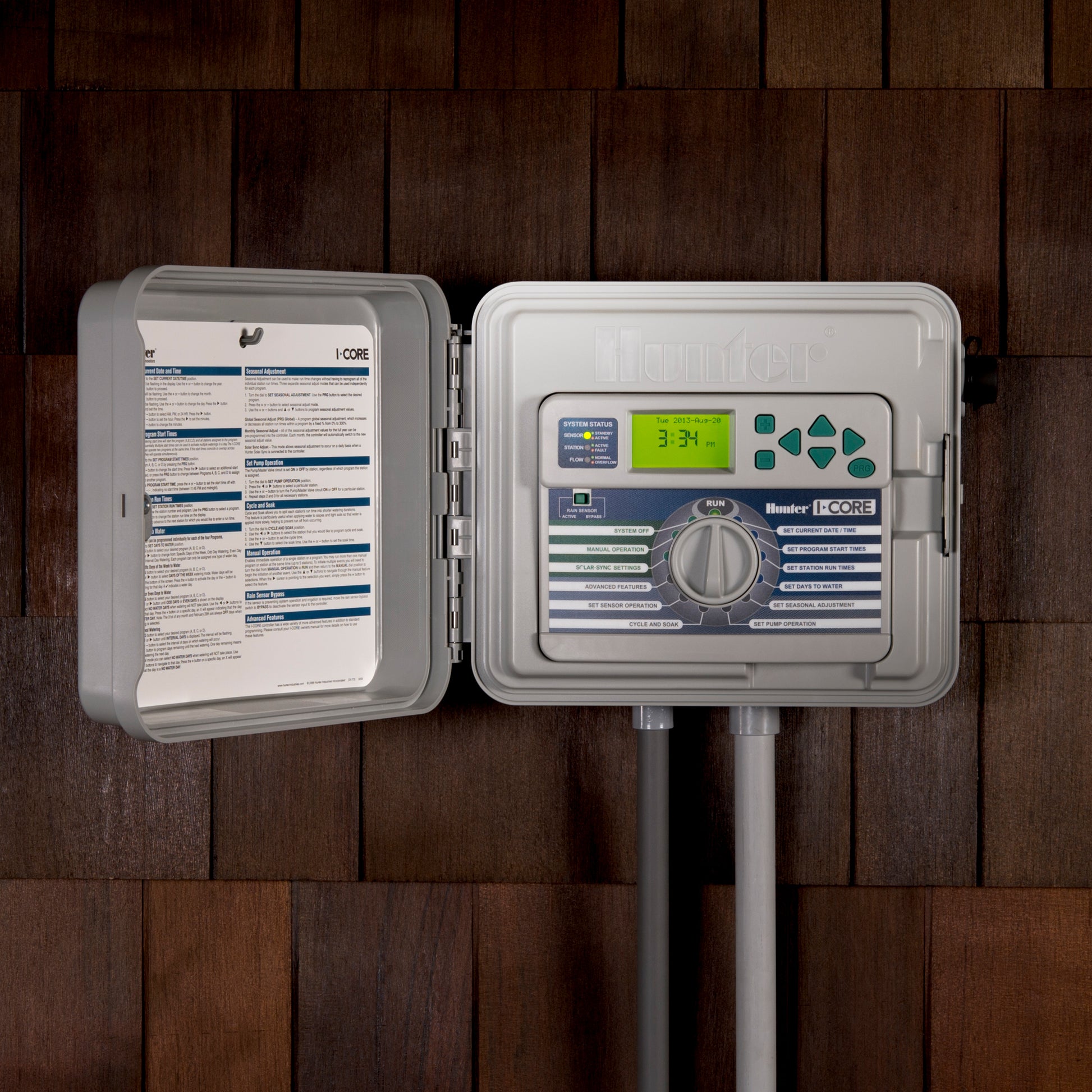

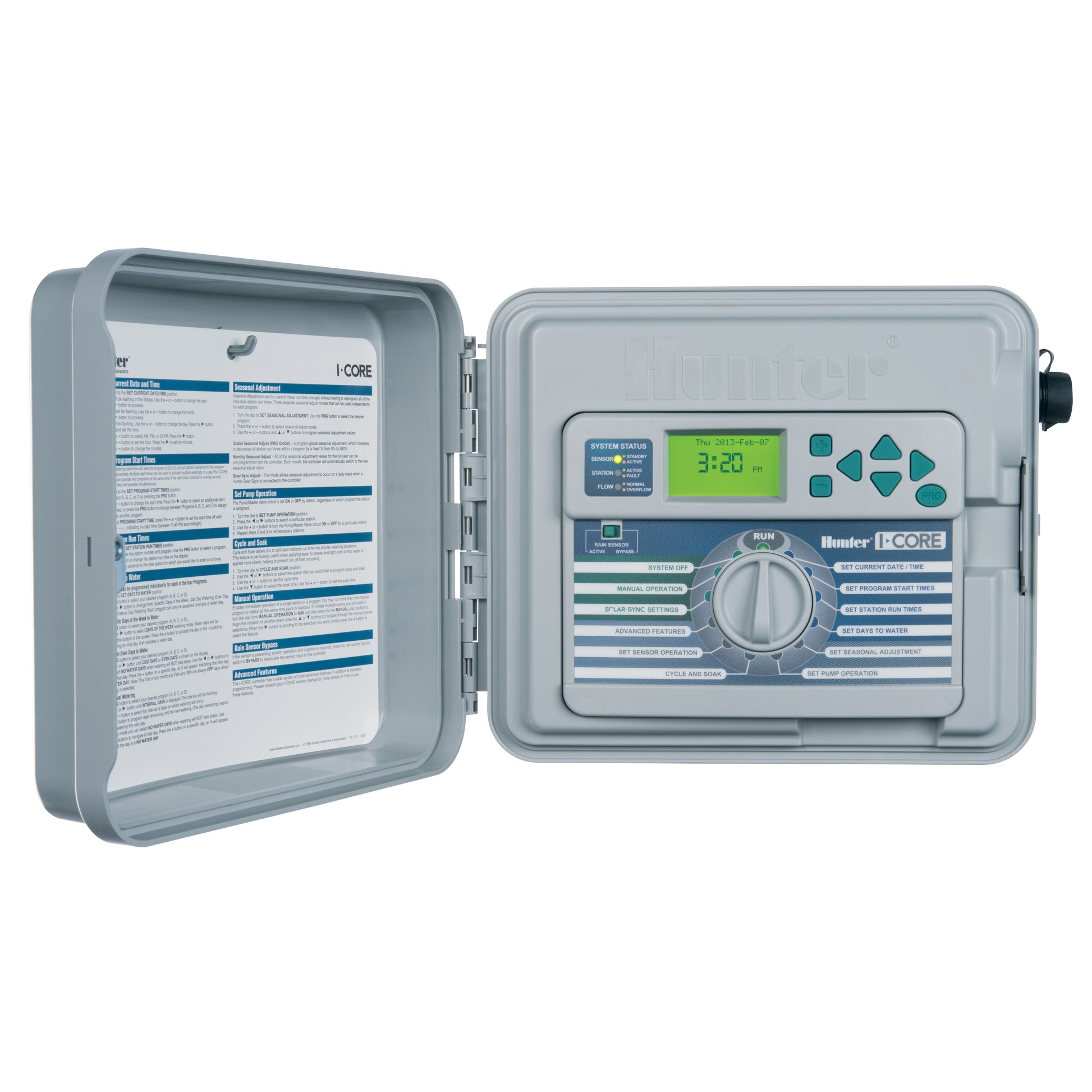

Hunter IC-600-PL - I-Core Commercial Irrigation Controller with Plastic Cabinet - 6 Station / Expandable to 30

The I-Core is Hunter’s controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation-focused Solar-Sync, I-Core’s possibilities are all but limitless.

Features

• Number of stations:
  • Conventional: 6 to 30
  • With DUAL decoder: up to 48
• 4 independent irrigation programs (8 start times each) allow for customized scheduling
• 12-hour maximum station run time provides flexibility for lower-flow zones
• Any 2 programs can operate simultaneously for more efficient watering
• Sensor inputs: 2
• 1 P/MV output for pump start relay and master valve activation
• Flow-monitoring capabilities provide real-time water usage data
• Programmable No Water Window prevents all irrigation for a specified time frame
• High-visibility, backlit display with 6 selectable languages

Specifications

• Height: 11"
• Width: 13-1/4"
• Depth: 6-1/4"
• Transformer input: 120/230 VAC
• Transformer output (24 VAC): 1.4 A
• Station output (24 VAC): 0.56 A
• P/MV output (24 VAC): 0.28 A
• Warranty period: 5 years

Related Video: I-Core Controller Product Guide
