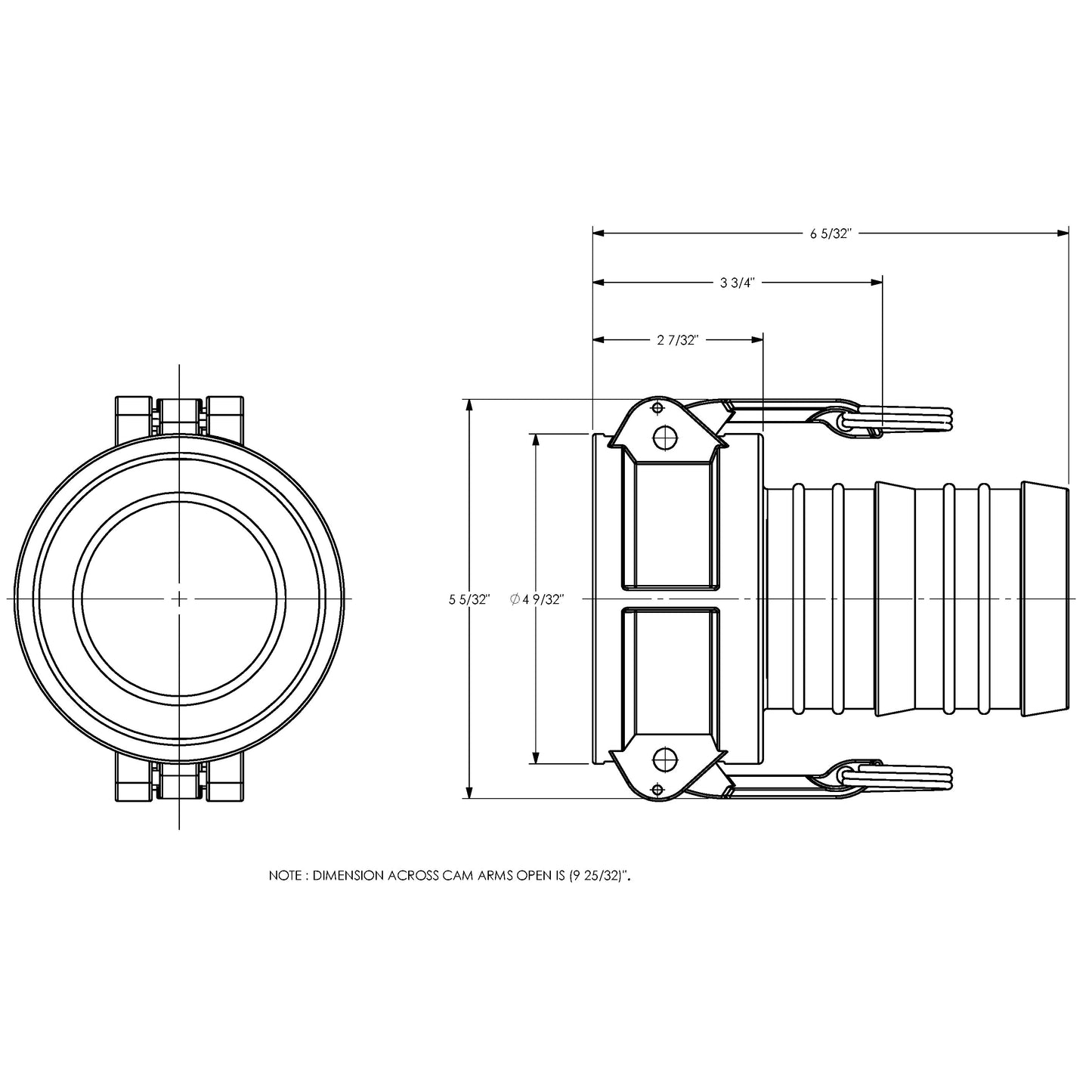

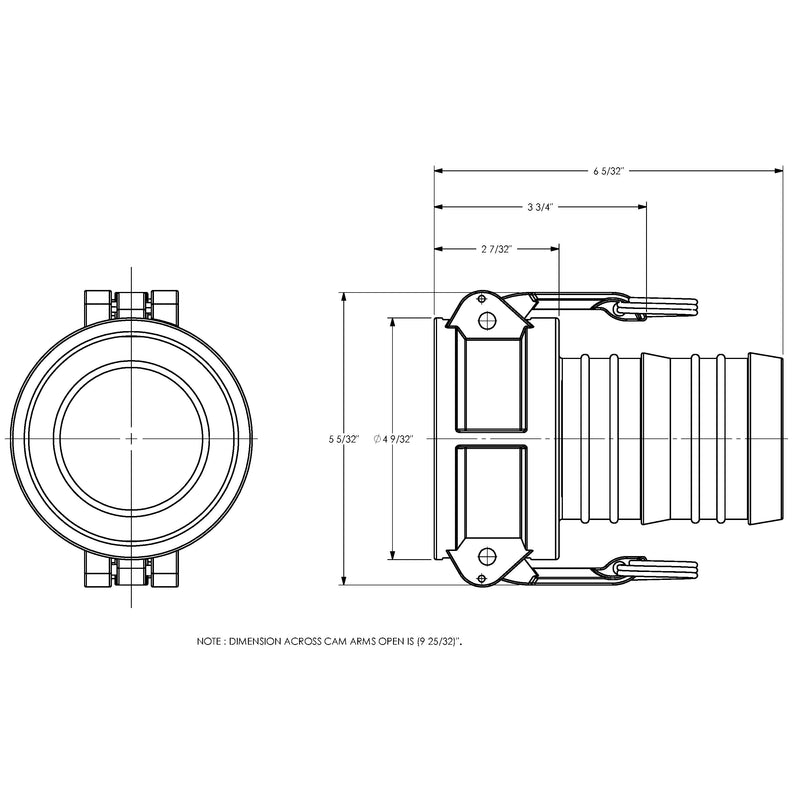

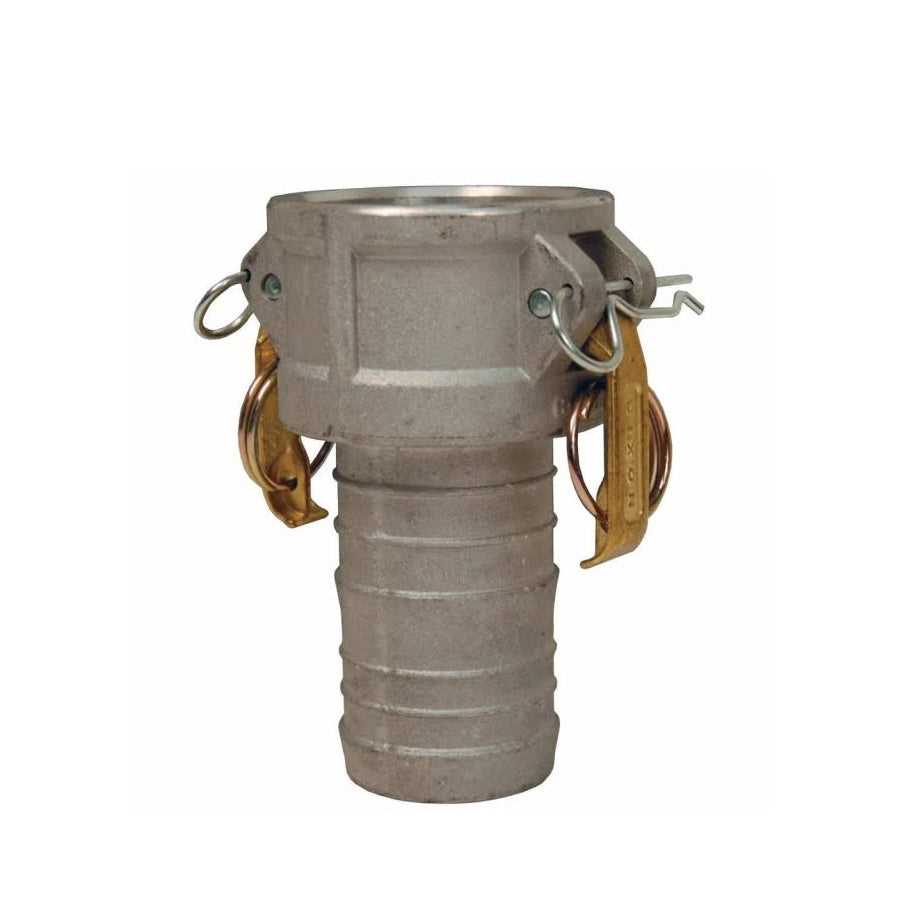

Dixon Valve G300-C-AL - 3" Aluminum Cam & Groove Global Type C Coupler x Hose Shank

Features

  • Cam & Groove Global Type C Coupler
  • Coupler x Hose Shank
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Designed to interchange with all products produced to A-A-59326D
  • Maximum Operating Pressure: 125 psi
  • Weight: 1.72 lbs
  • Size: 3"
  • Material: A380 Permanent Mold Aluminum
  • Component Material: Brass Handle
  • Seal: Nitrile Rubber
