Electronic Thermostat for Pipe Freeze Protection
No reviews
In stock
Regular price
$266.38
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

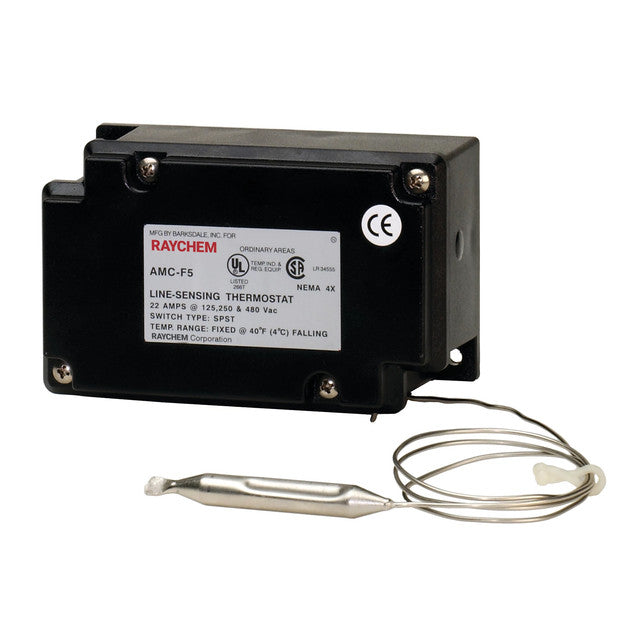

Specification Sheet nVent RAYCHEM AMC-F5 Electronic Thermostat for Pipe Freeze Protection
nVent RAYCHEM AMC-F5 is a thermostat for pipe freeze protection heat tracing applications in non-hazardous locations. It has a fixed set point of 40 °F/5 °C, used in either ambient or surface sensing modes, it can control a single heat tracing circuit or switch multiple circuits through a contactor.
Features
- Simple to install and operate, single cable entry through 3/4" (19 mm) through hole
- Energy saving, ambient or line sensing control thermostat
- Electrical rating and switch: 22 A at 125/250/480 VAC, SPST switch
- Enclosure: TYPE 4X, UV-resistant, thermoplastic
- Reliable during long life: 2 year product warranty available, maintenance free
Specifications
- Catalog Number: 031661-000
- Thermostat Type: Electronic
- Material: Thermoplastic
- NEMA Rating: 4X
- Supply Voltage: 120 - 480 V
- Current Rating: 22 A
- Fixed Temp Set Point: 40 degrees F
- Height: 5.2"
- Width: 3.2"
- Depth: 2.5"
