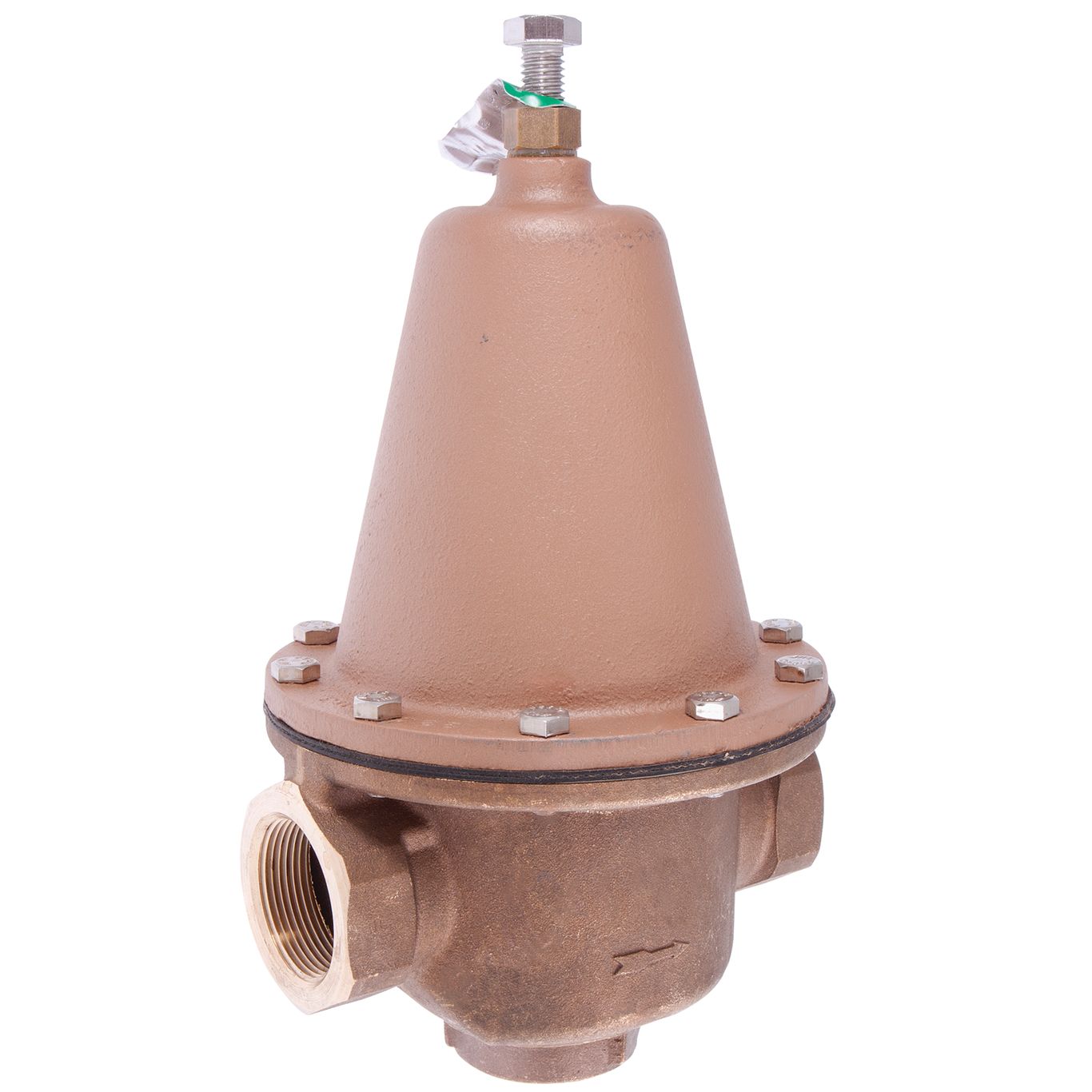

2 1/2 In Lead Free Iron High Capacity Water Pressure Reducing Valve

This 2 1/2 inch high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features an iron body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 psi (172 to 517 kPa).

Features

• Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
• High temperature resisting diaphragm for hot or cold water
• Lead free iron body construction
• Serviceable in line
• Enlarged diaphragm, spring cage and seat orifice for high capacity performance
• Sensitive spring and large diaphragm for accurate pressure control
• Maximum working pressure 300 psi (20.7 bar)
• Sealed spring cage
• NPT threaded female inlet by NPT threaded female outlet connections
