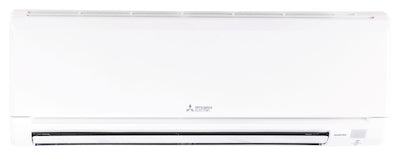

Ductless Mini Split MSZ-GL12NA-U1 12,000 BTU Wall Mounted Heat Pump Air Handler

The heat pump air conditioning system shall be a Mitsubishi Electric MSY-GL split system series. The system shall consist of a slim silhouette, compact, wall mounted indoor fan coil section with wireless remote controller and a slim silhouette horizontal discharge outdoor unit which shall be of an inverter driven heat pump design.

1.02   Quality Assurance

• The units shall be tested by a Nationally Recognized Testing Laboratory (NRTL) and shall bear the ETL label.
• All wiring shall be in accordance with the National Electrical Code (N.E.C.).
• The units shall be rated in accordance with Air-conditioning, Heating, and Refrigeration Institute’s (AHRI) Standard 240 and bear the AHRI Certification label.
• The units shall be manufactured in a facility registered to ISO 9001 and ISO 14001, which is a set of standards applying to environmental protection set by the International Standard Organization (ISO).
• A dry air holding charge shall be provided in the indoor section.
• System efficiency shall meet or exceed 20.5 SEER when part of a 1:1 (indoor/outdoor) system.
• Delivery, Storage and Handling
  • Unit shall be stored and handled according to the manufacturer’s recommendations.
  • The hand held wireless controller shall be shipped inside the carton with the indoor unit and able to withstand 105°F storage temperatures and 95% relative humidity without adverse effect

General Information

• Wireless Controller: Yes
• Cool (BTU/H): 12000
• Heat (BTU/H): 14400
• Seer: 23.1
• HSPF: 12.5
• Energy Star: Yes
• Sound Level: 19
• I-See Sensor: No
• Control: All
• Filter Type: A,N
• Fan Speed: 5 Speed
• Timer: 24H
• Wall Mounted Heating and Cooling
