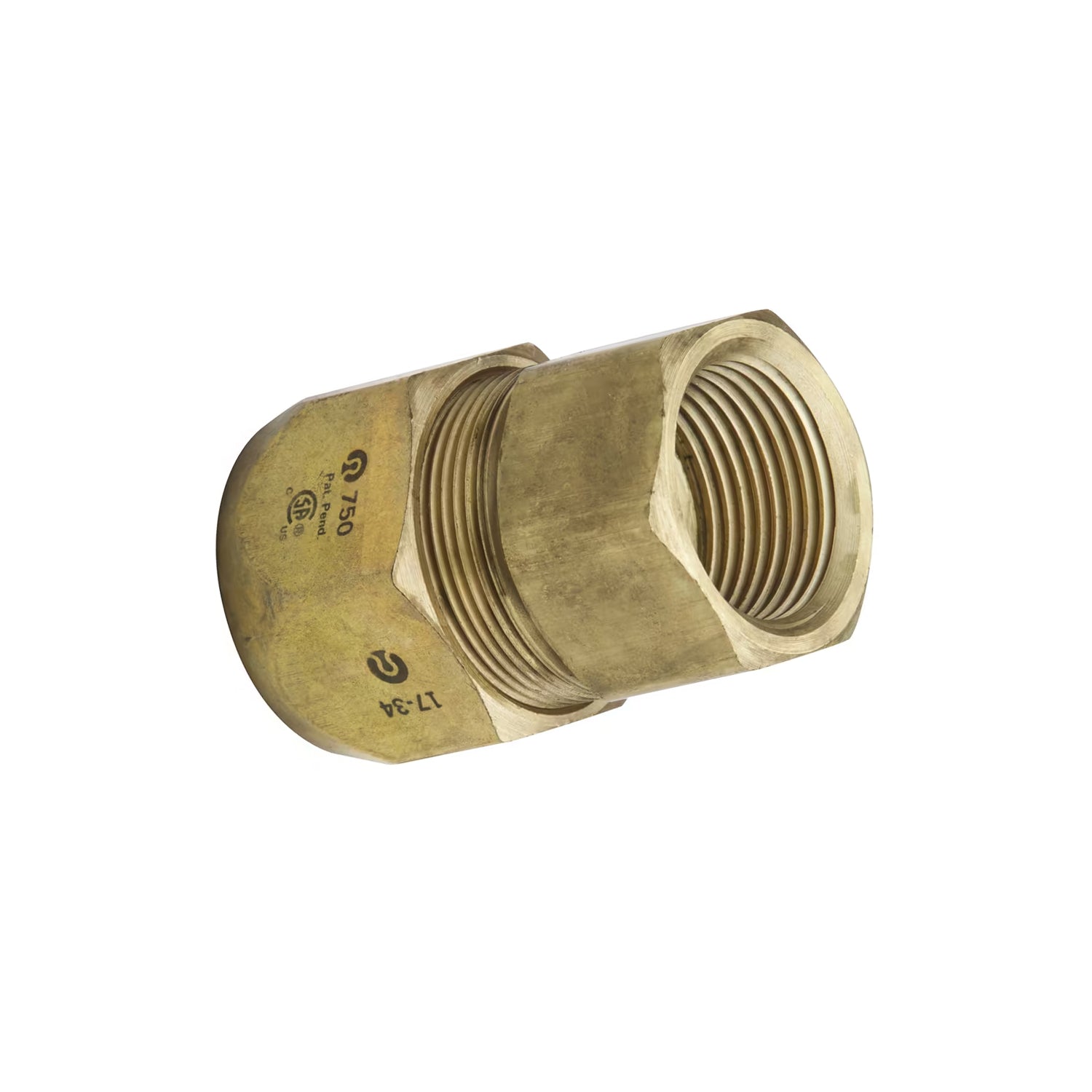

FGP-SFSTF-750 - AutoSnap Female Straight Snap-on Fitting for TracPipe CounterStrike - 3/4" FNPT

Out of stock
SKU: FGP-SFSTF-750
Regular price $26.79

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Submittal Sheet

OmegaFlex Catalog

Design & Installation Guide

FGP-SFSTF-750 - AutoSnap Female Straight Snap-on Fitting for TracPipe CounterStrike - 3/4" FPT

In 2014, OmegaFlex introduced the AutoSnap fitting for CounterStrike that is so easy to use you can even keep your gloves on, just twist, snap, tighten and you’re done!

Features

  • Application Information: Transition fitting between TracPipe or CounterStrike Tubing and NPT thread. Fitting thread is Female NPT. For use indoors, outdoors, and concealed location applications.
  • AutoSnap Female Straight 3/4"
  • The new patent pending AutoSnap fittings are the only CSST fittings that do not require any disassembly or reassembly of the fitting to the CounterStrike CSST.
  • This greatly reduces installation difficulty and time as there are no small loose gaskets, O-rings, or retainer rings to contend with in a dark and/or cold work place environment!
  • AutoSnap is CSA listed and features a metal to metal cup seal without any exposed stainless steel pipe behind the new fitting.
  • Reduced torque value and reusability all make for an optimum installer friendly fitting

Specifications

  • Materials: Nut, Adapter and Snape Ring: Yellow Brass
  • Specification Operating Pressure: 25 PSIG
  • CSA International Evaluation Report - Max Operating Pressure: 3/8" through 1-1/4": 125 PSIG
  • Operating Temperature Range (used with tubing): -20 to 200 degrees F
  • Codes: ICC Codes (IFGC, IRC, IMC), NFPA 54 / ANSI Z223.1, UPC, CAN/CSA B149.1, NFPA 58
  • Standards: ANSI LC1 / CSA 6.26, ANSI Z223.1
  • Listings: CSA, ICC PMG 1046 / 1052, IAPMO(UPC) File No. 4665




PTRAC10003
