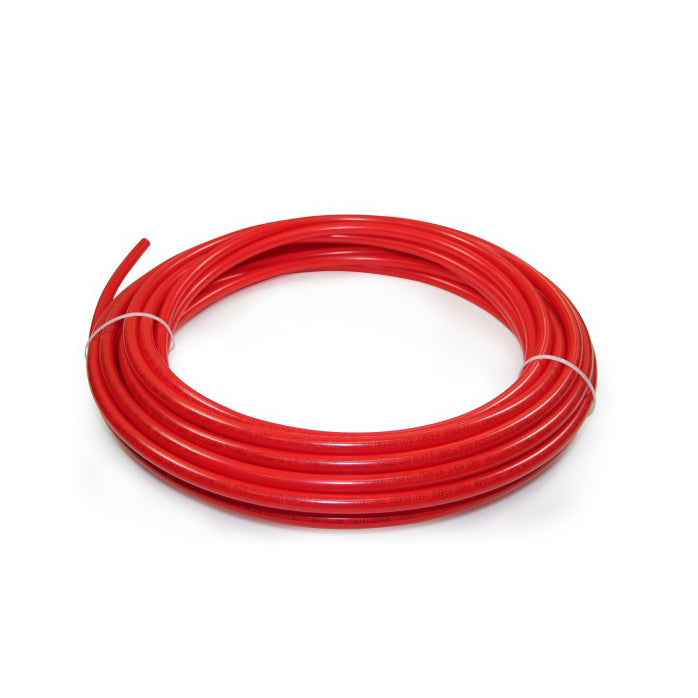

F2040500 - 1/2" AquaPEX Red Coil - 100 Ft
Regular price
$71.36
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day and deliver in 3-4 business days!
Freight deliveries require extra time to arrange pickup & delivery.
Call Us! Have questions or want to order by phone? (800) 468 5997
Submittal SheetUponor F2040500 - 1/2" AquaPEX Red Coil - 100 Ft
Uponor AquaPEX red tubing is used primarily for hot potable-water distribution, but can also be used in radiant heating and cooling systems containing no ferrous corrodible components or where ferrous components are isolated from the tubing.
Features
- Part Name: 1/2" Uponor AquaPEX Red, 100-ft. coil
- Part Number: F2040500
- Coil Outer Diameter: 23.50"
- Coil Inner Diameter: 15.75"
- Pipe Outer Diameter: 0.625"
- Pipe Inner: Diameter: 0.475"
- Codes: IMC | UPC | IBC | IRC | NBC of Canada | IPC | UFGS | NPC of Canada | UMC | NSPC
- Standards: ASTM F1960 | ASTM E119/UL 263 | ASTM F876 | ASTM E84 | ASTM F2023 | ASTM E814/ULC S115 | ASTM F877 | CSA B137.5 | ULC S102.2 | CSA B214 | NSF-61 | ULC S101 | NSF-14
- Listings: IAPMO-ES | ICC-ES-PMG | cNSFus-pw | CCMC | PPI TR4 | CSA | UL | U.P.Code | cQAIus P321 | HUD MR 1269 | BMEC
- Temperature / Pressure Ratings:
- 73 degrees F at 160 psi (11 bar)
- 180 degrees F at 100 psi (6.9 bar)
- 200 degrees F at 80 psi (5.5 bar)
