DMF300 - Pressure Pal Digital Mini System Feeder - 17 Gallon

In stock
SKU: DMF300
Regular price $697.95

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jennifer D. (Branford, US)

I checked with the Project Manager and he is happy with the product.

DMF300 Brochure

Installation, Operation & Maintenance

Specification Sheet

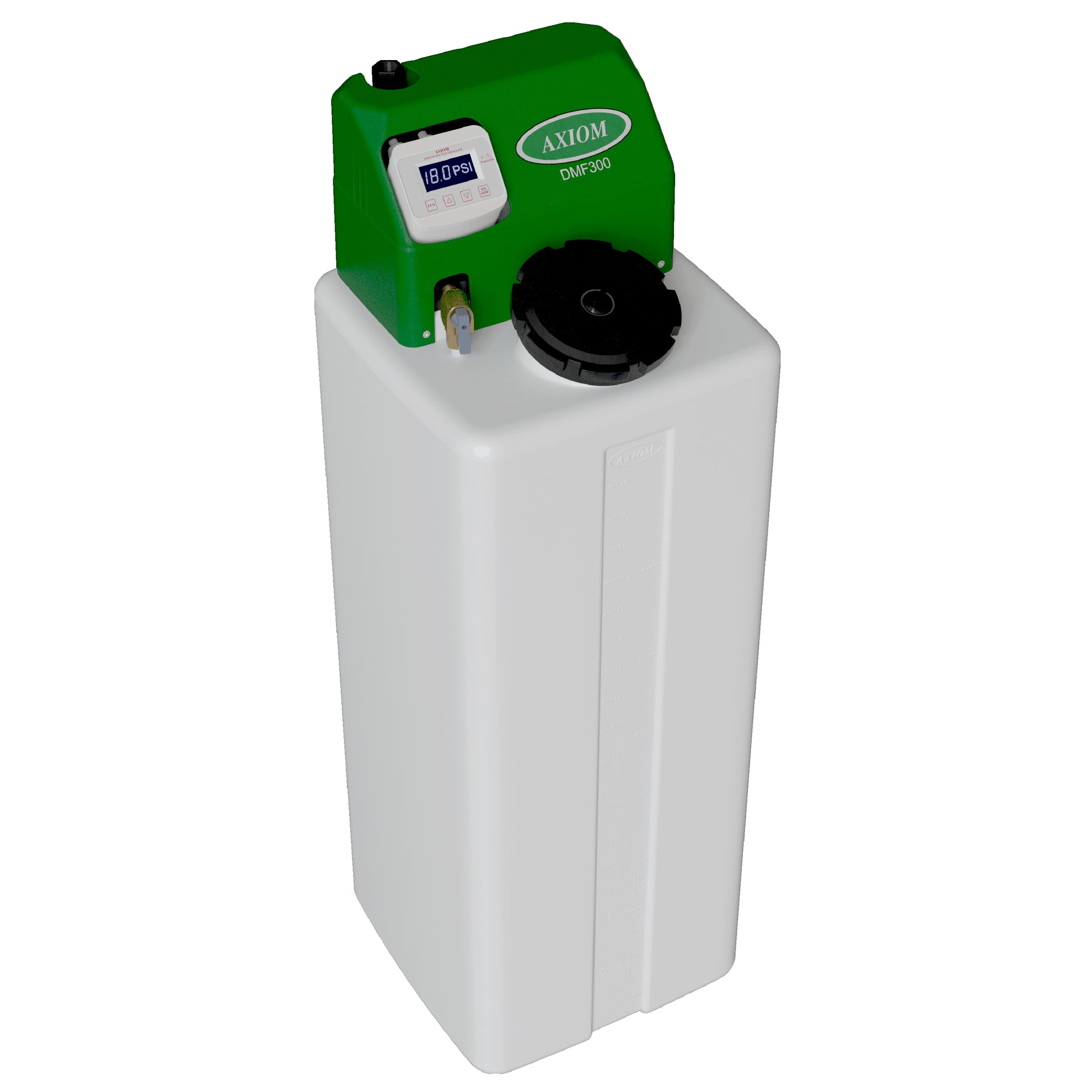

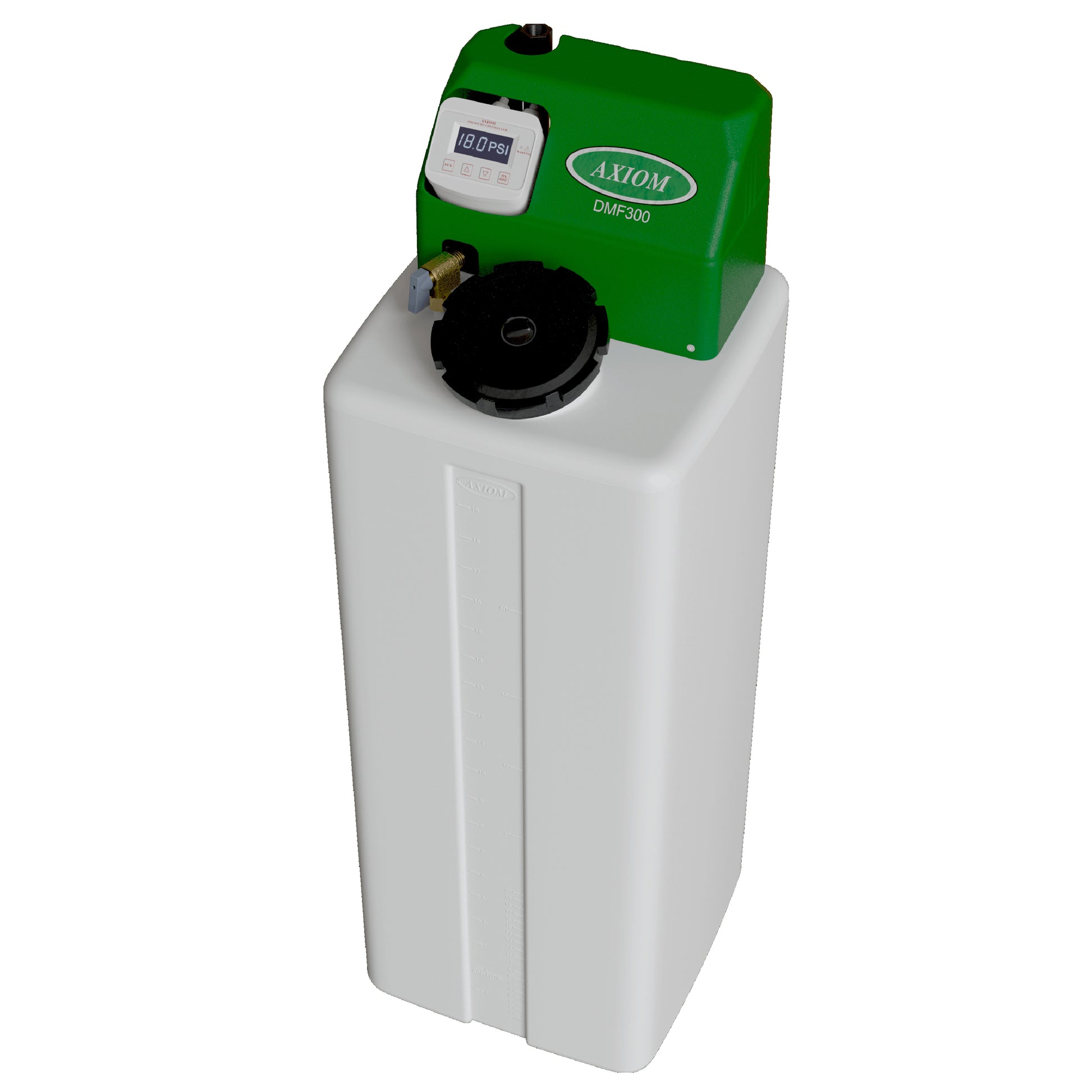

Axiom DMF300 - Pressure Pal Digital Mini System Feeder - 17 Gallon

The industry leader for pressurizing closed-loop hydronic systems introduces the newest "PRESSURE PAL" to the Axiom Product Family. The DMF150 utilizes a digital pressure control (0-45 psig) with electronic alert contacts. The tank design incorporates a wall bracket connection that comes standard in the box. Front fill point makes fluid handling a simple process.

Features

  • 17 Gallon tank for storage and mixing (64 Liter)
  • All features shown on user friendly digital display screen
  • 0-45 psig Pressure Setpoint with adjustable dead band
  • N.O./N.C. Alert contacts and LED light enabled when low level, low pressure, or high-pressure condition
  • Integrated Easy Connect Wall Mount Bracket comes with the unit
  • Tilted 5" easy fill access on front of tank
  • UL listed Power supply plugs into any standard 115 VAC outlet
  • Diaphragm pump can run dry without damage
  • No direct connection to potable water supply eliminates need for backflow prevention
  • Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
  • Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low
  • Diverter valve allows easy purging of air on initial start-up, and manual mixing of solution
  • Fluid drained for service can easily be put back into the system
  • Prevents major floods
  • Provides leak detection

Related Video: Axiom DMF150 Hydronic System Feeder Overview

Related Video: Axiom DMF Series System Feeder Start Up Procedure

Related Video: Axiom DMF Quick Pressure Adjustment




RAXM123021
