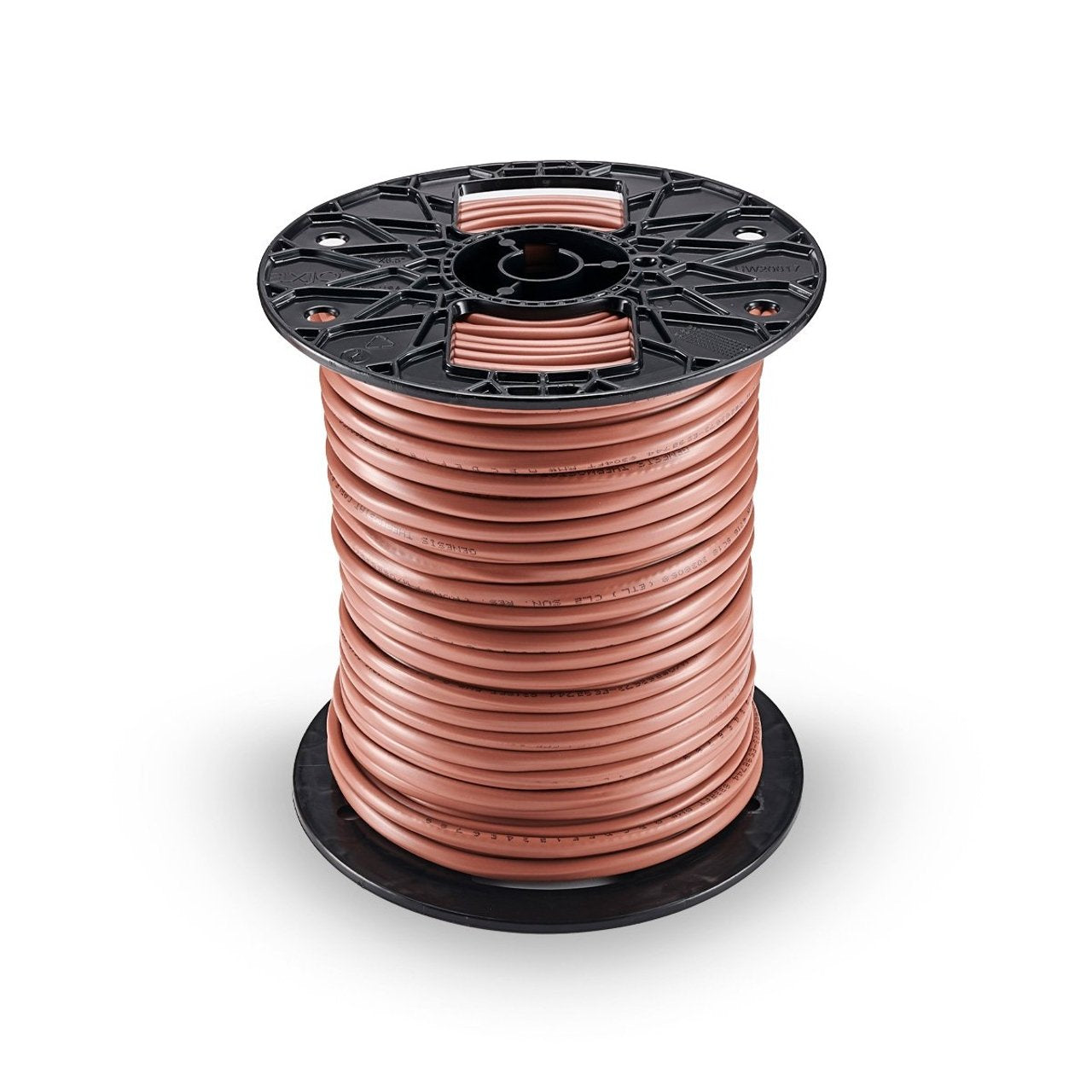

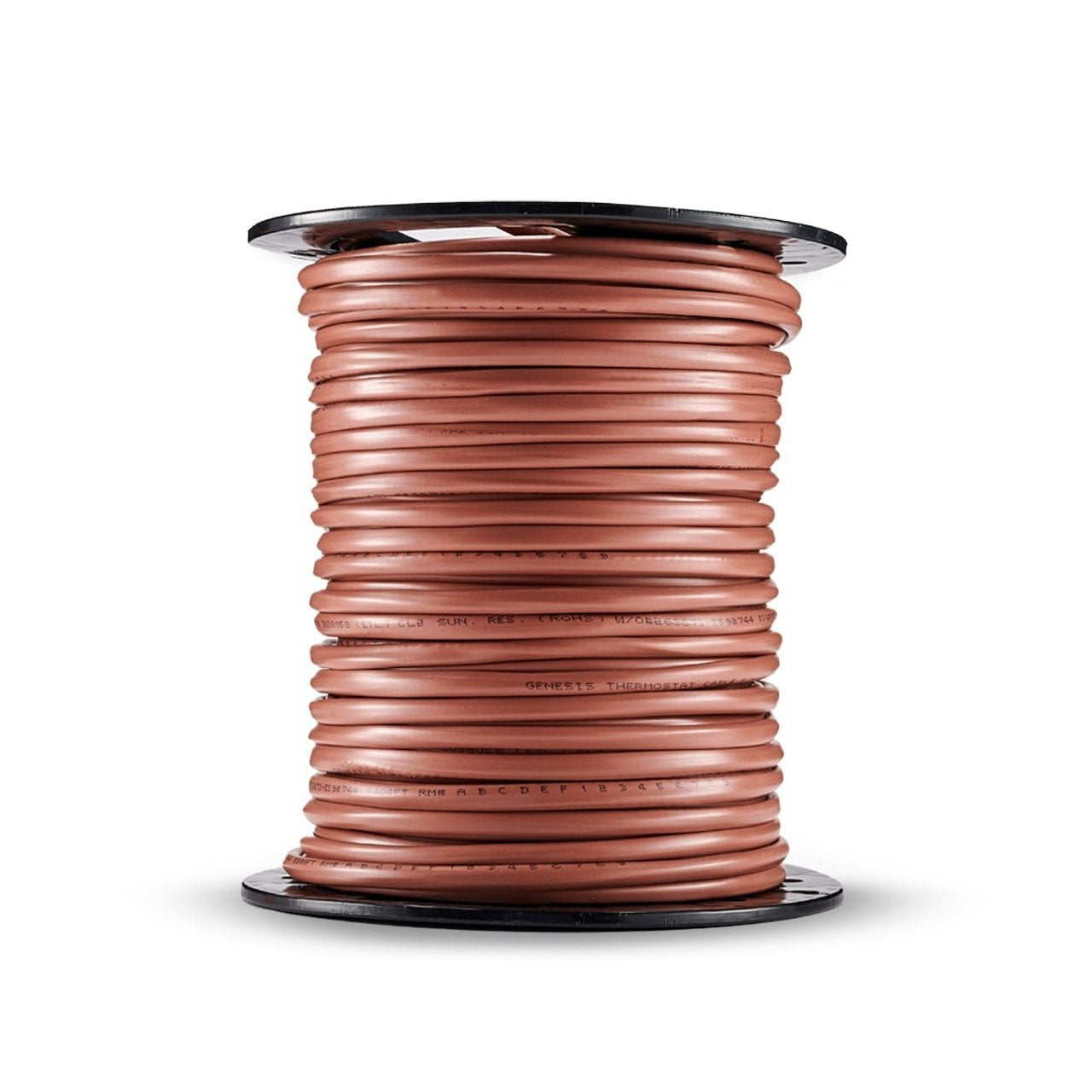

47150307- 18/7 CL2 Genesis Thermostat Cable - 250 Ft Reel

In stock
SKU: 47150307
Regular price $138.80

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification Sheet

Honeywell Resideo 47150307- 18/7 CL2 Genesis Thermostat Cable - 250 Ft Reel

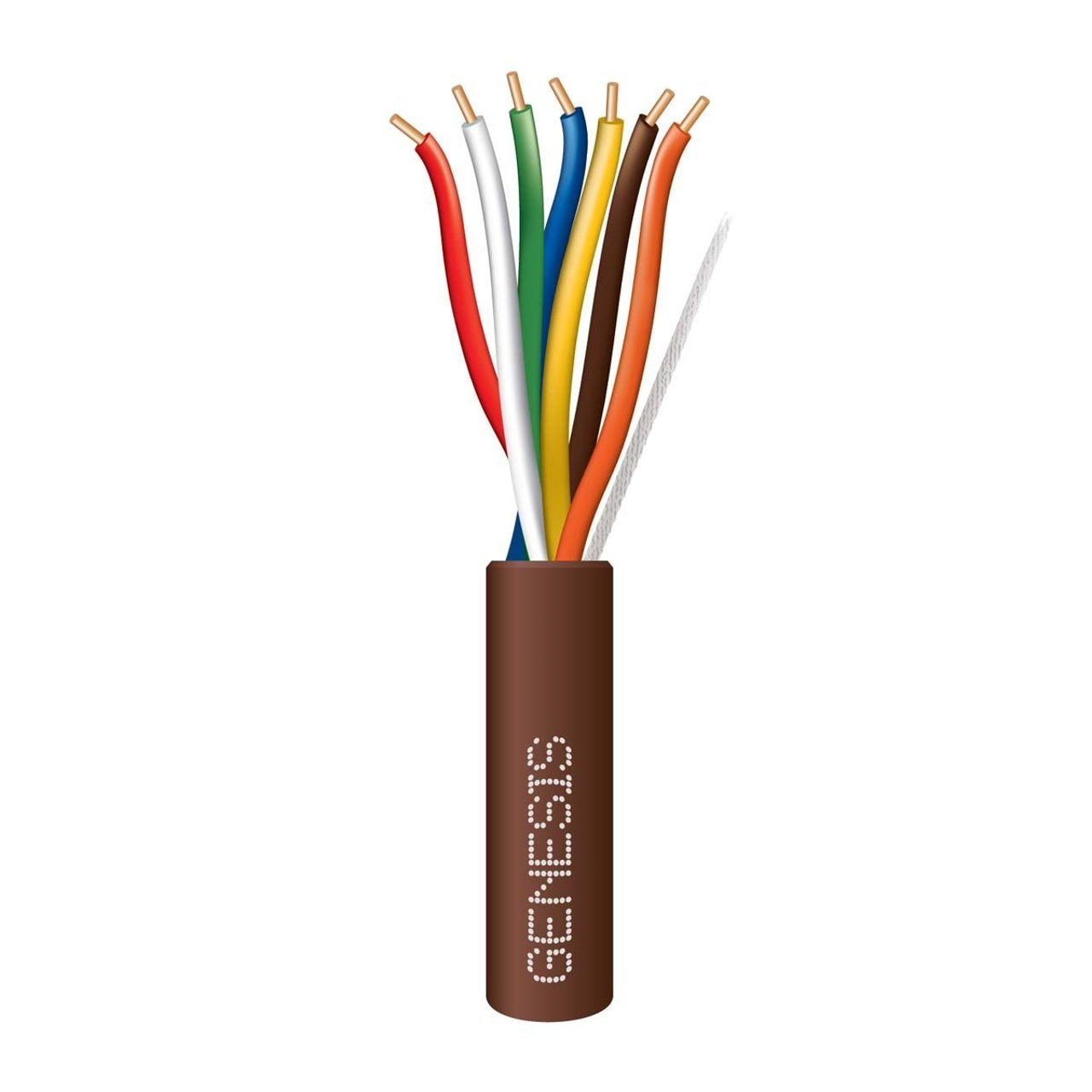

This Genesis cable features 7 solid 18 AWG copper conductors and a general purpose rating. Choose this cable for a dependable thermostat wiring solution.

Features

  • Cable Rating: General Purpose
  • Cable Listing: CL2, Sunlight Resistant
  • Wire Gauge (AWG): 18
  • Solid or Stranded: Solid
  • Number of Strands: 1
  • Conductor Material: Bare Copper
  • Number of Conductors: 7
  • Conductor Insulation Material: Polypropylene
  • Insulation Colors: Red, White, Green, Blue, Yellow, Brown, Orange
  • Shielding: No
  • Rip Cord: Yes
  • Jacket Material: PVC
  • Nominal Outer Diameter: 0.188"
  • Rated Voltage (Max): 150 Volts
  • DC Resistance (Max): 6.52 Ohms / 1000 ft. at 20 Degrees C
  • Capacitance (Nominal): 22.8 pF / ft.
  • Impedance (Nominal): 67 Ohms
  • Velocity of Propagation: 67%
