100P2 - 2" Century Plus Irrigation Valve - Internal Bleed - Flow Control - 100 Series

In stock
SKU: 100P2
Regular price $185.90

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

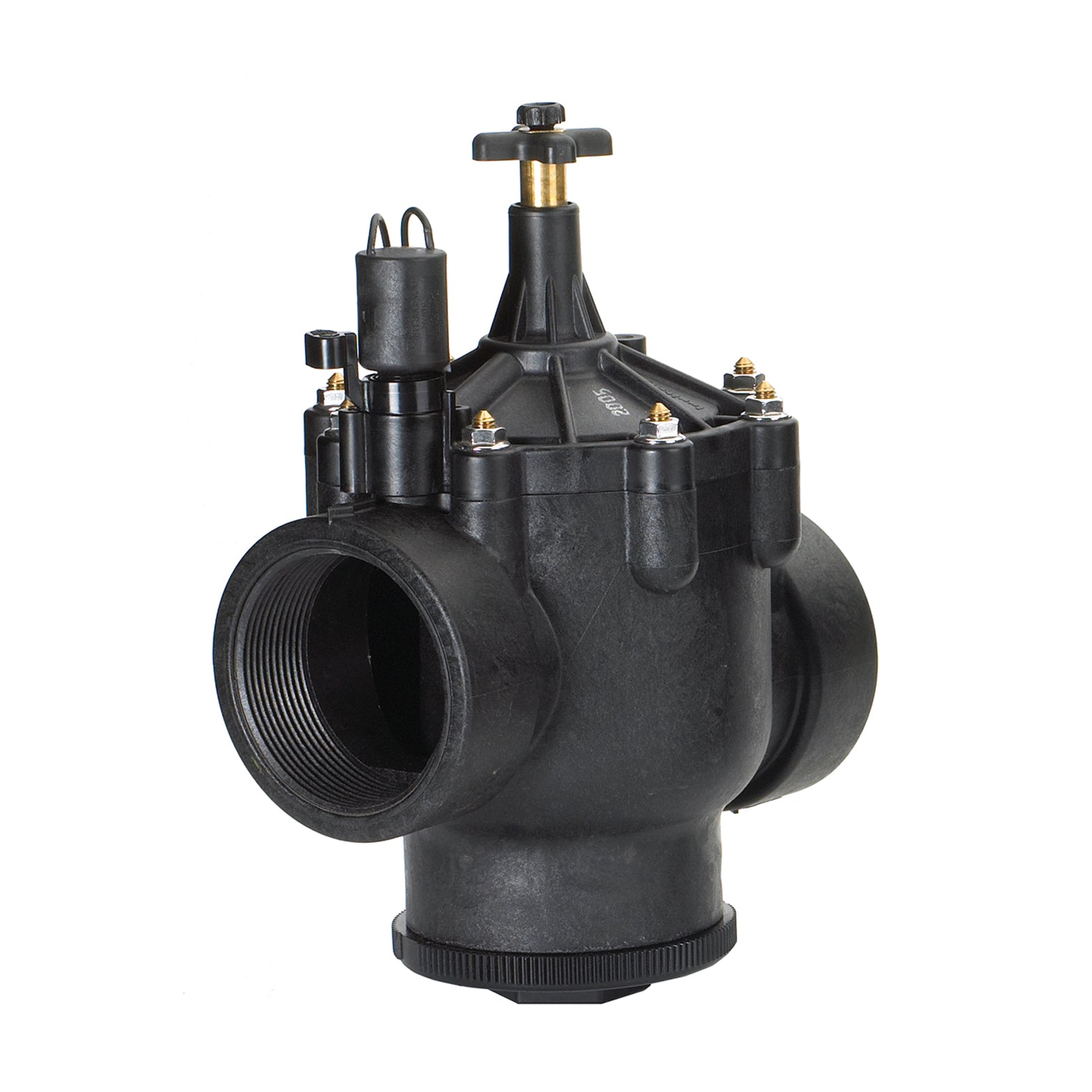

Irritrol 100P2 - 2" Century Plus Irrigation Valve - Internal Bleed - Flow Control - 100 Series

The Irritrol 100 Series (Century PLUS) is an excellent example of a good valve getting better. Tracing its origin to the highly popular Century Series, the 100 Series delivers reliable performance with a host of enhanced features. Offered in a globe/angle configuration with sizes ranging from one to three inches, the 100 Series features a pressure range of 20-220 psi, optional modular pressure regulation, stainless steel metering, internal and external bleed, a nylon-reinforced EPDM double-beaded diaphragm and an anti-contamination design for dirty water applications (available on all 102 Models).

Features:

  • 150-mesh external control water filter and three-way solenoid - Provides non-continuous metering for recycled water applications
  • 220 psi pressure rating - Prevents water hammer and system damage in high-pressure installations
  • Accepts OmniReg modular pressure regulator - Ensures consistent performance
  • Tough, glass-reinforced nylon, stainless steel and brass construction - Withstands high temperatures and system surges under pressure for long-term reliability
  • Control water filter - Allows easy external service
  • Externally removable self-cleaning metering system - Ensures consistent performance in recycled-water applications
  • Internal and external bleed (flush mode) - Allows for manual operation
  • 5-year warranty

Specifications:

  • Flow Range: 5-300 GPM
  • Holding Current: .2 amp (102 models: .24 amp)
  • Holding Volt-Amp: 24 V ac-4.8 VA
  • Inrush Current: .4 amp (102 models: .48 amp)
  • Inrush Volt-Amp: 24 V ac-9.6 VA
  • Solenoid: 24 V ac

Dimensions:

  • Height: 9-1/2"
  • Width: 6-1/8"
  • Depth: 7-3/4"
